Product description

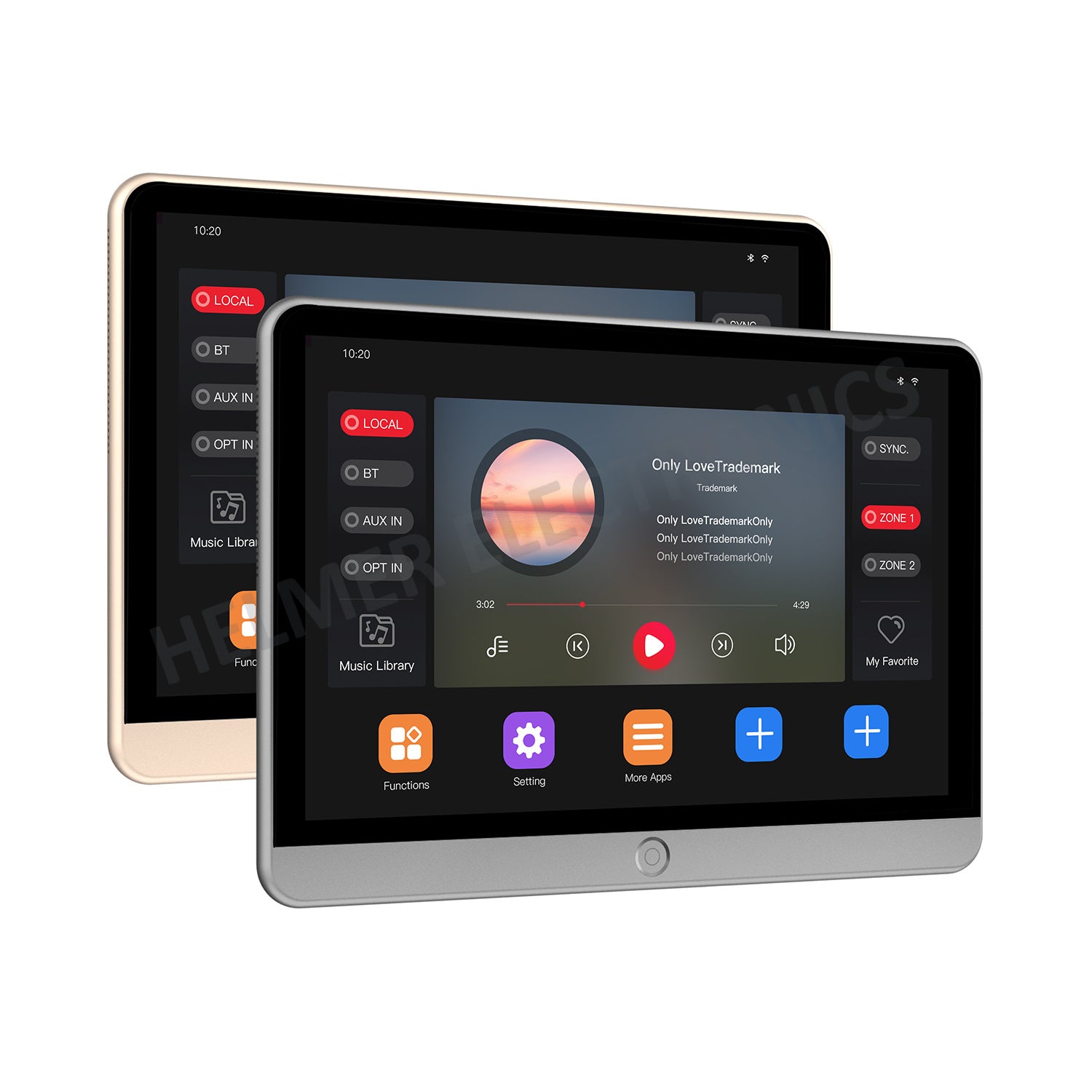

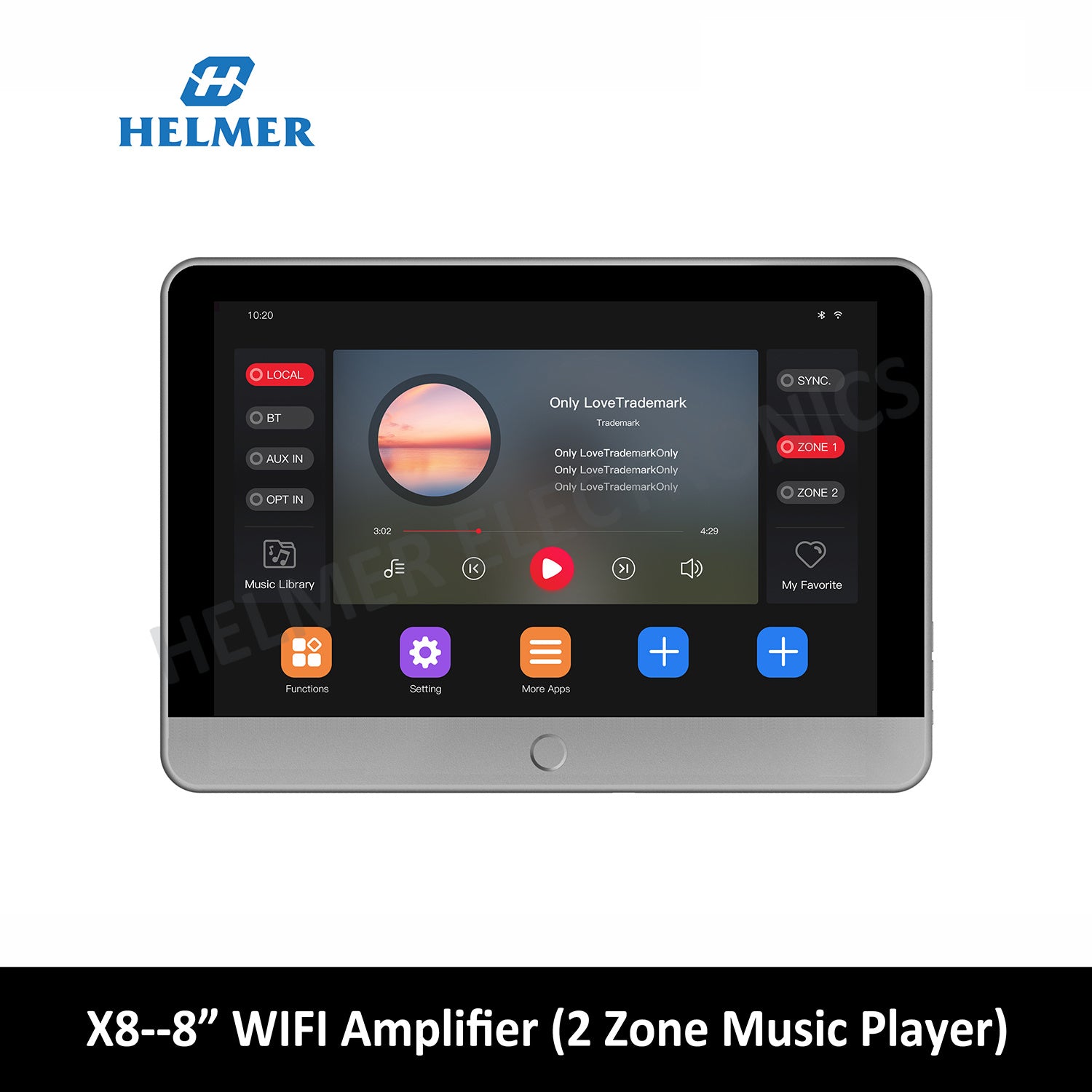

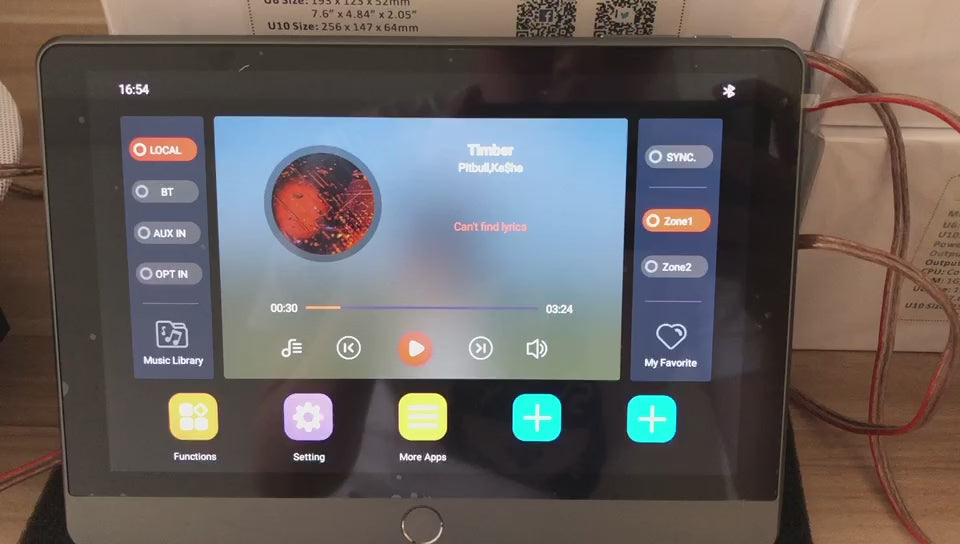

-It’s integrated audio amplifier with 8” touch screen tablet as control panel.
-It can connect with up to 8 speakers for 2 zone control. And for each zone, you can play different audio source or you can synchronize 2 zones to play same music.

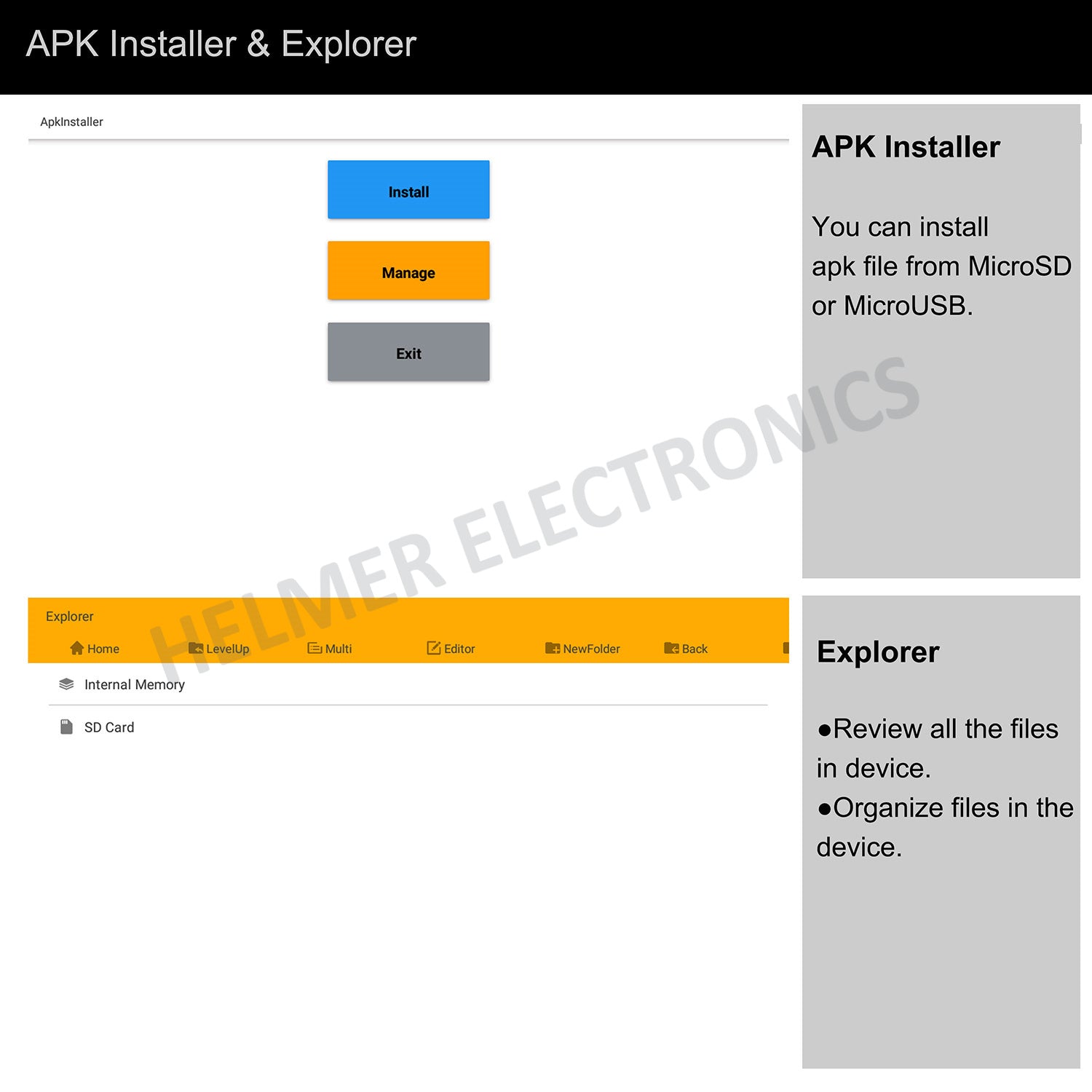

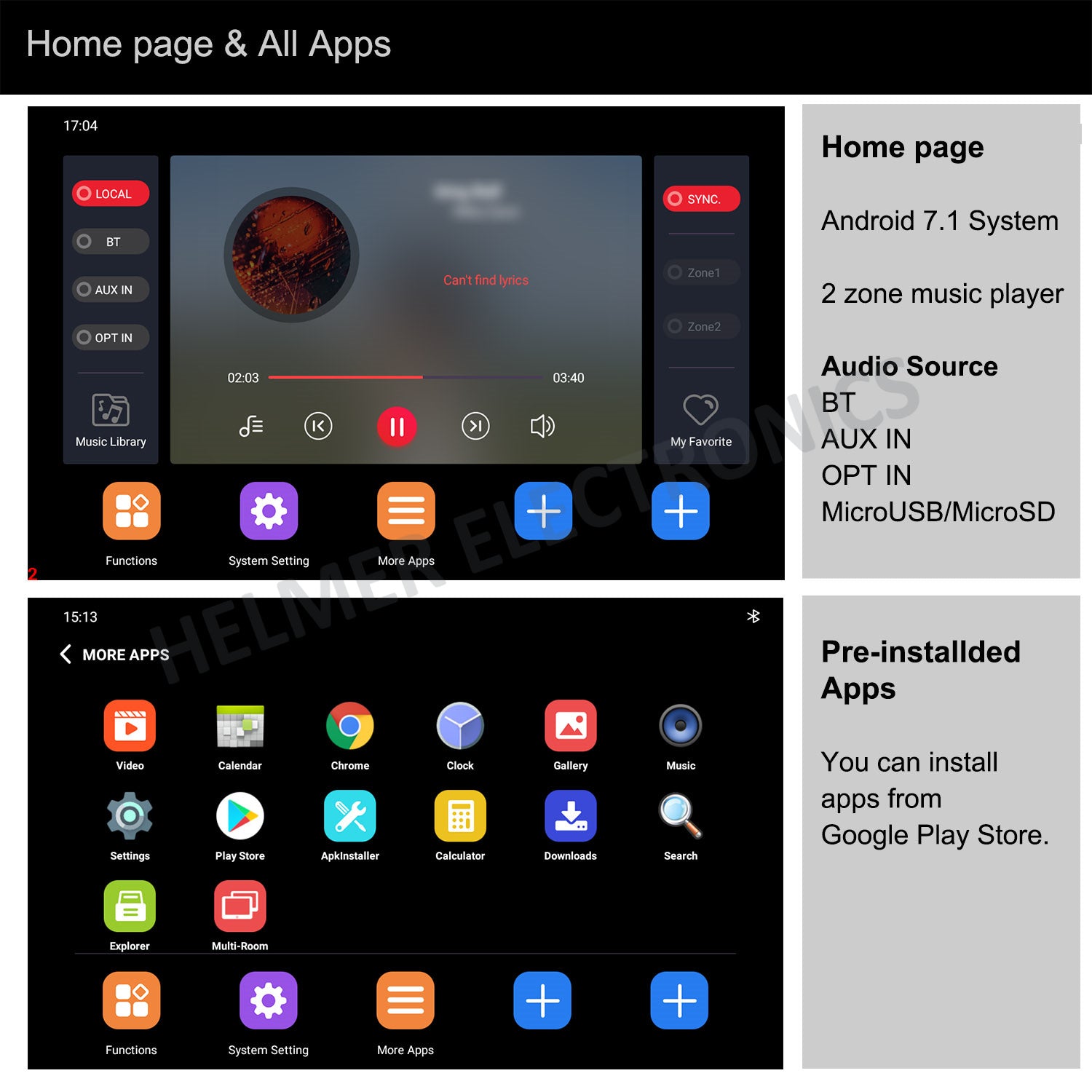

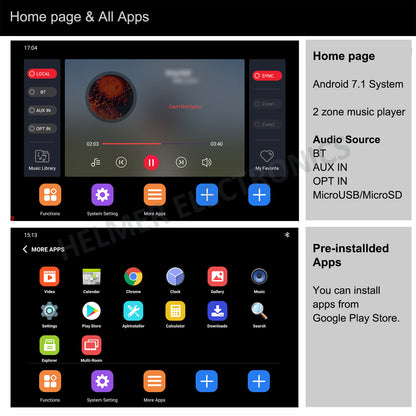

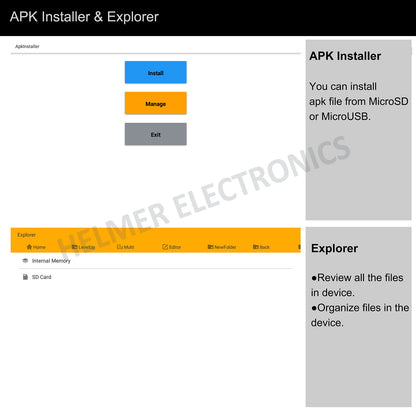

-You can install preferred apps like youtube, Spotify, etc downloaded from Play Store. With HDMI output, you can play movie on amplifier and watch on TV.
-With opt-in connector, you can have TV sound playing through ceiling speakers.
-The amplifier has multi-audio source for microUSB, microSD card, audio input from other amplifier and also it’s Bluetooth-compatible.

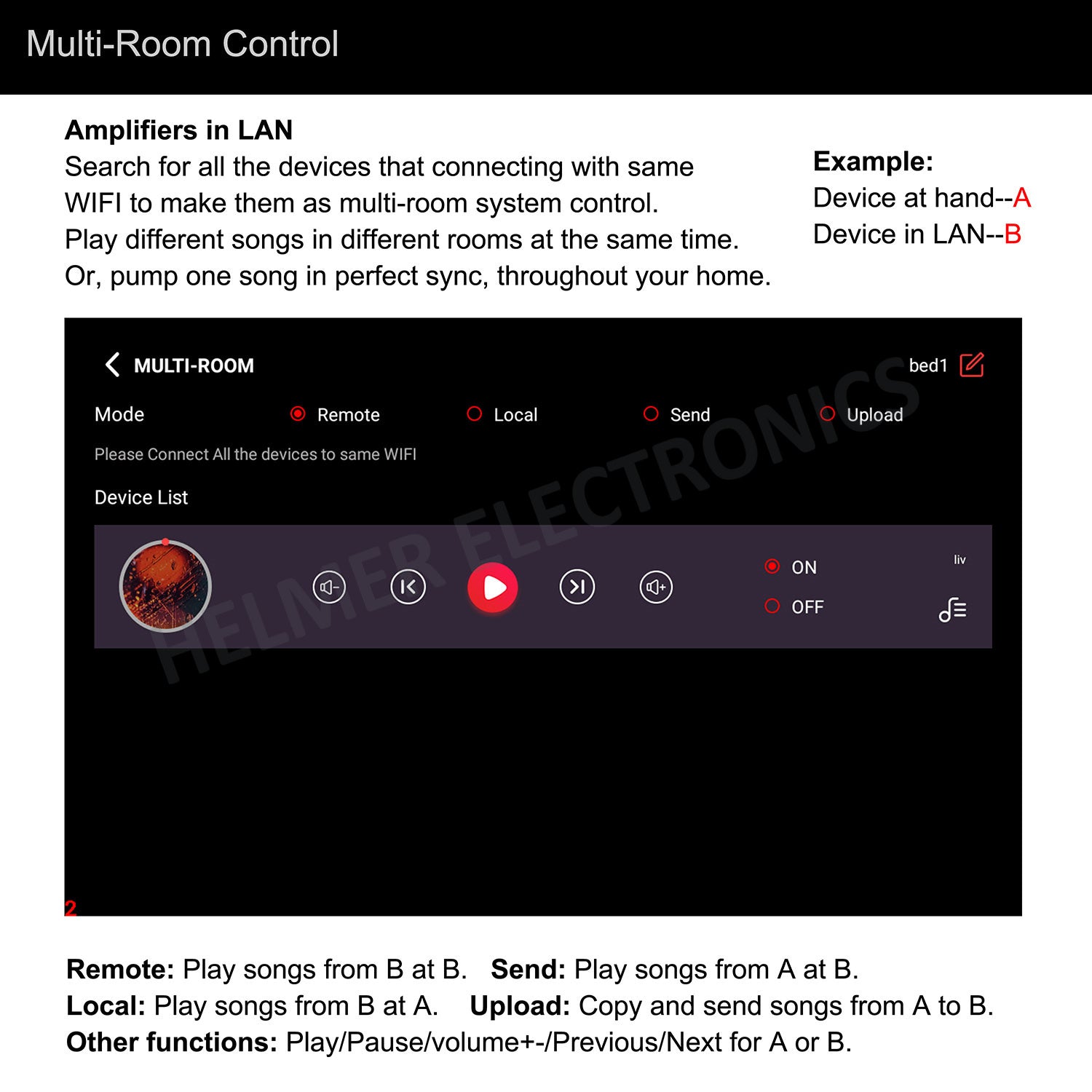

-If you have 2 or more amplifiers in house different rooms, you can control them in system.
Product Features
- Stereo Amplifier Module (4 x 30W) connect up to 8 speakers
- 2 Zone music player, can play different music for 2 zones or synchronize
- 2 zones to play same music.
- Android System 7.1
- Built-in WI-FI module
- RJ45 socket for internet connection
- Bluetooth-compatible for wireless audio input of smartphones, pad etc
- 1 x HDMI Output
- 1 x Optical Input
- 1 x Wired Audio Input (on rear PCB)

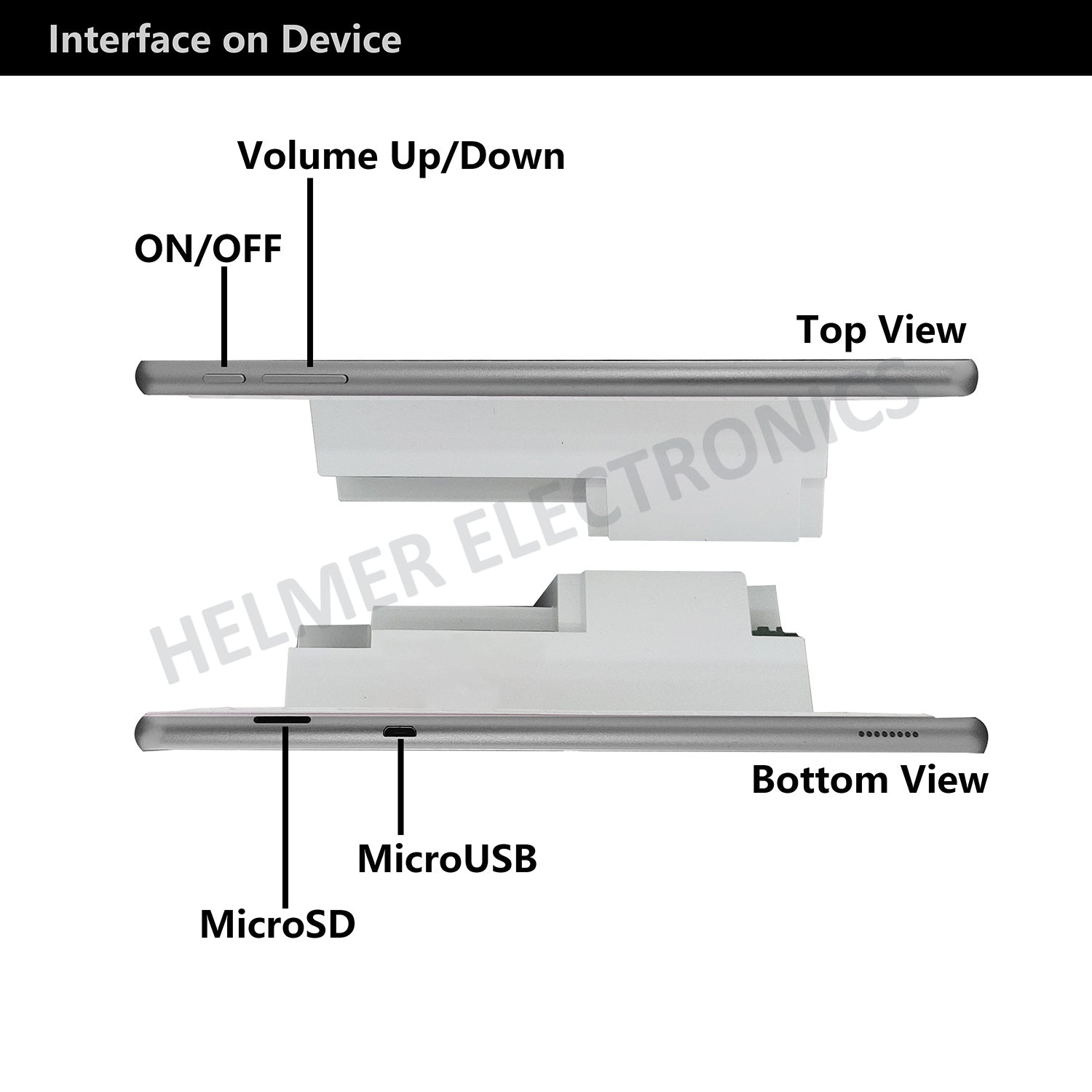

- Micro USB & MicroSD card player (at bottom of unit)
- 1x Wired Audio Output (on rear PCB)
- Photo album

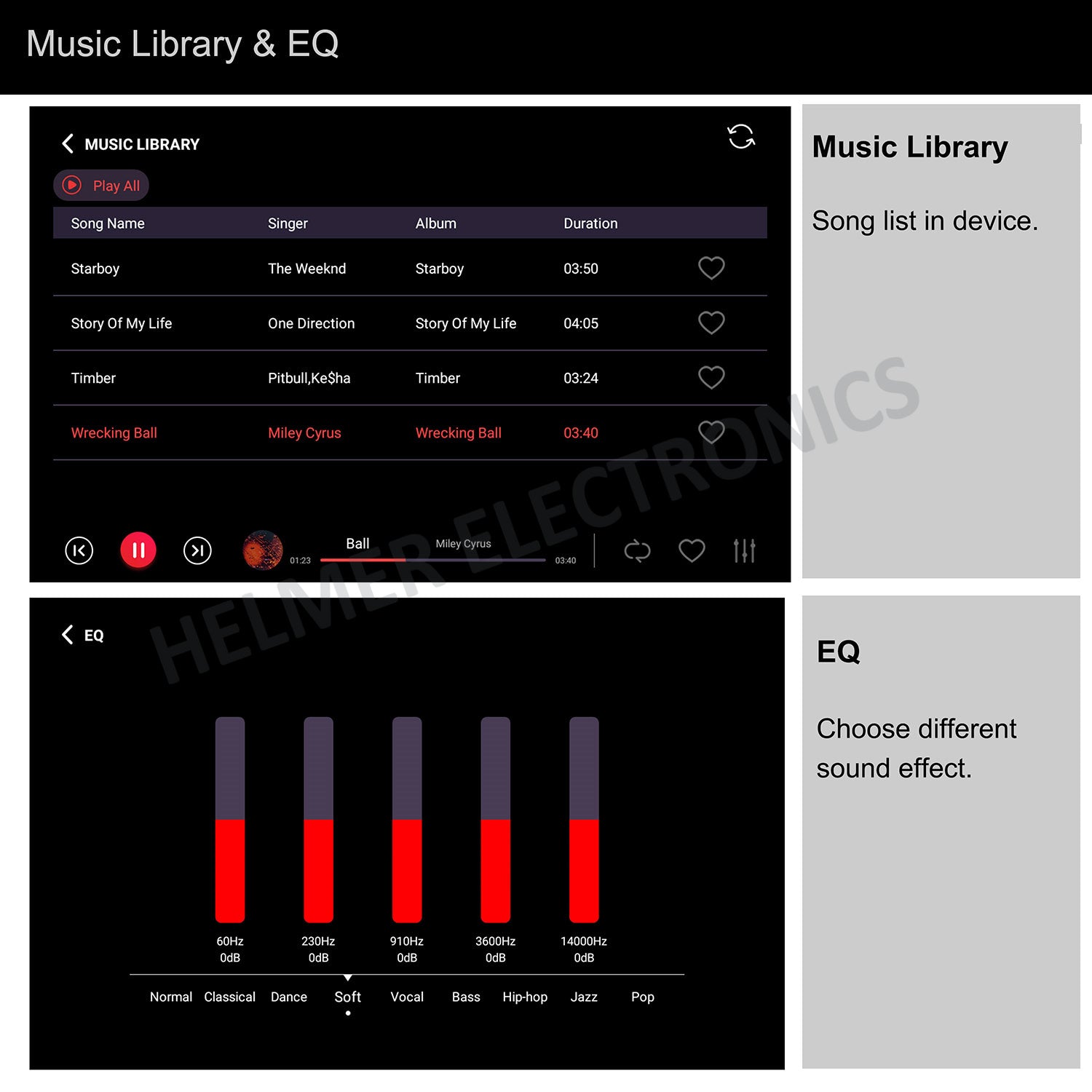

- Music Player
- Video Player
- Time Display

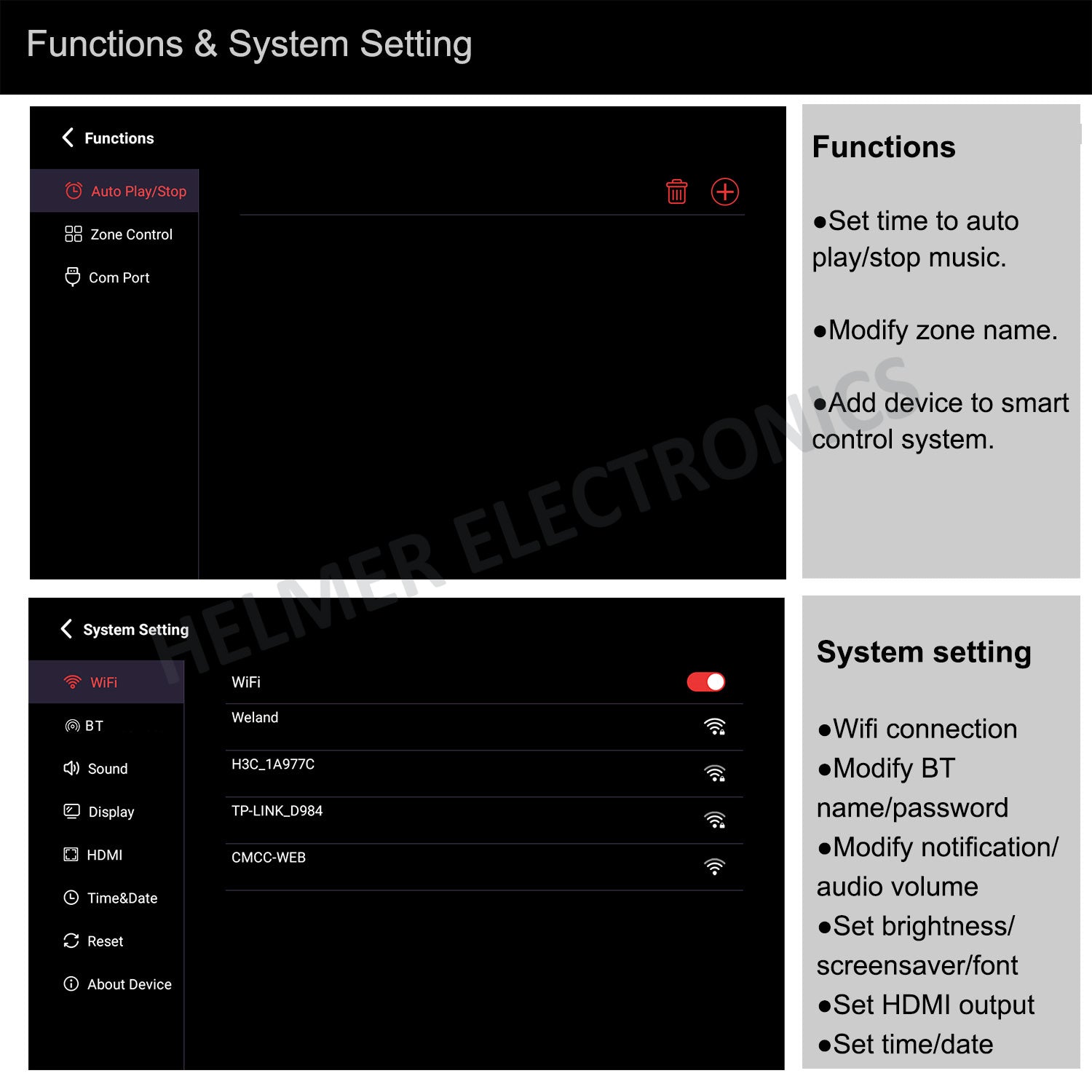

- Set time to play/stop music

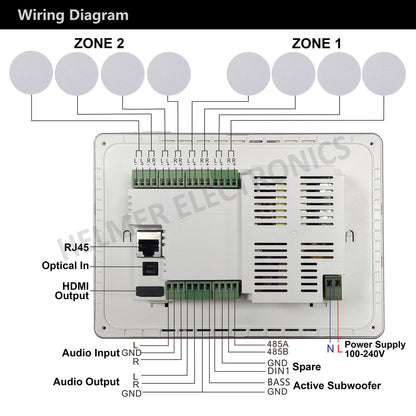

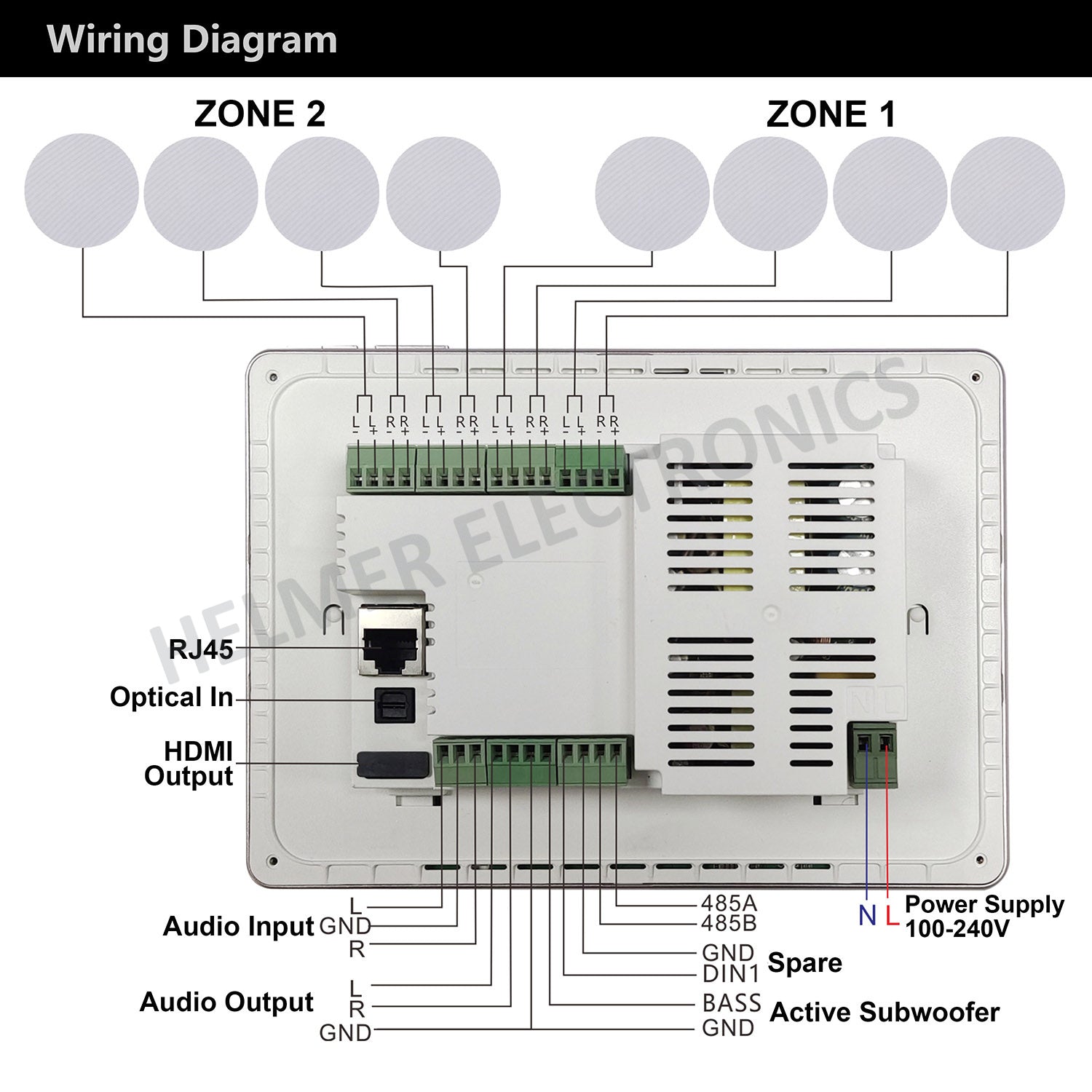

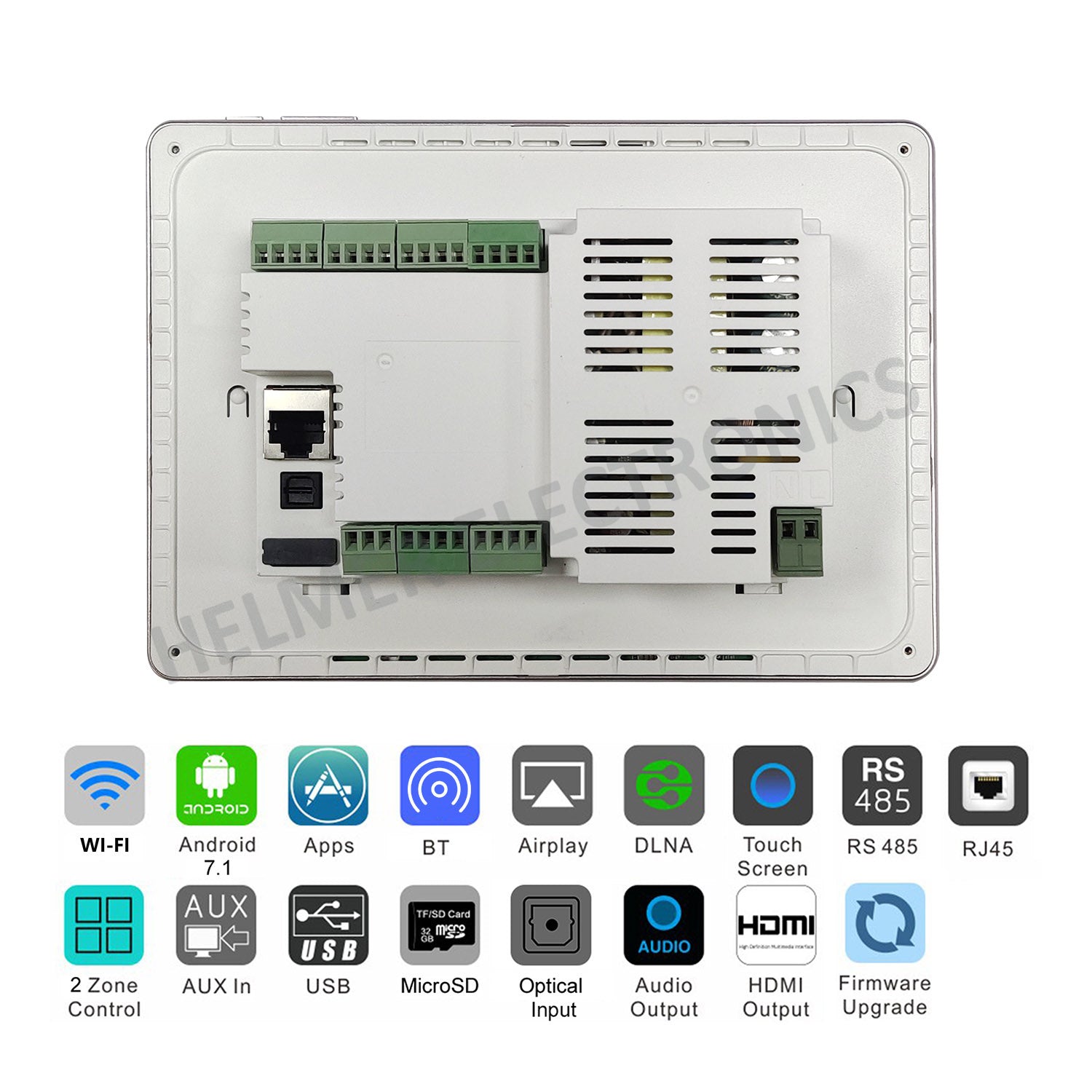

- Screw terminations on the rear of the unit for loudspeakers, power and
- wired line input
- Includes in-line power supply
- Software and firmware update
Technical Specifications
-
Screen Size: 8"IPS Touch Screen (1280*800)
-
Power Supply: AC100-240V, 50-60Hz
-
Power Output: 4 x 30W @ 4Ω
-
Output Impedance: 8Ω
-
CPU: RK3288 Cortex A17 quad core, 1.8GHz
-
RAM: 2G, ROM: 16G
-
Extended Memory: Extended Memory card up to 64G
-

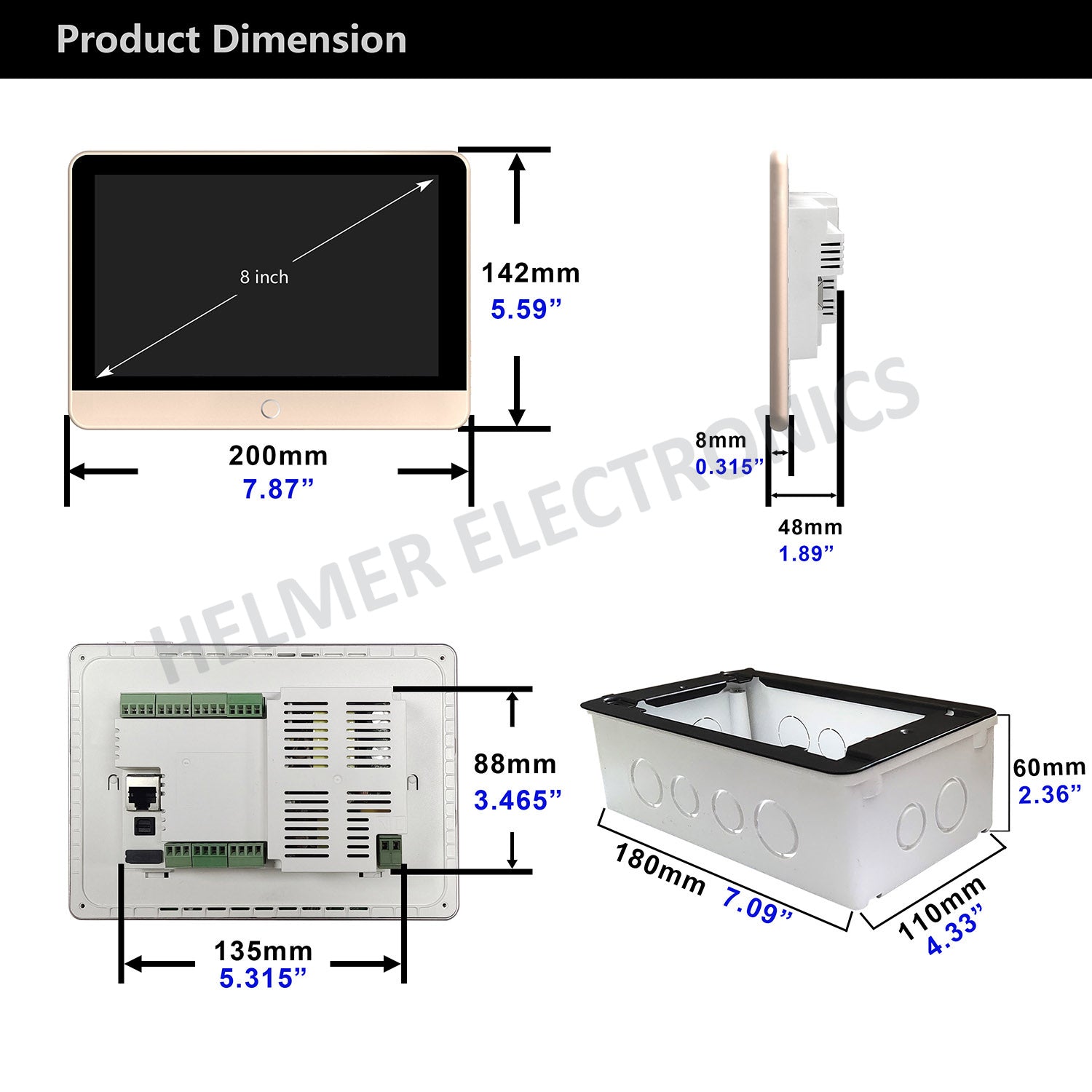

Product Size: 200 x 142 x 48mm

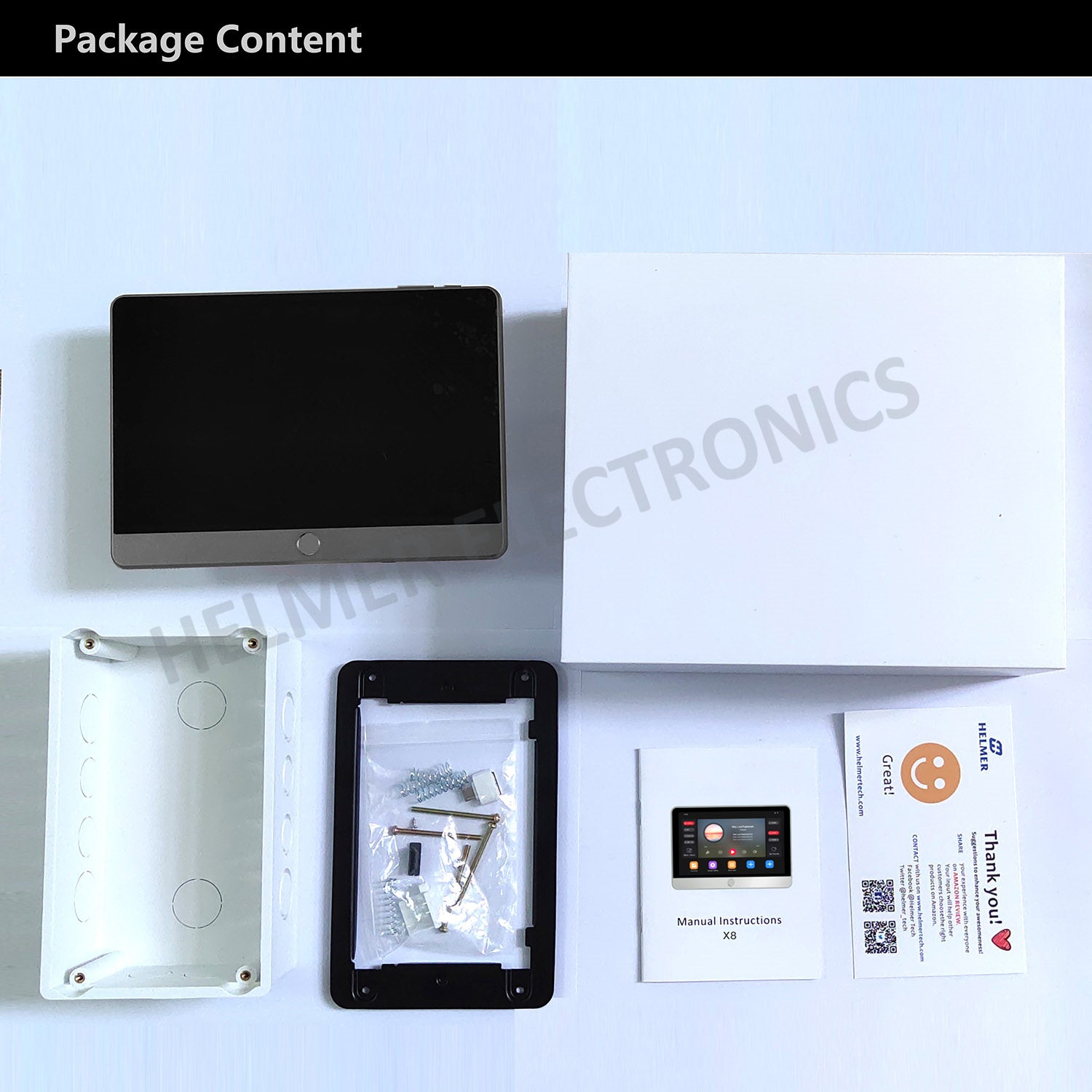

Package Contents
- 1 x amplifier

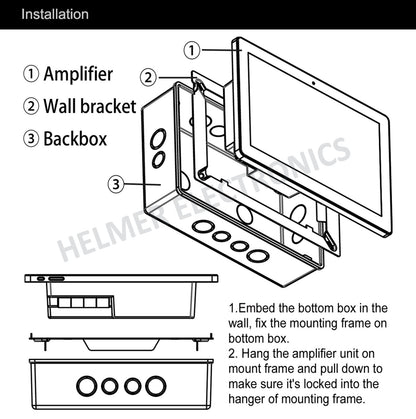

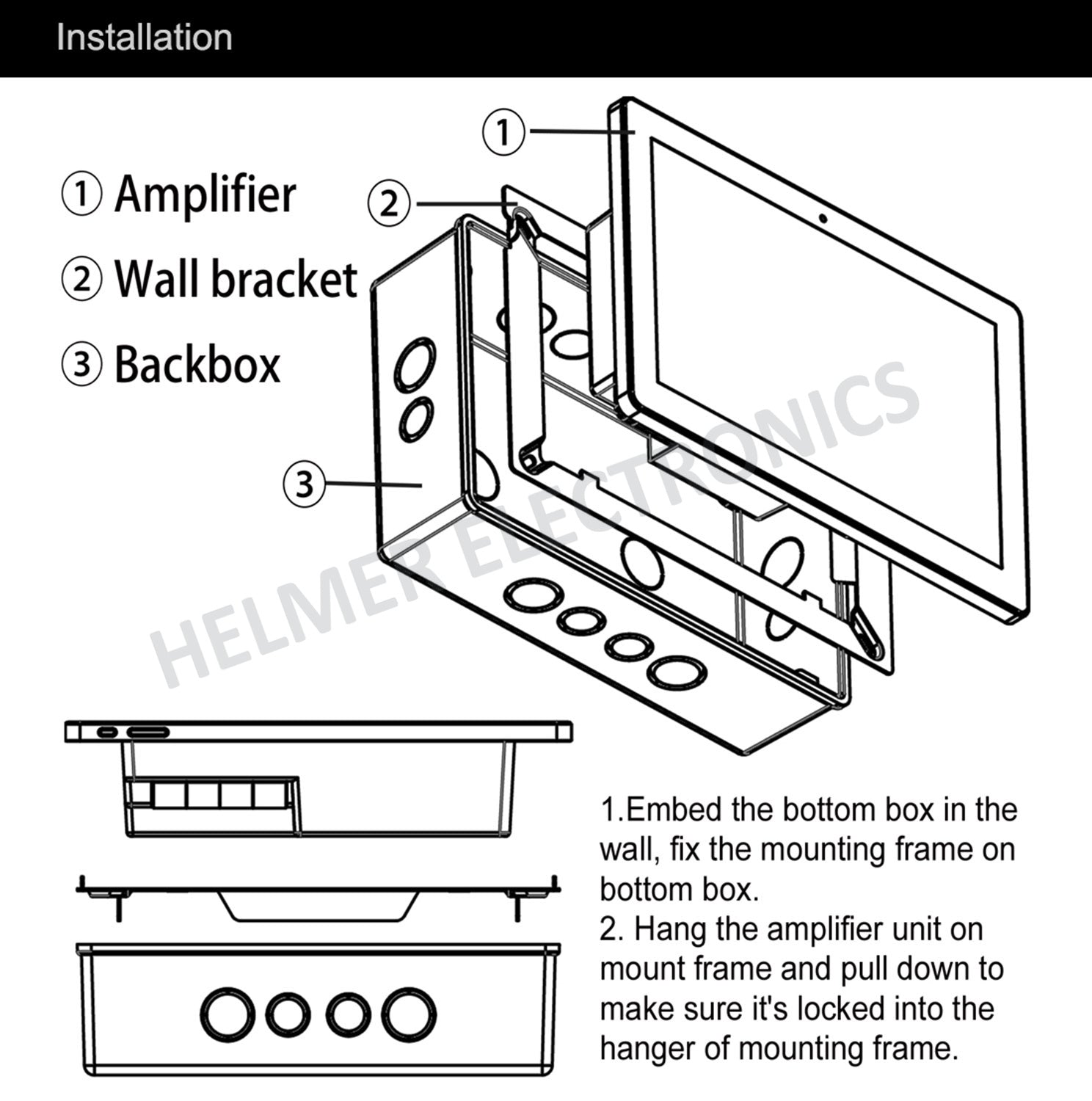

- 1 x mounting frame
- 4 x screws for mounting
- 1 x back box for in wall
- 1 x Micro USB to USB connector
