Product description

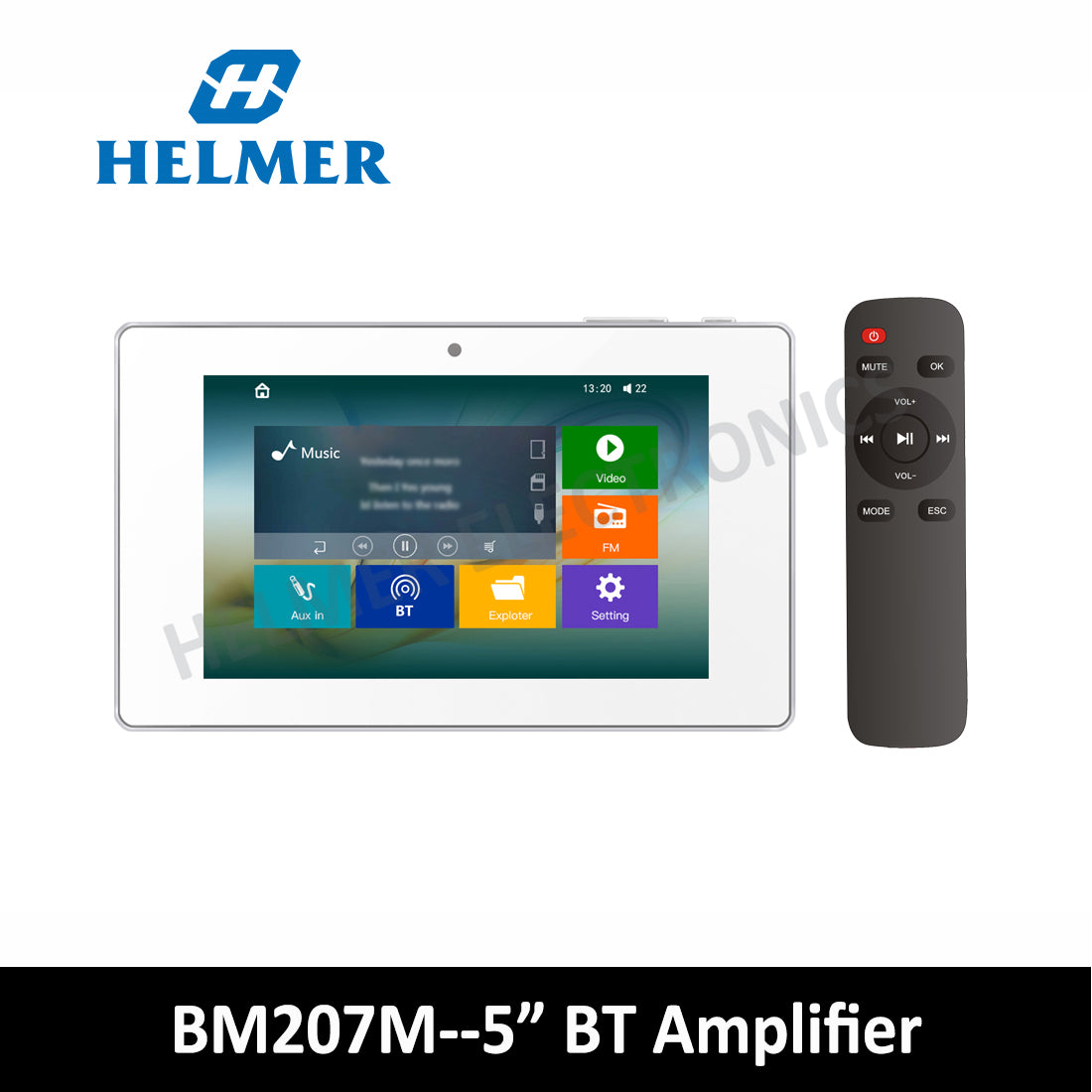

Model No.: BM207MWT
Color: White
-It's integrated amplifier installed in wall and have control unit on wall that you can control by mobile phone(bluetooth-compatible) or by remote control.
-You have bluetooth-compatible connection to play music from your phone/pad/computer. Also you can play music from MicroUSB or MicroSD card.
-With extended antenna, you can connect to FM radio station.
-This unit is widely used for room for home, office, hotel,etc.
-It's recommended to connect with 4 speakers.
Product Features
- Stereo Amplifier Module (2 x 15W) connect up to 4 speakers
- Bluetooth-compatible connectivity for wireless audio input of iPhone,
- iPad, smartphones, etc
- 1 x Wired Audio Input (on rear PCB)

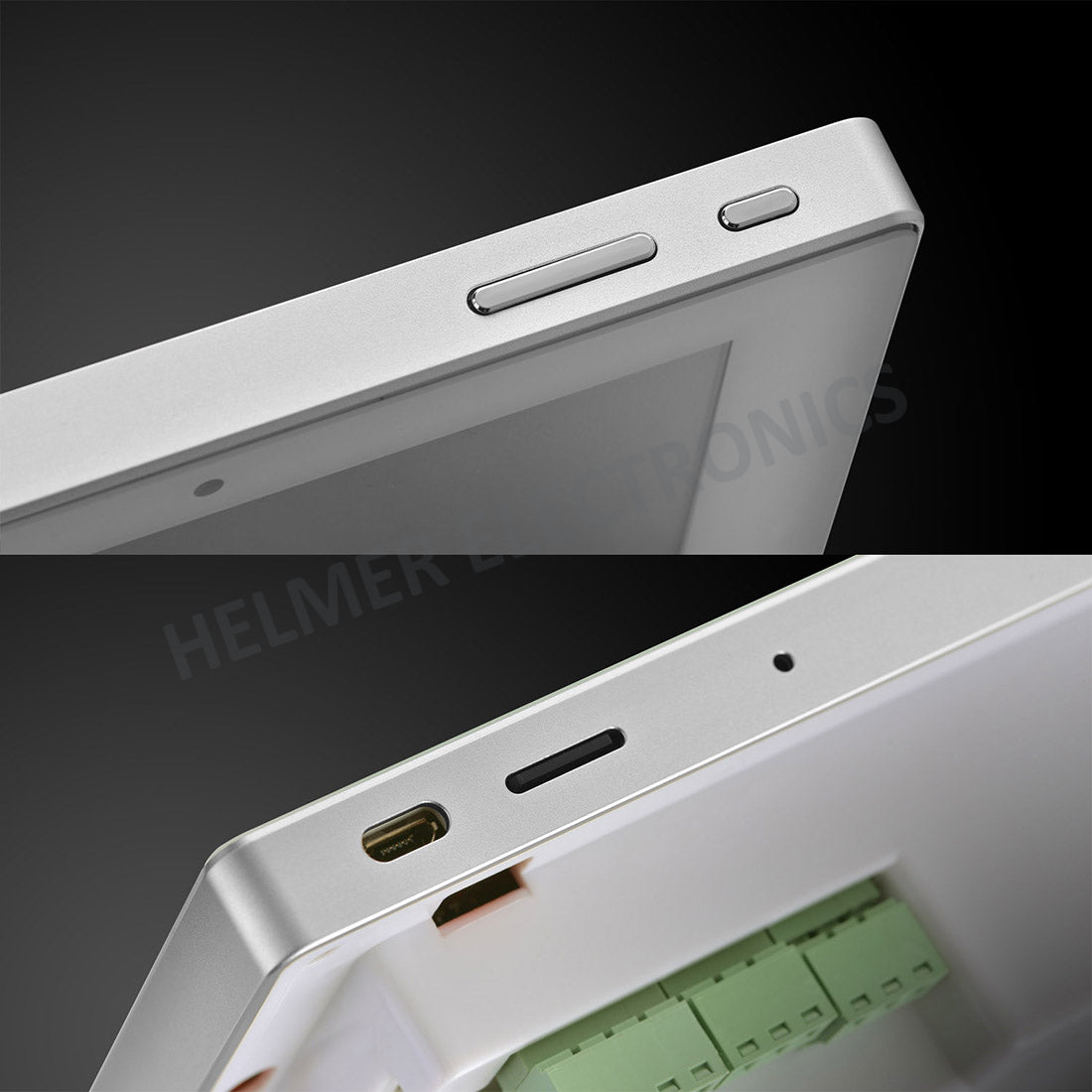

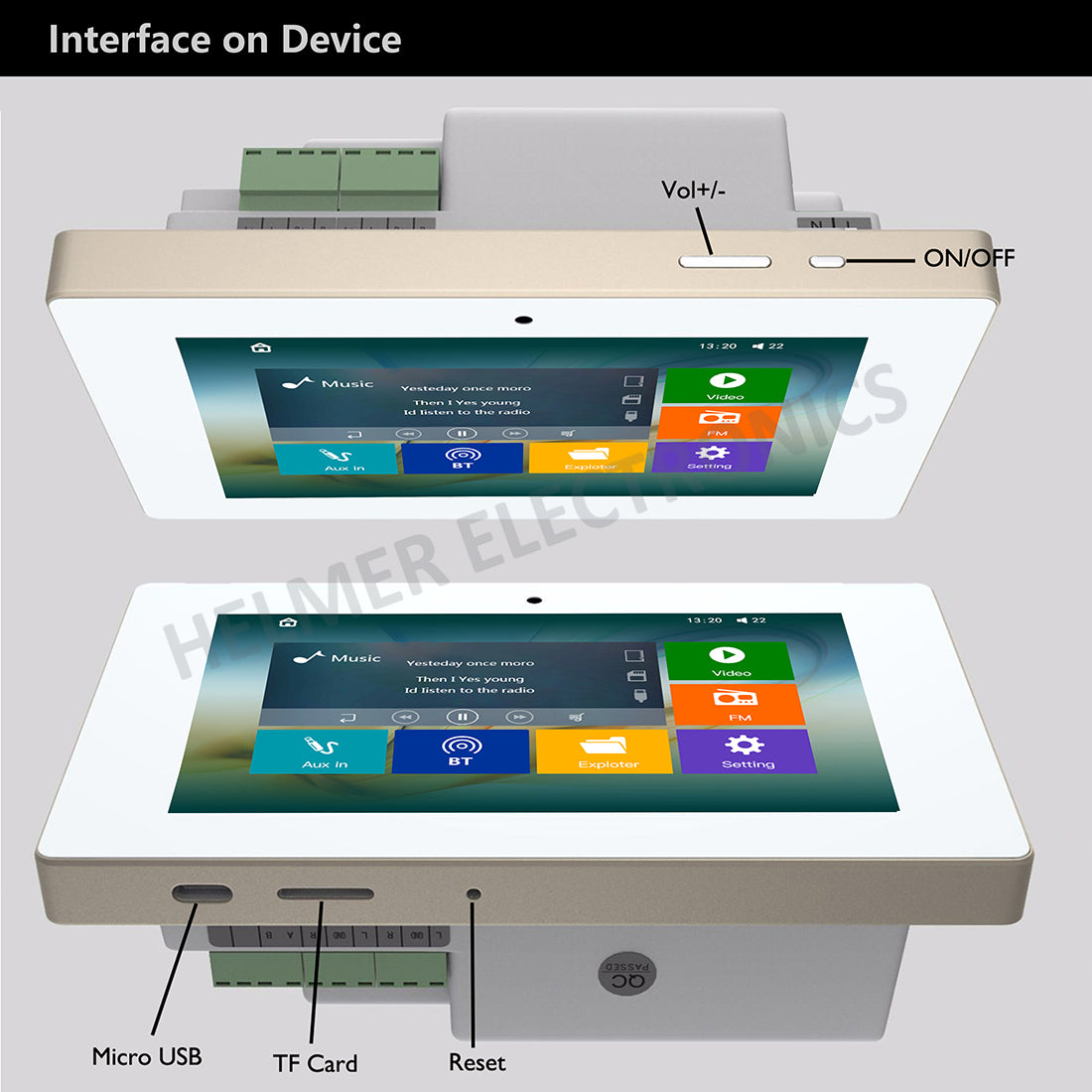

- Micro USB and TF card player (at bottom of unit)
- 1x Wired Audio Output (on rear PCB)
- Built-in FM radio (87-108MHz)
- 1 x RS485 connector
- Music Player
- Video Player
- Time Display
- Set time to turn on/off the unit
- Infrared remote control

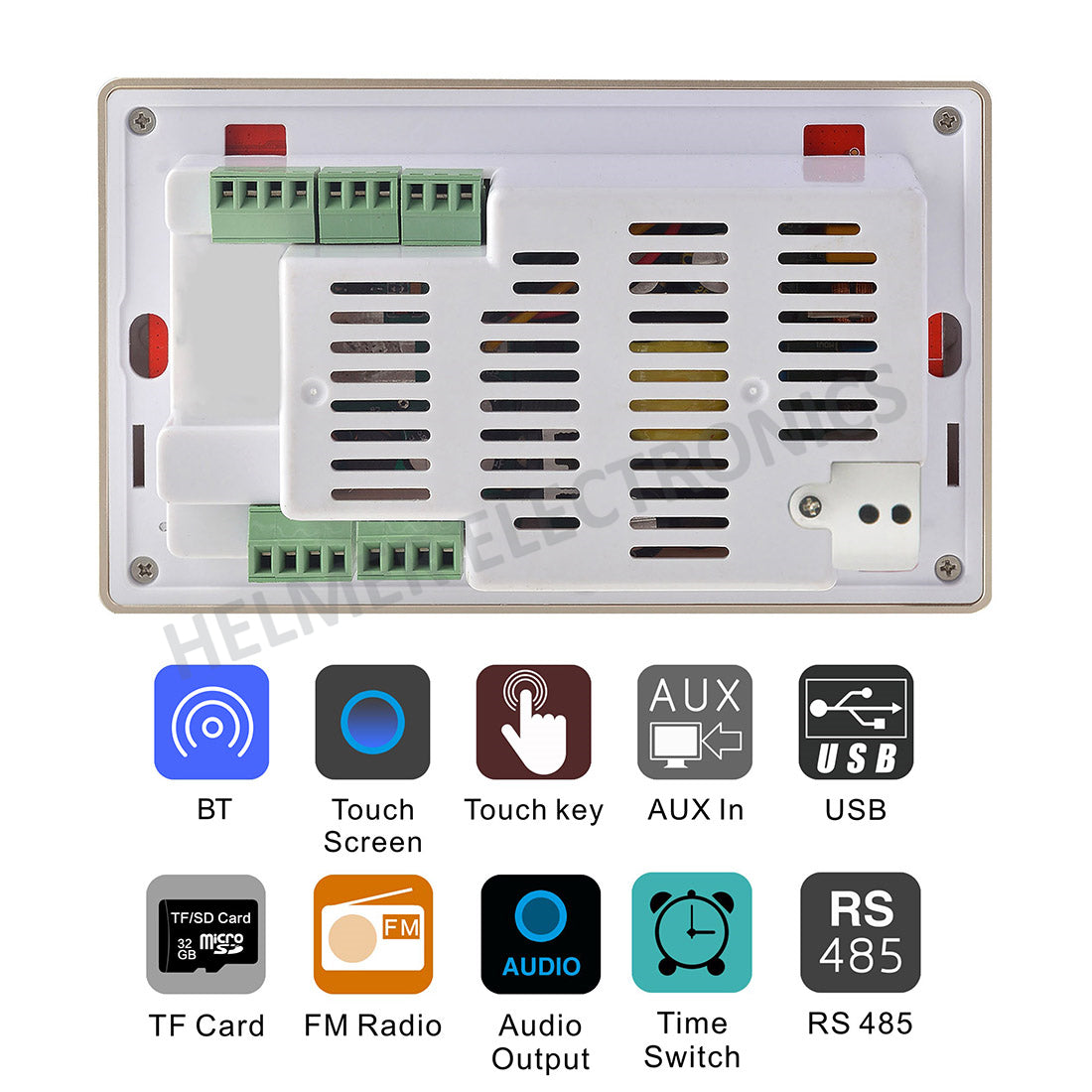

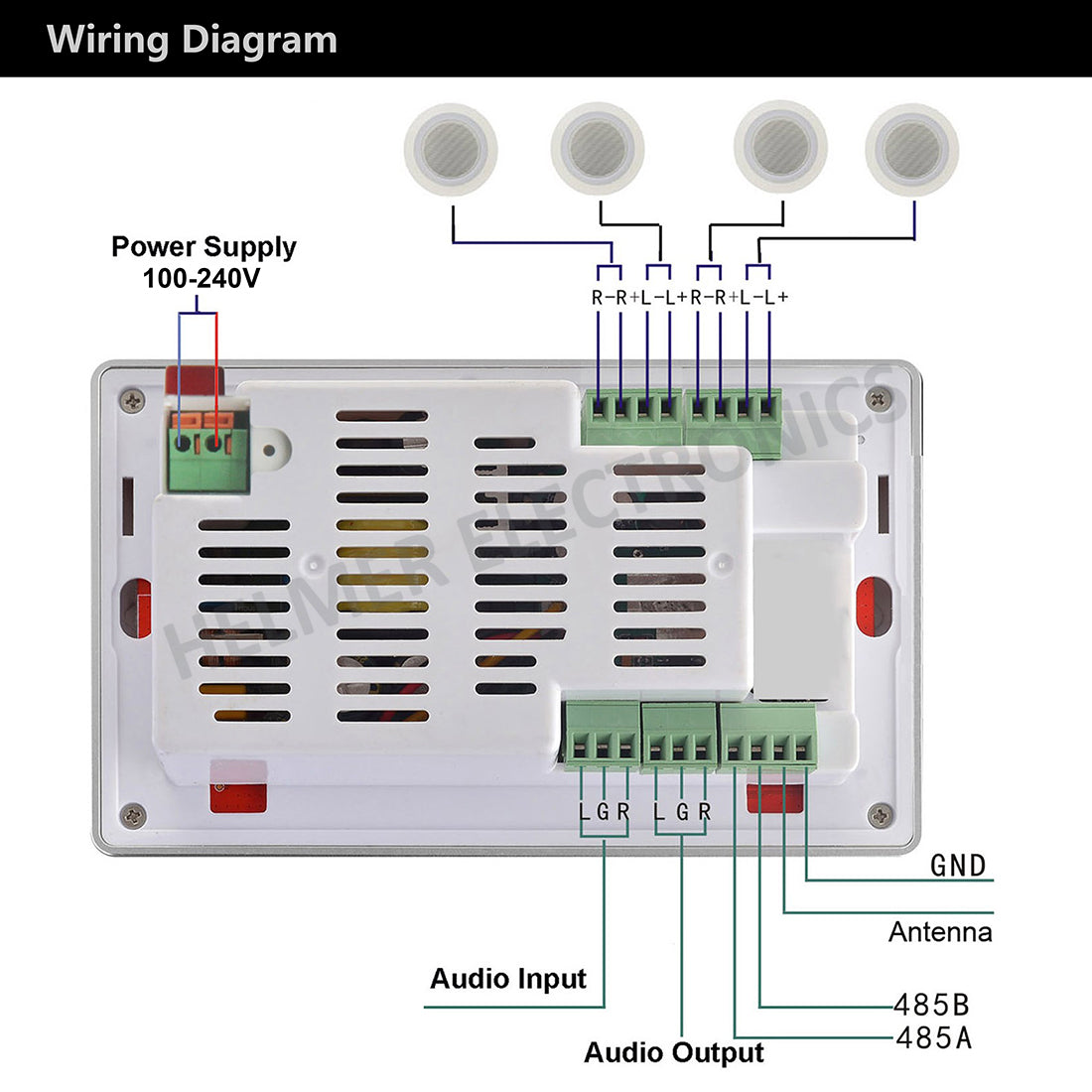

- Screw terminations on the rear of the unit for loudspeakers, power and
- wired line input
- Includes in-line power supply
Technical Specifications
-
Screen Size: 5" Capacitive Touch Screen (800*480)
-
Power Supply: AC100-240V, 50-60Hz
-
Power Output: 2 x 15W @ 4Ω
-
Output Impedance: 8Ω
-
ROM: 1G,Extended Memory card up to 32G
-
BT Transmission Distance: ≤ 10M
-

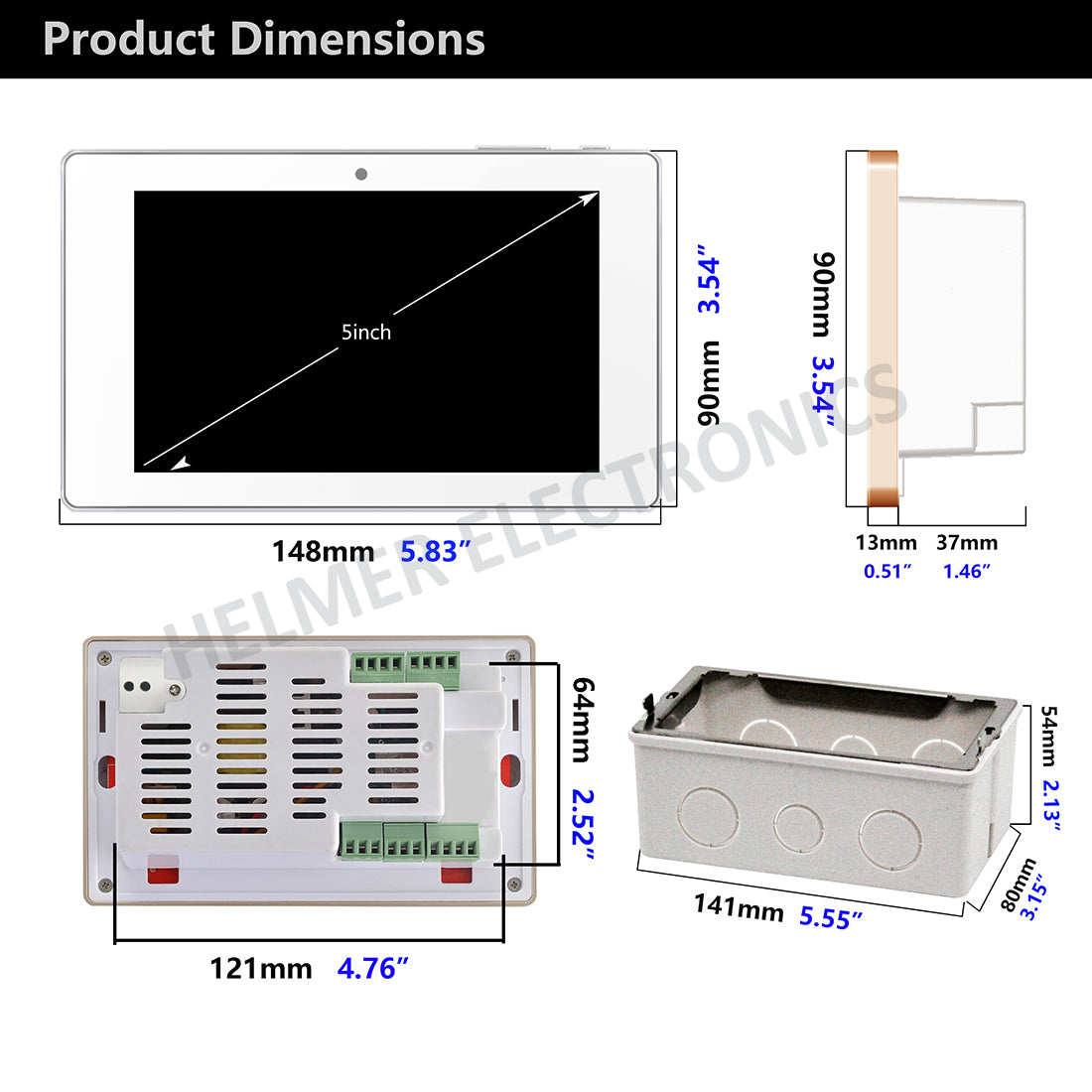

Product Size: 148 x 90 x 50mm
Package Contents
- 1 x Amplifier

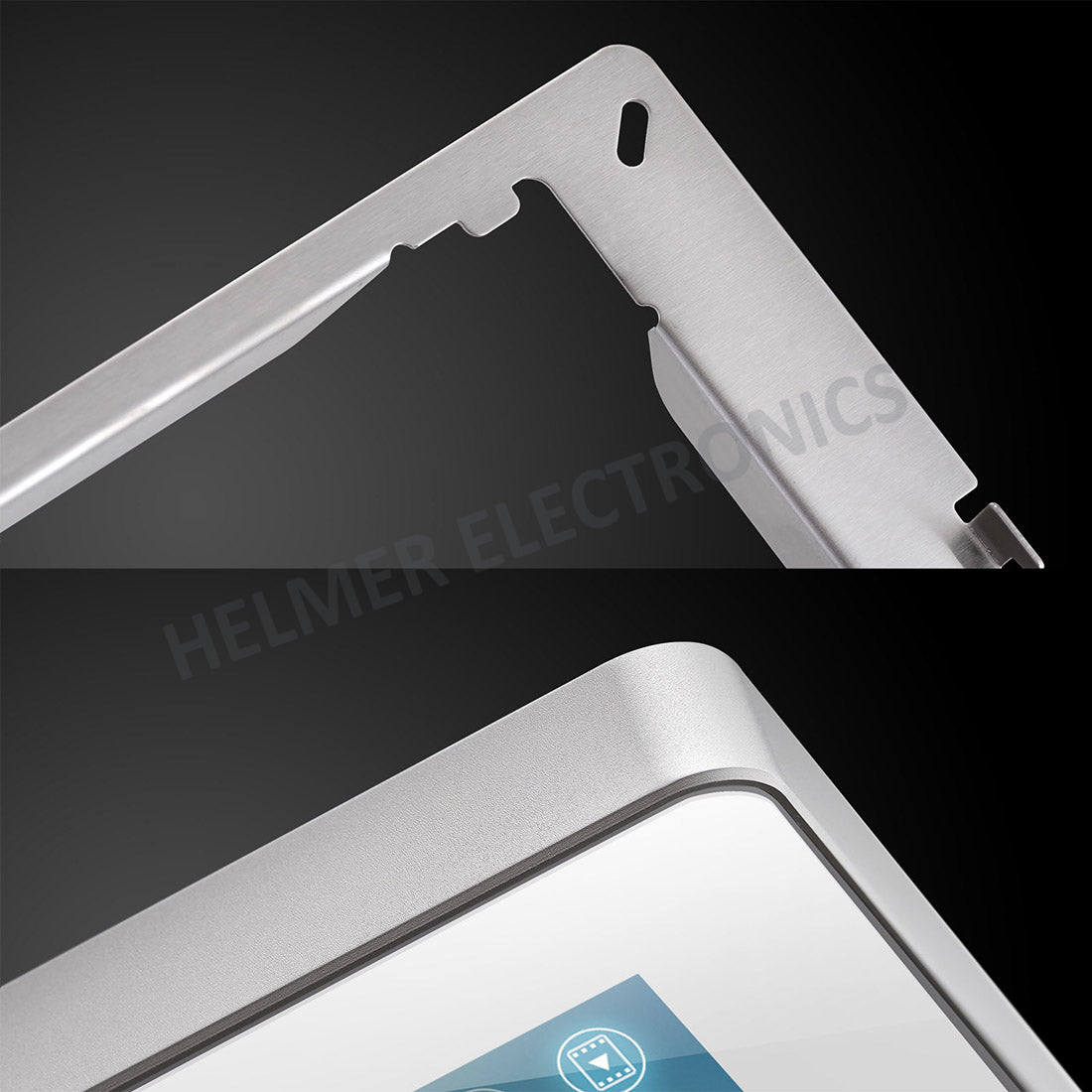

- 1 x mounting frame
- 2 x screws for mounting
- 1 x back box for in wall (H: 54mm)
- 1 x Micro USB to USB connector
- 1 x remote control (cell battery is not included)
