Product description
Model No.: B8

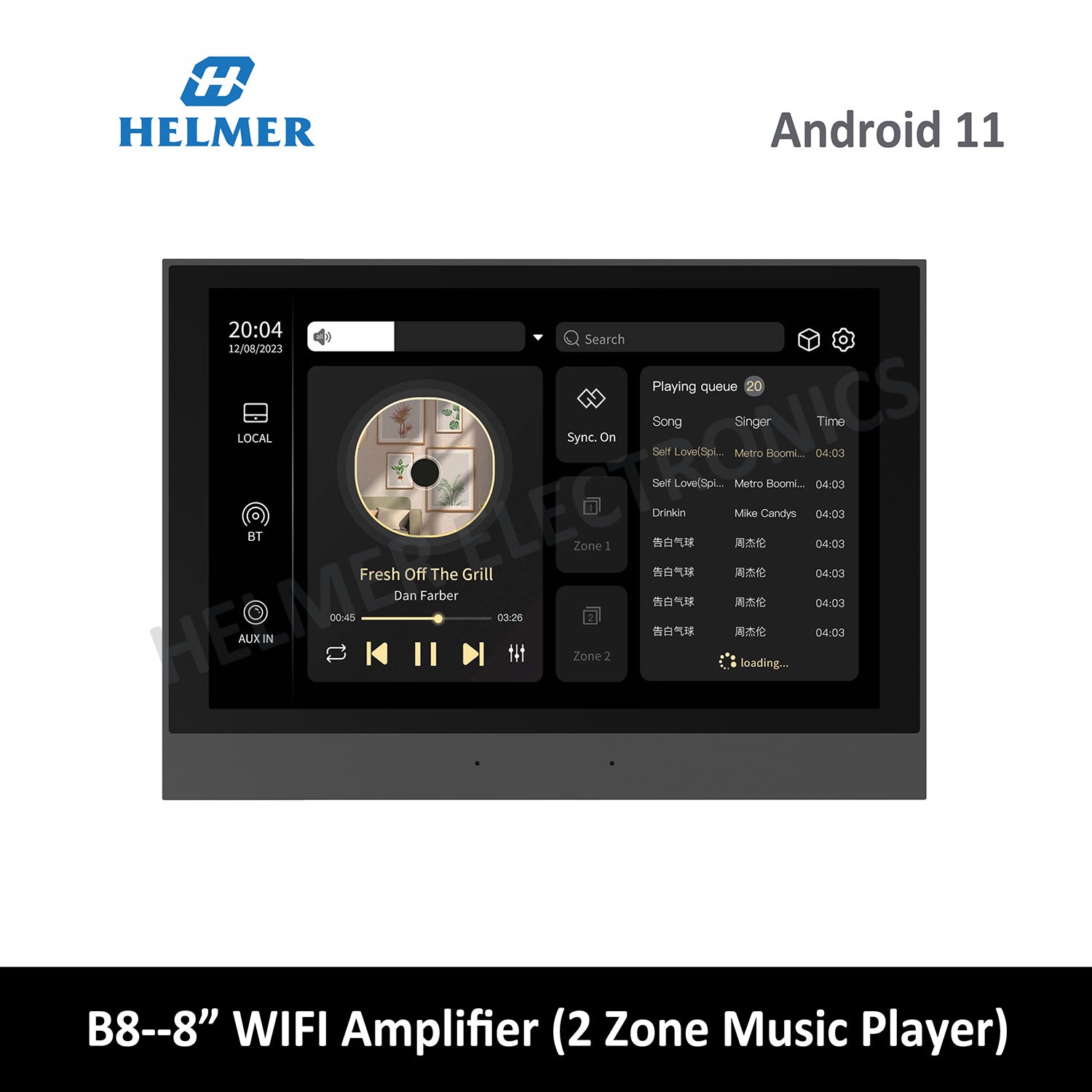

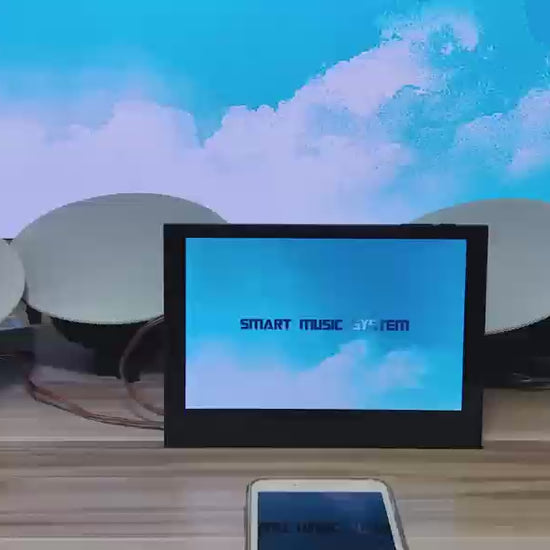

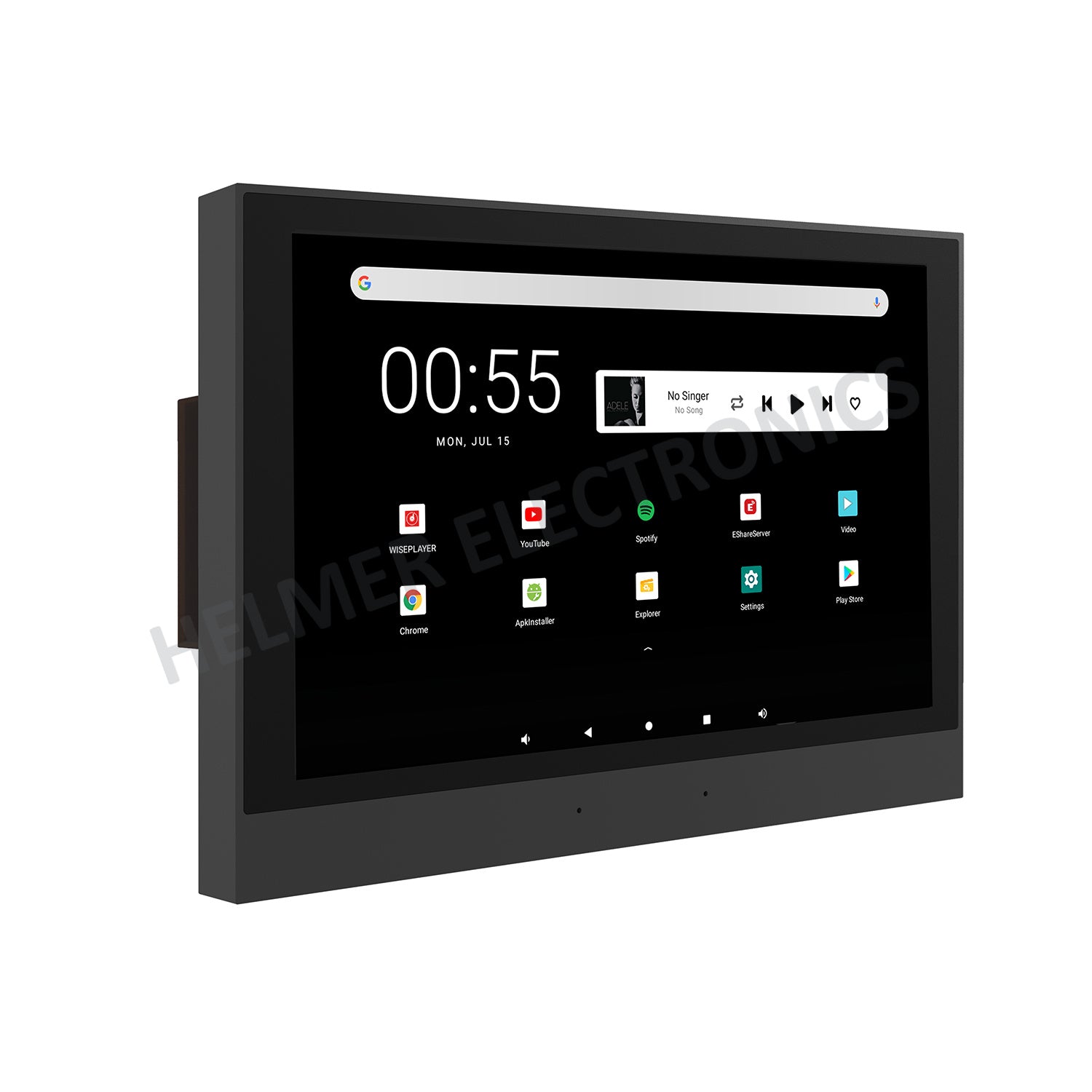

-It’s integrated audio amplifier with 8” touch screen tablet as control panel.

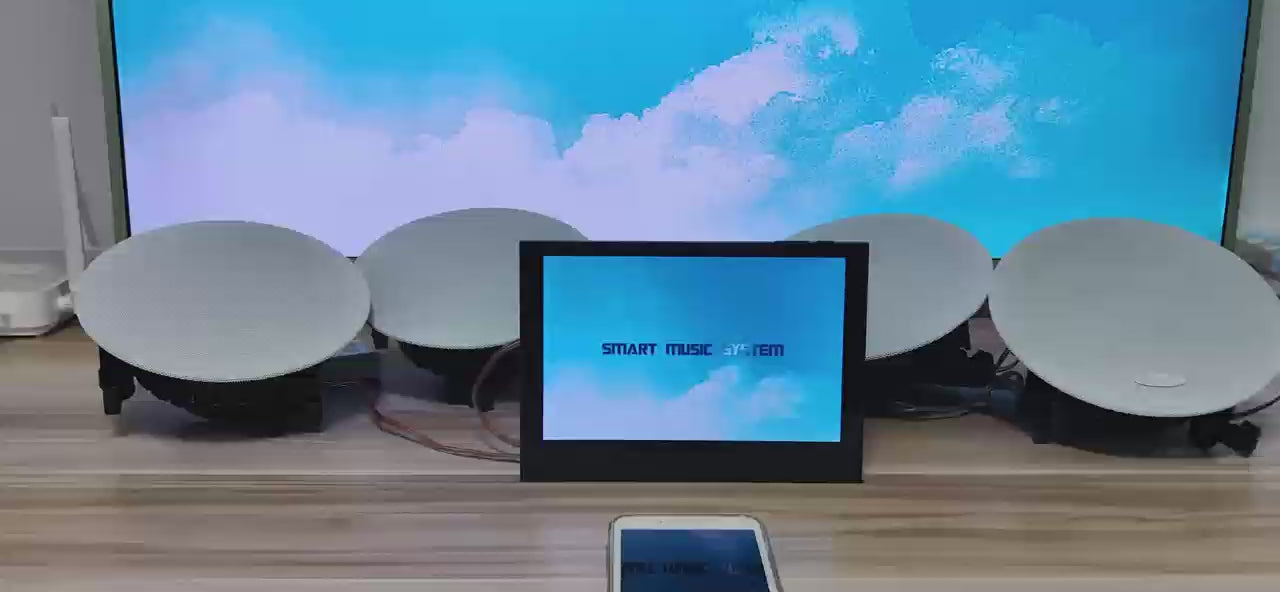

-It can connect with up to 8 speakers for 2 zone control. And for each zone, you can play different audio source or you can synchronize 2 zones to play same music.

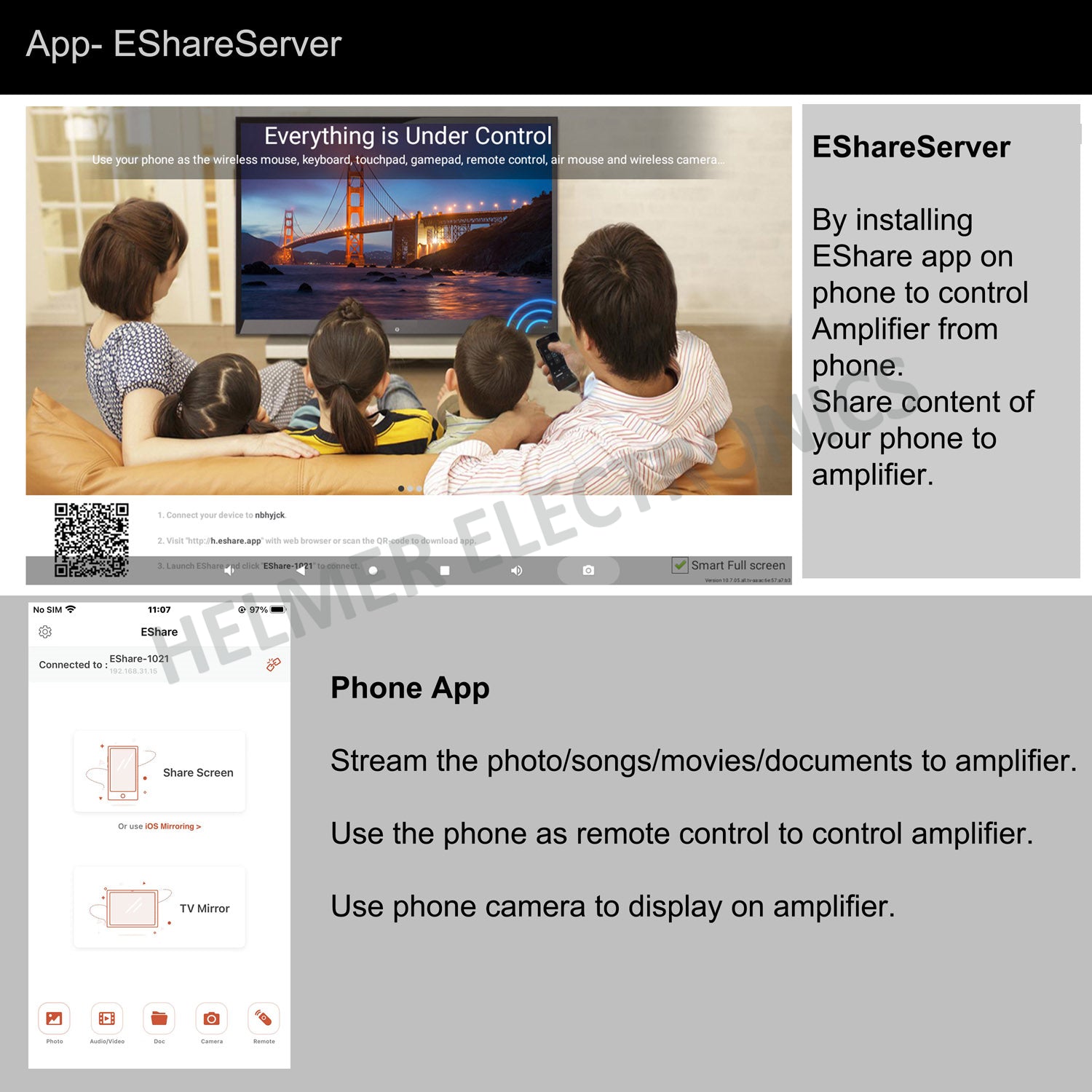

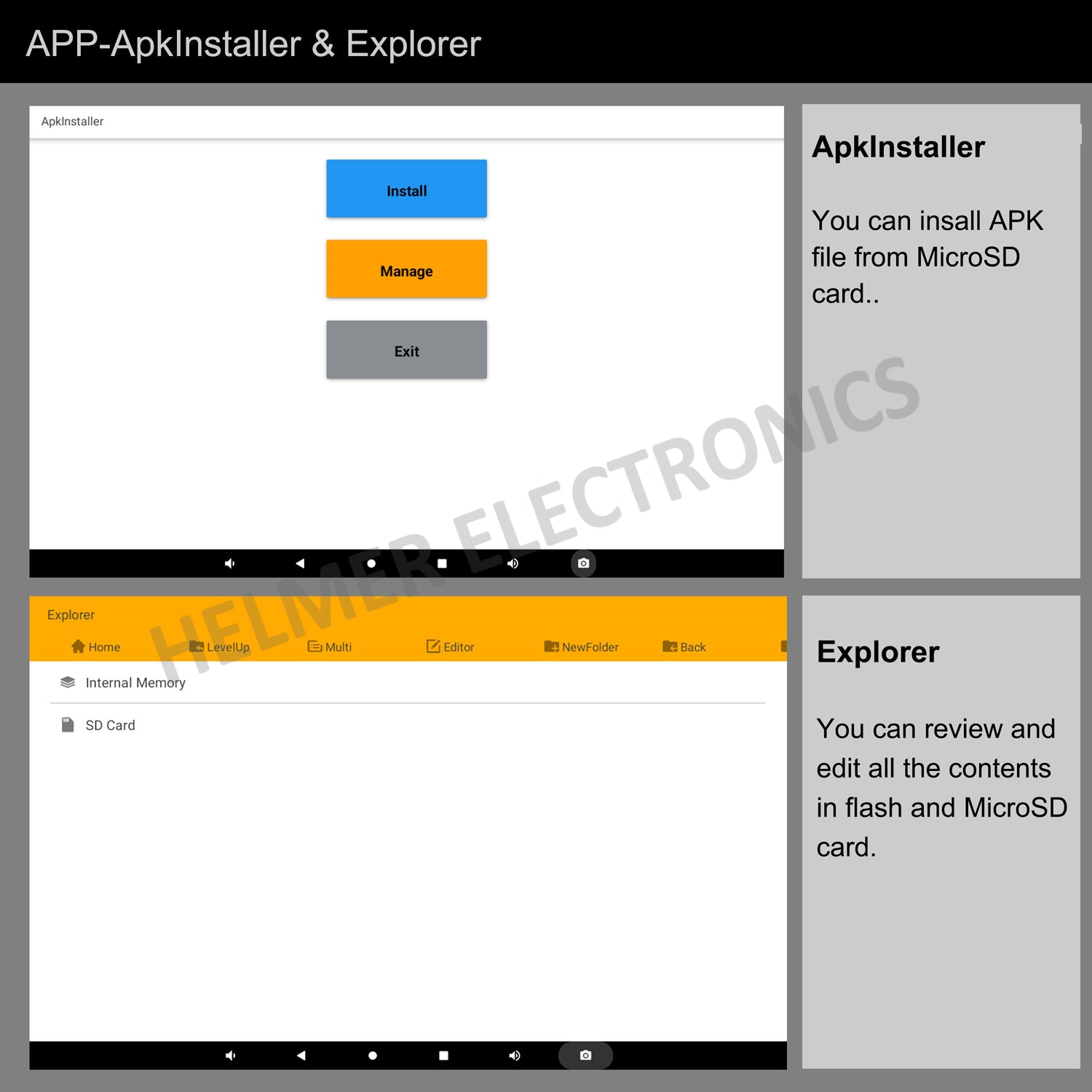

-You can install preferred apps like youtube, Spotify, etc downloaded from Play Store. With built in mini-microphone, you can talk to apps like Alexa.
- With HDMI output, you can play movie on amplifier but watch on TV and have amazing sound through ceiling speakers.
-The amplifier has multi-audio source for microSD card, audio input from other amplifier and also it’s Bluetooth-compatible.
Product Features
- Stereo Amplifier Module (4 x 30W) connect up to 8 speakers

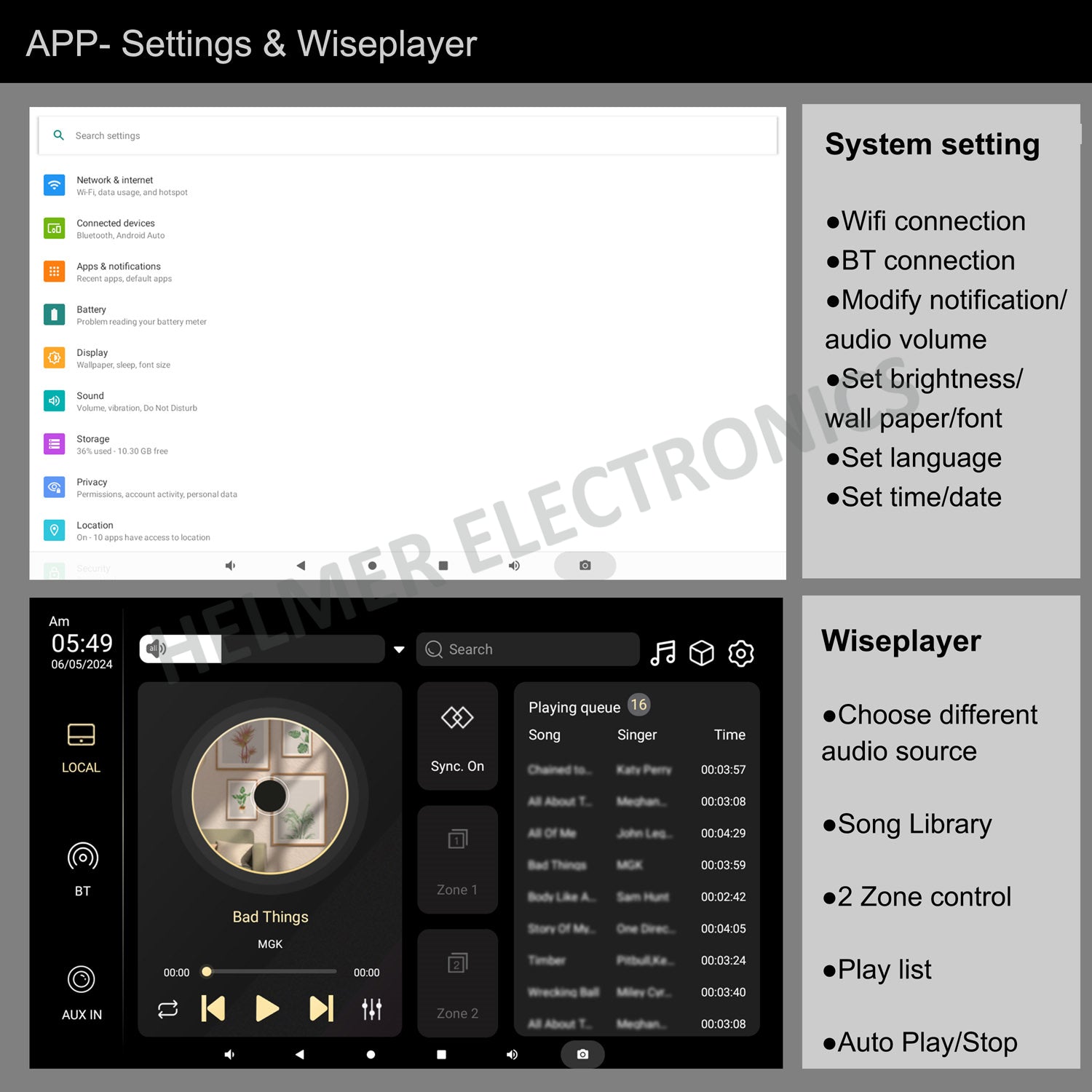

- 2 Zone music player, can play different music for 2 zones or synchronize
- 2 zones to play same music.

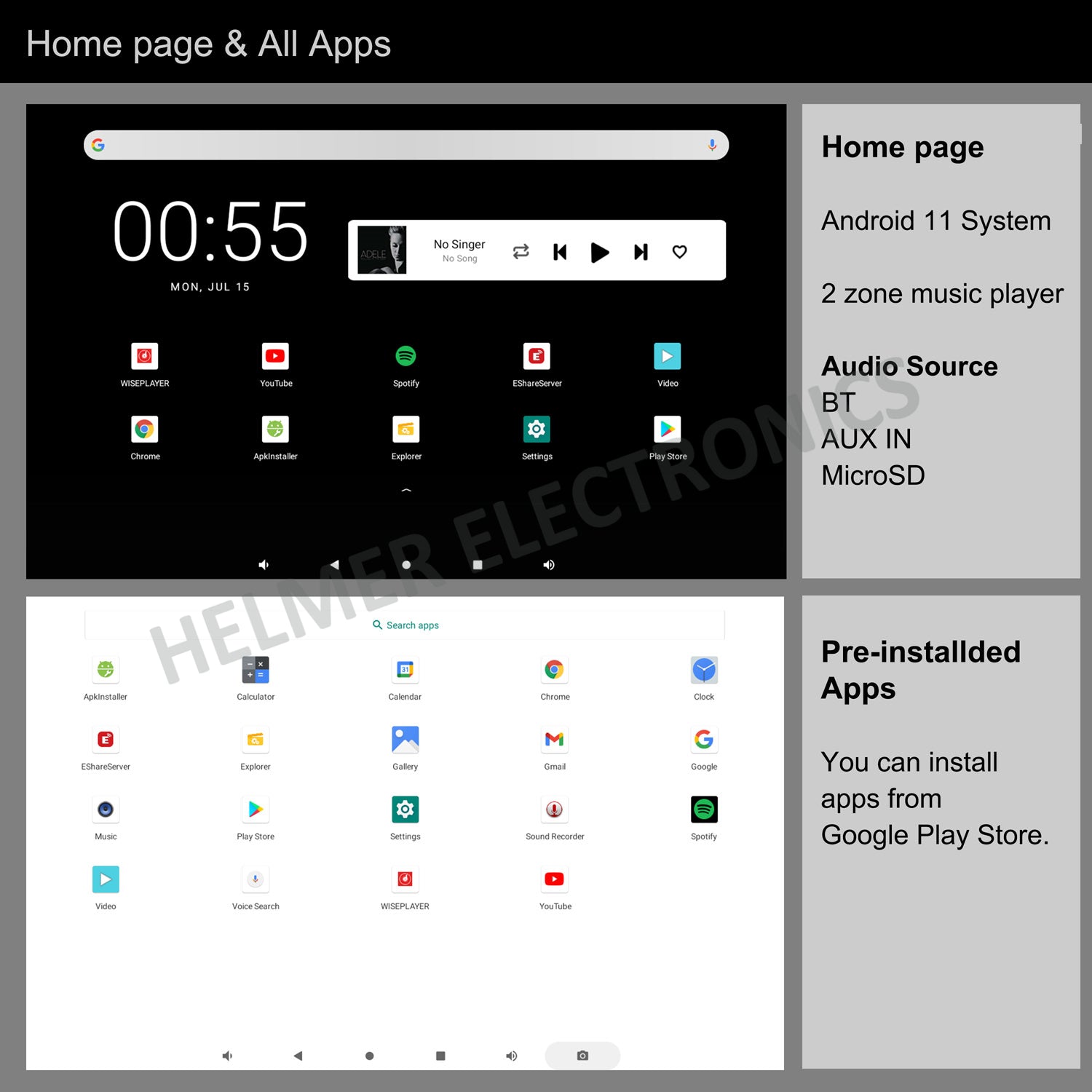

- Android System 11
- Built-in WI-FI module
- RJ45 socket for internet connection
- Bluetooth-compatible for wireless audio input of smartphones, pad etc
- Bluetooth-compatible for wireless speaker
- 1 x HDMI Output (HDMI 2.0)
- 2 x built in mini-microphone
- 1 x Wired Audio Input (on rear PCB)
- MicroSD card player (at bottom of unit)
- 1x Wired Audio Output (on rear PCB)
- Photo album

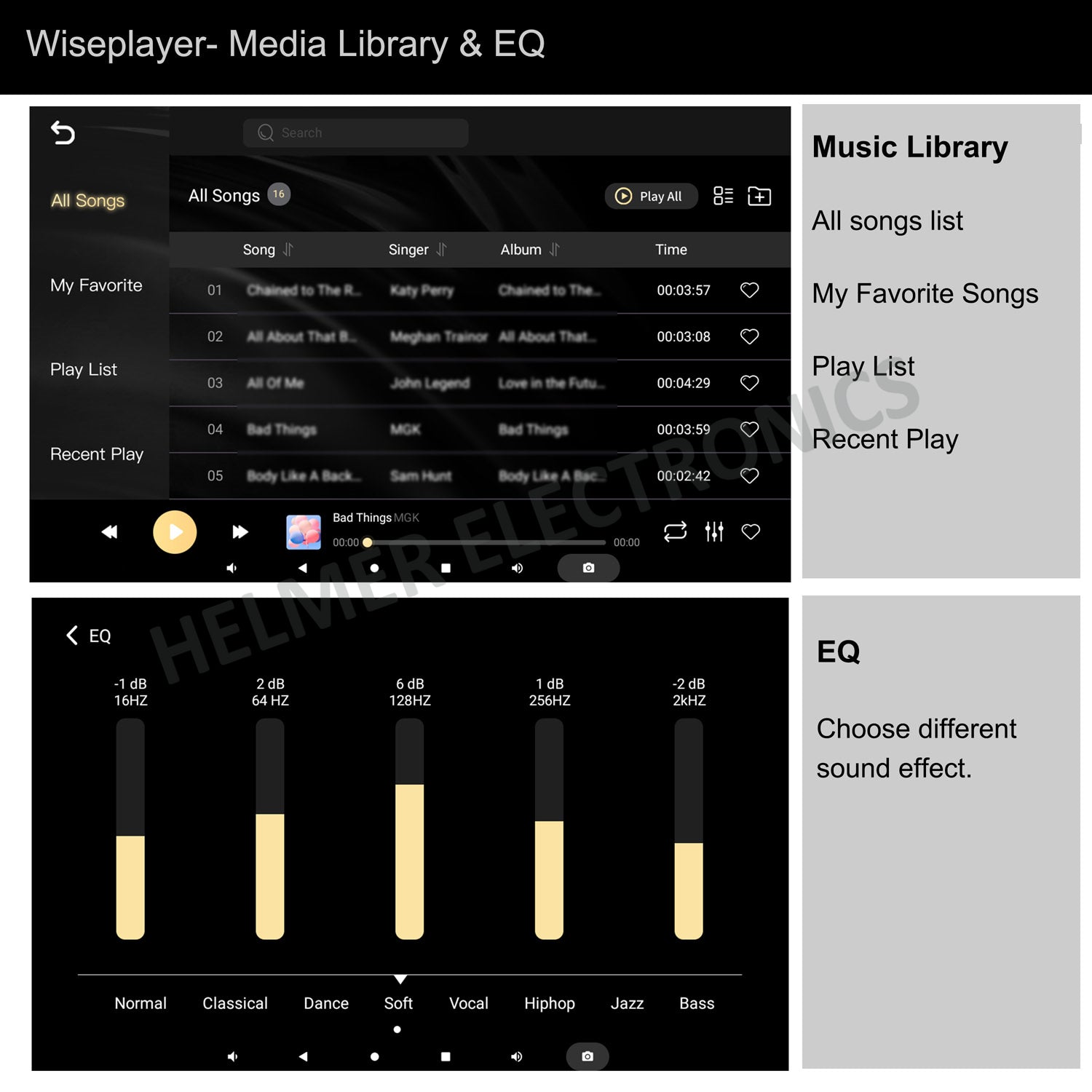

- Music Player
- Video Player
- Time Display
- Set time to play/stop music

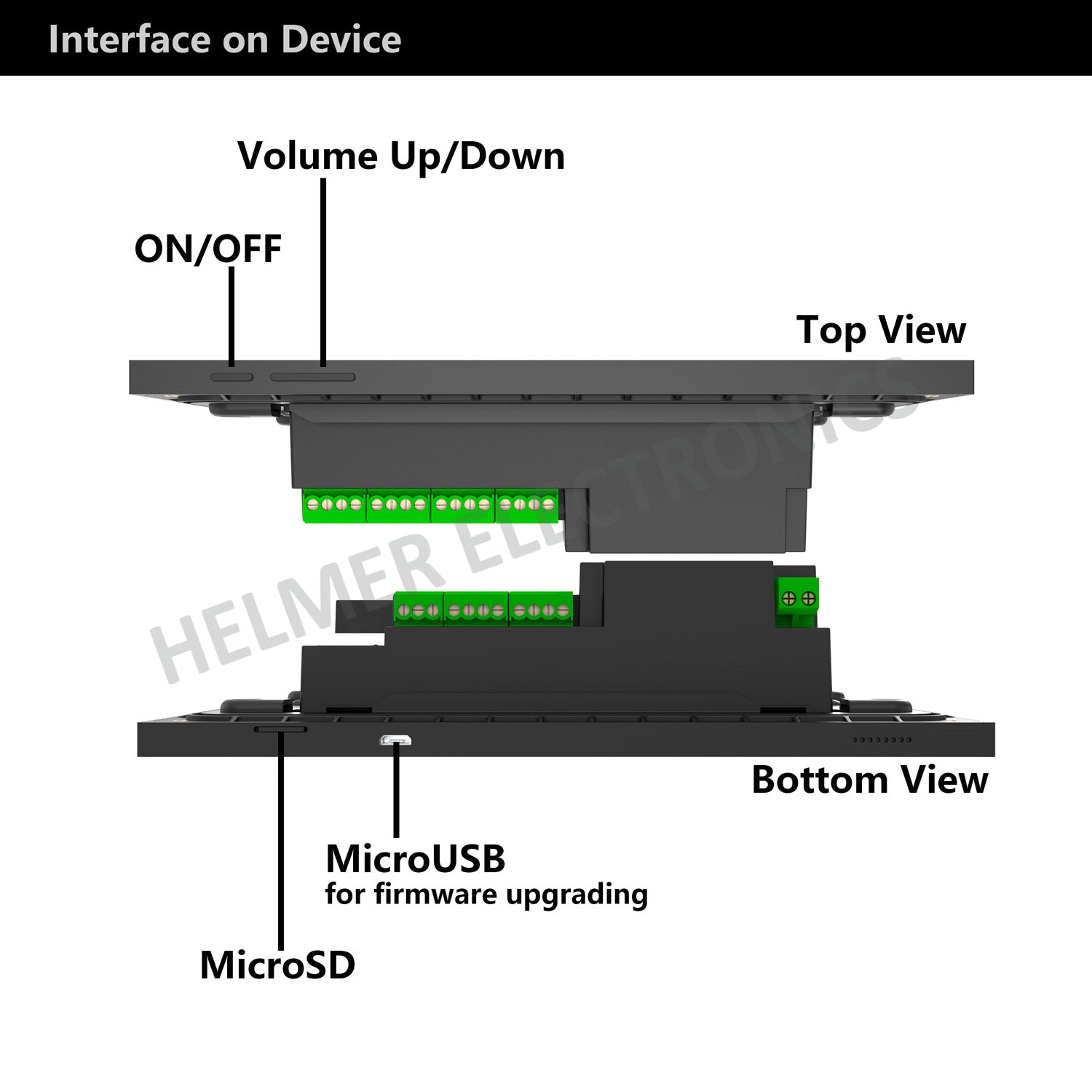

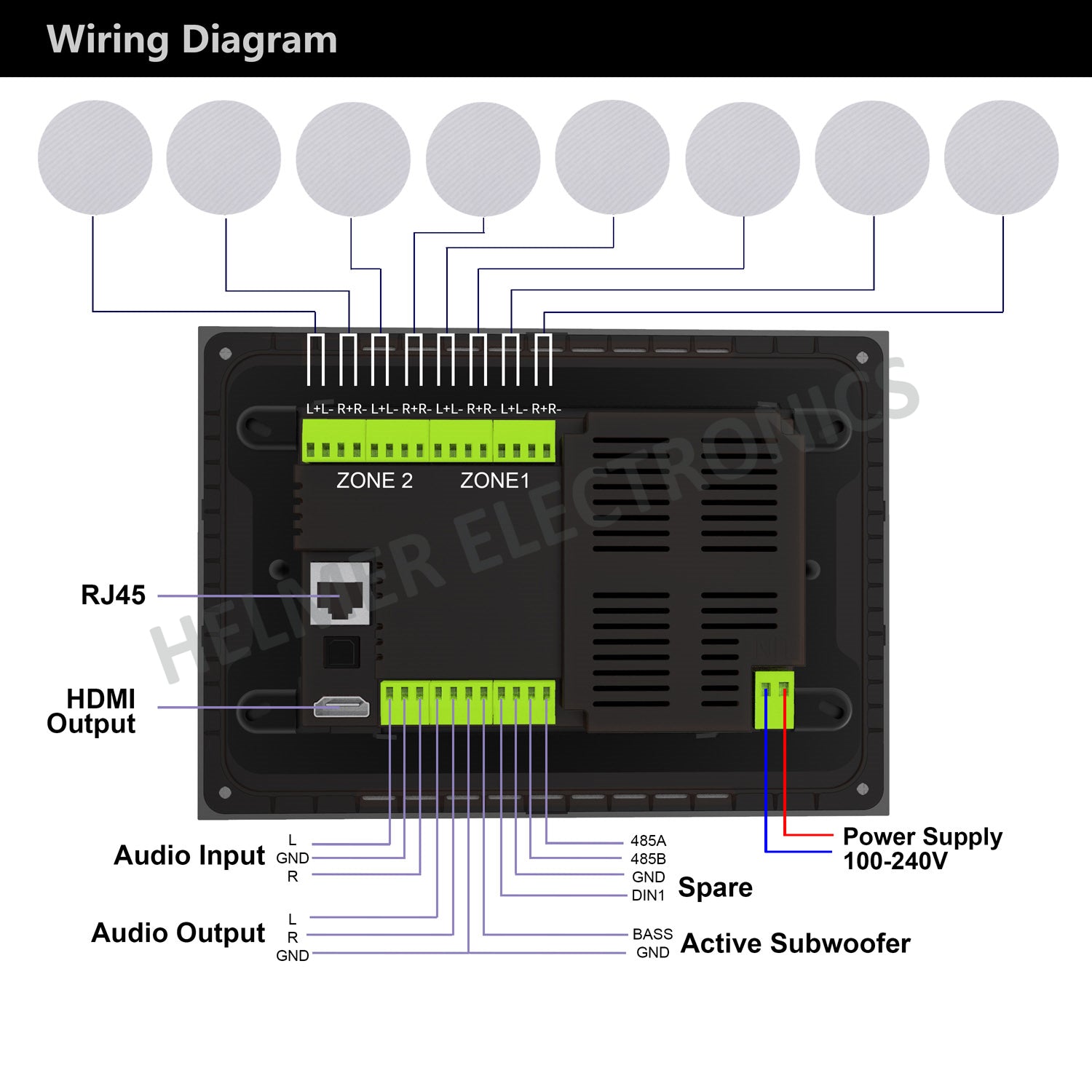

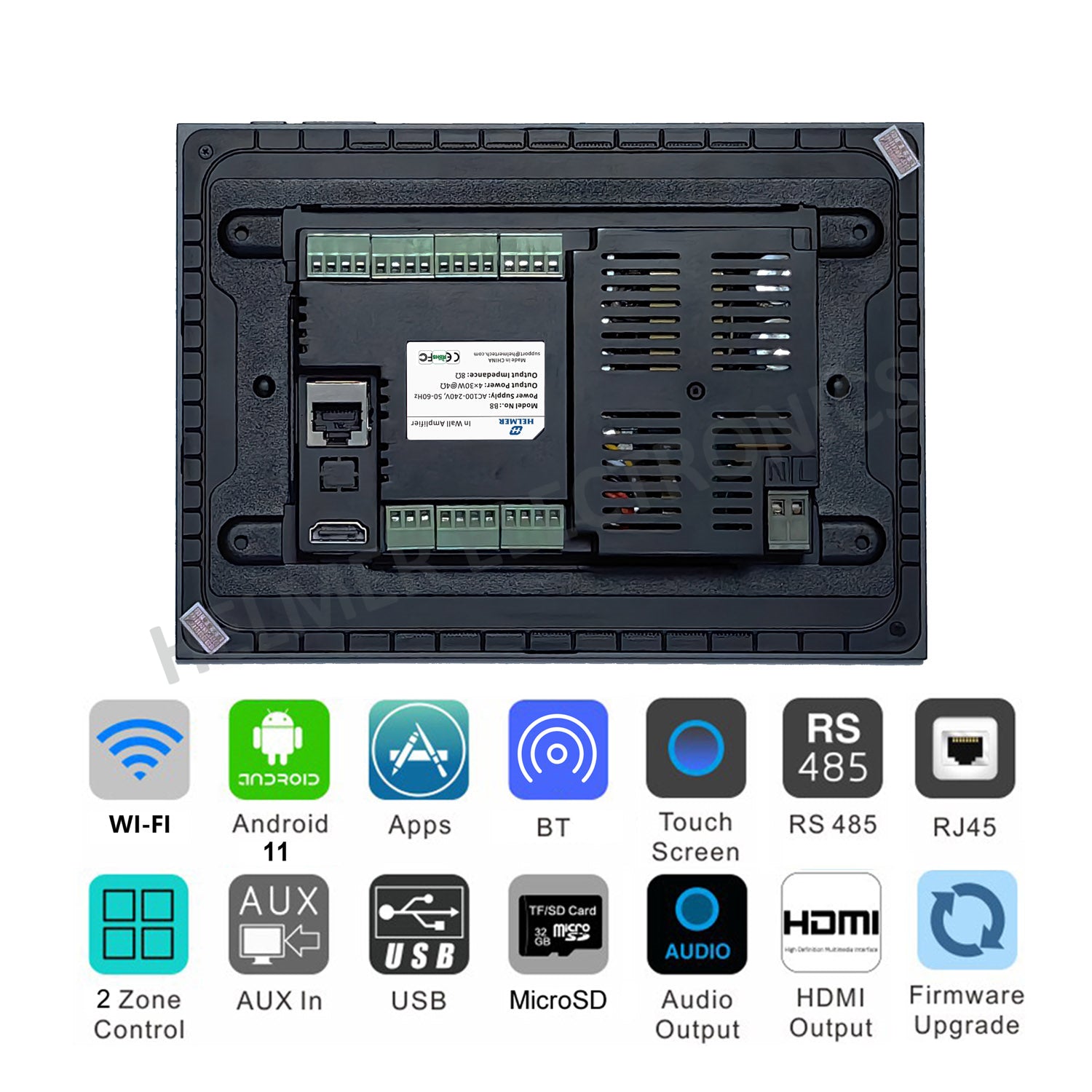

- Screw terminations on the rear of the unit for loudspeakers, power and
- wired line input
- Includes in-line power supply

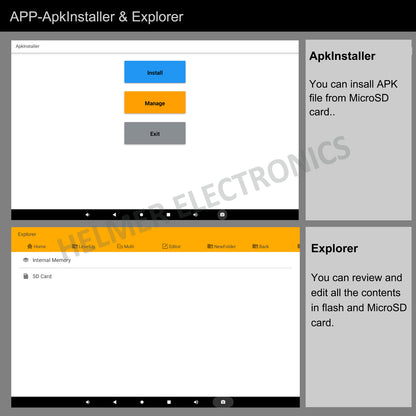

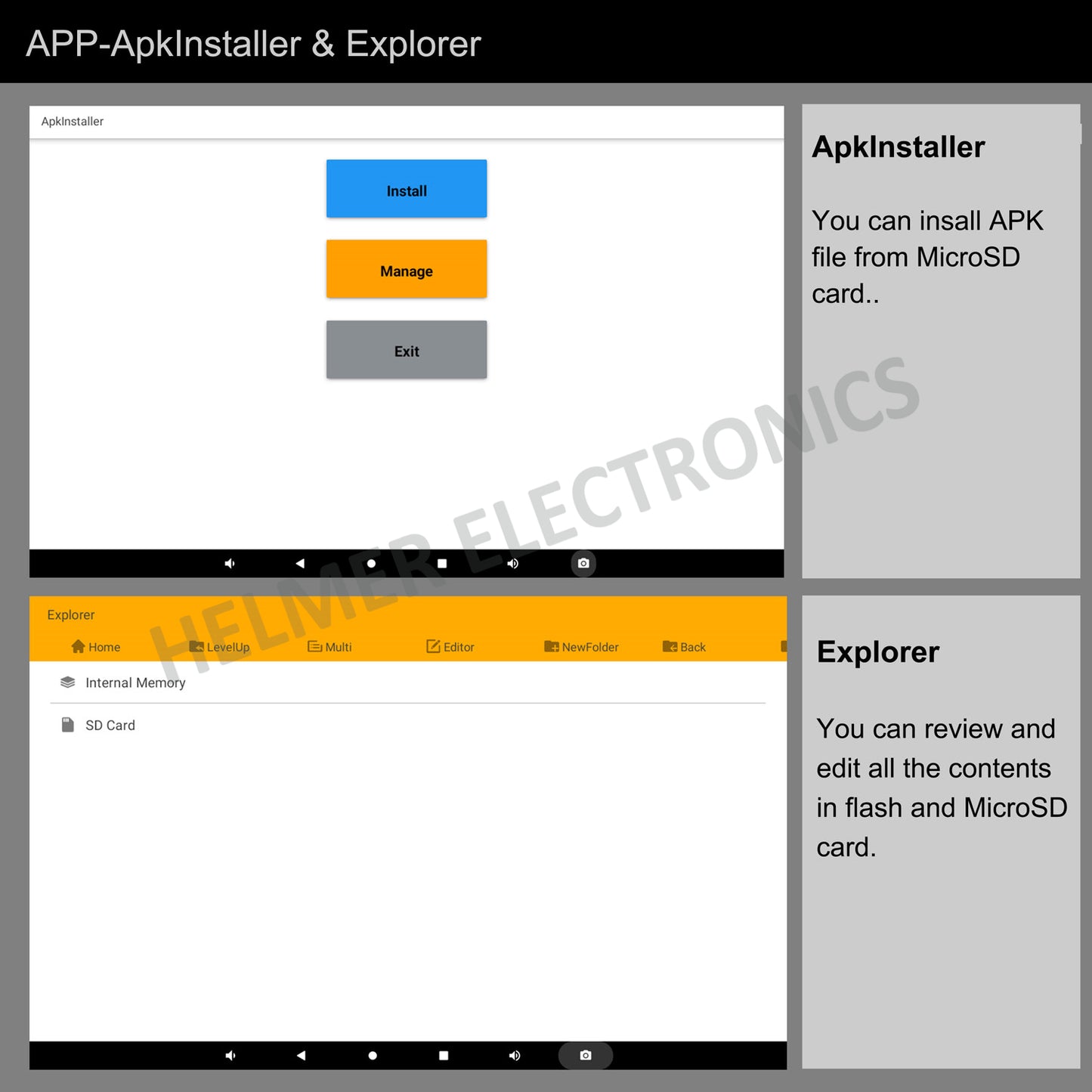

- Software and firmware update
Technical Specifications
-
Screen Size: 8" IPS Touch Screen (1280*800)
-
Power Supply: AC100-240V, 50-60Hz
-
Power Output: 4 x 30W @ 4Ω
-
Output Impedance: 8Ω
-
CPU: RK3568 Cortex A55 quad core, 1.8GHz
-
RAM: 2G, ROM:16G
-
Extended Memory: Extended Memory card up to 128G (FAT32 format)
-

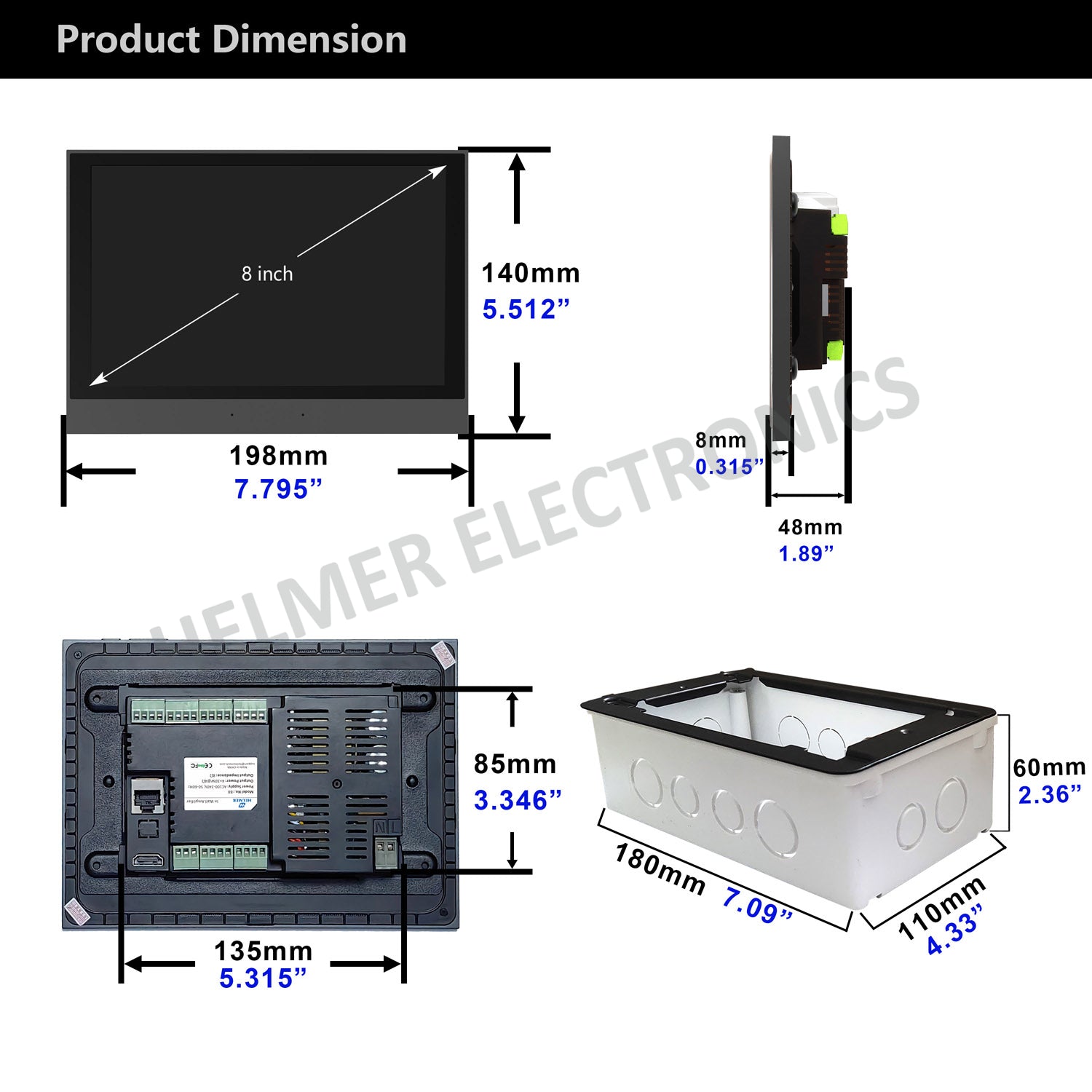

Product Size: 198 x 140 x 48mm(7.795” x 5.512” x 1.89”)

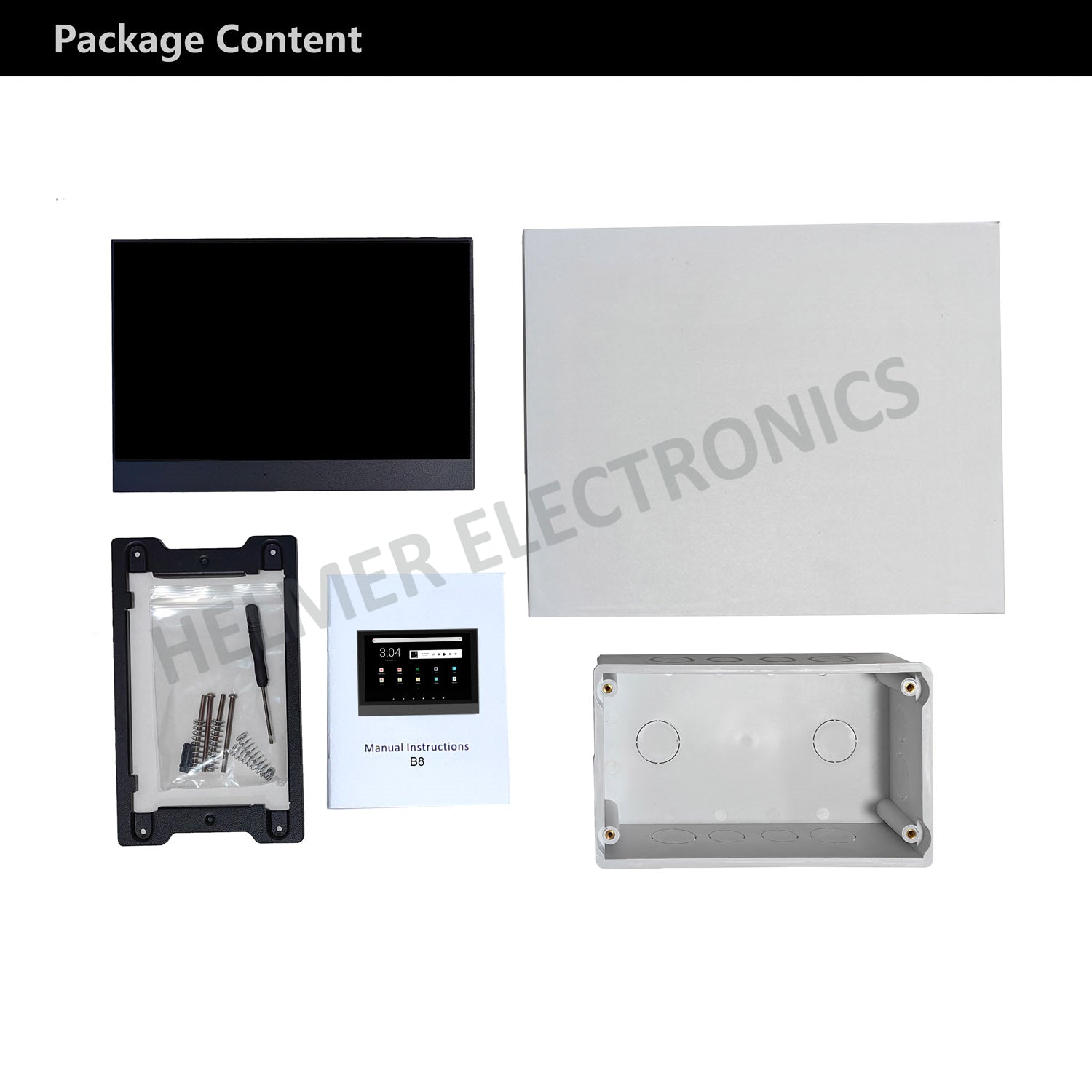

Package Contents
- 1 x amplifier

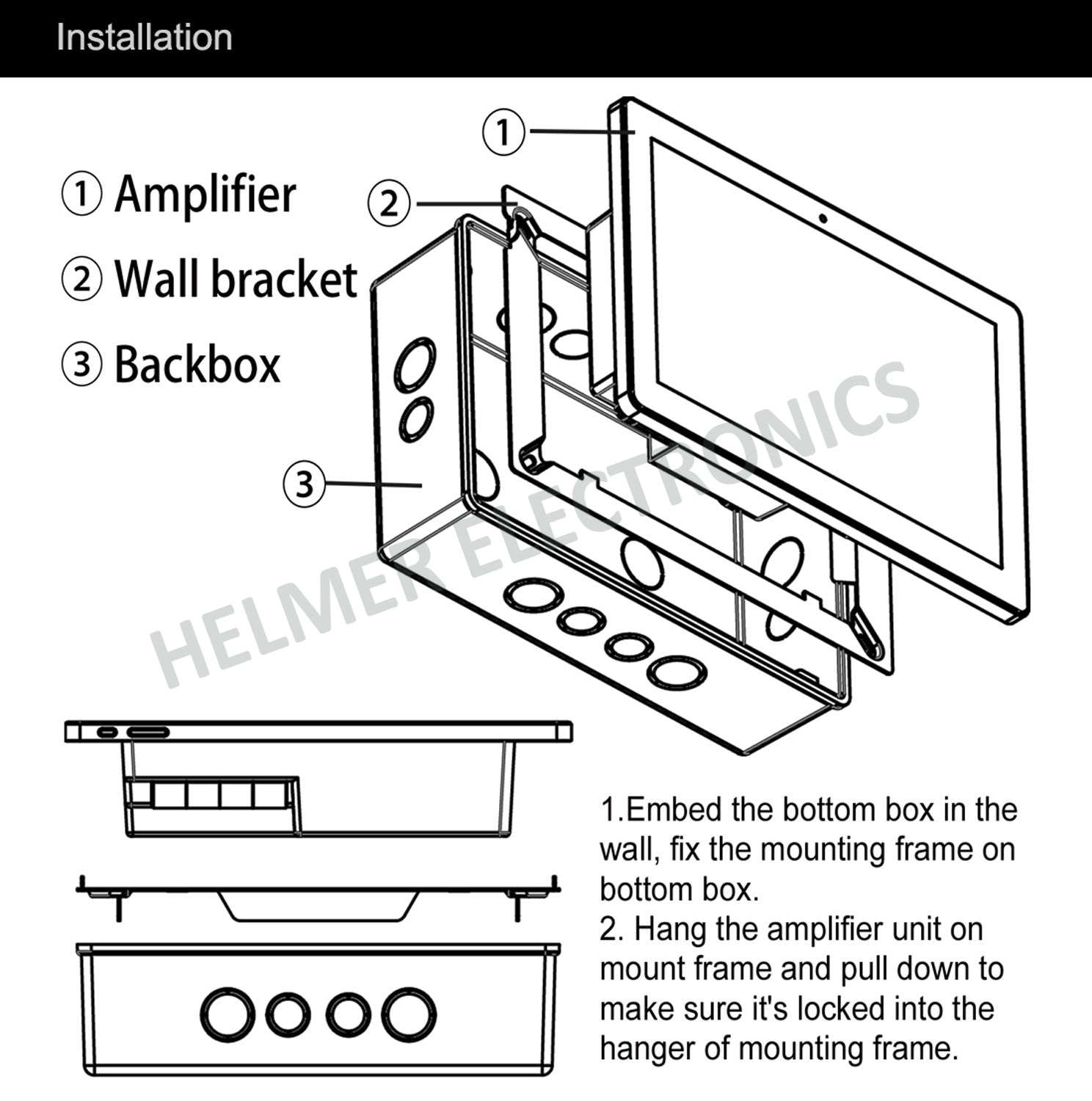

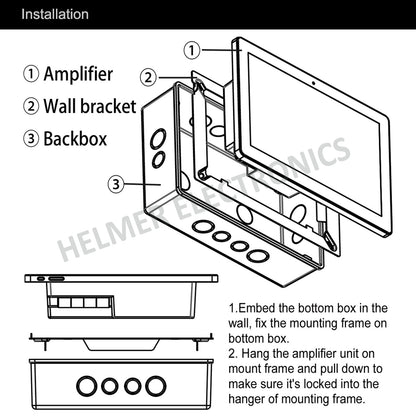

- 1 x mounting frame
- 4 x screws for mounting
- 1 x back box for in wall
- 1 x screw driver
