Model No.: L10L7
Product Features
•Highly efficient Class D amplifier (RMS 2 x 15W)
•BT connectivity for wireless audio input of smart phones, pad, etc
•BT range: ≤10m
•App for modifying the BT name and password.

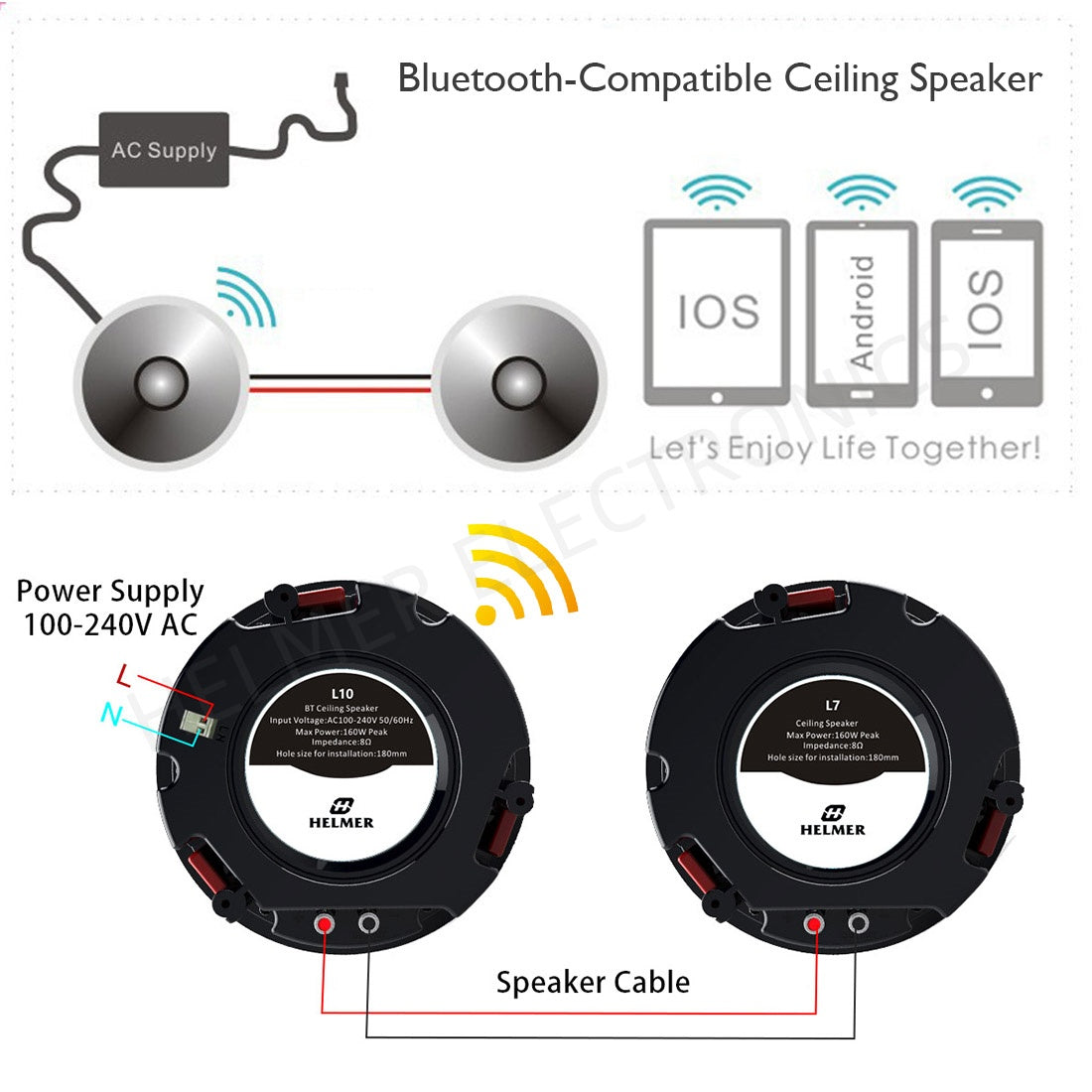

•Screw terminal power input and speaker output connections
•Includes in-line power supply

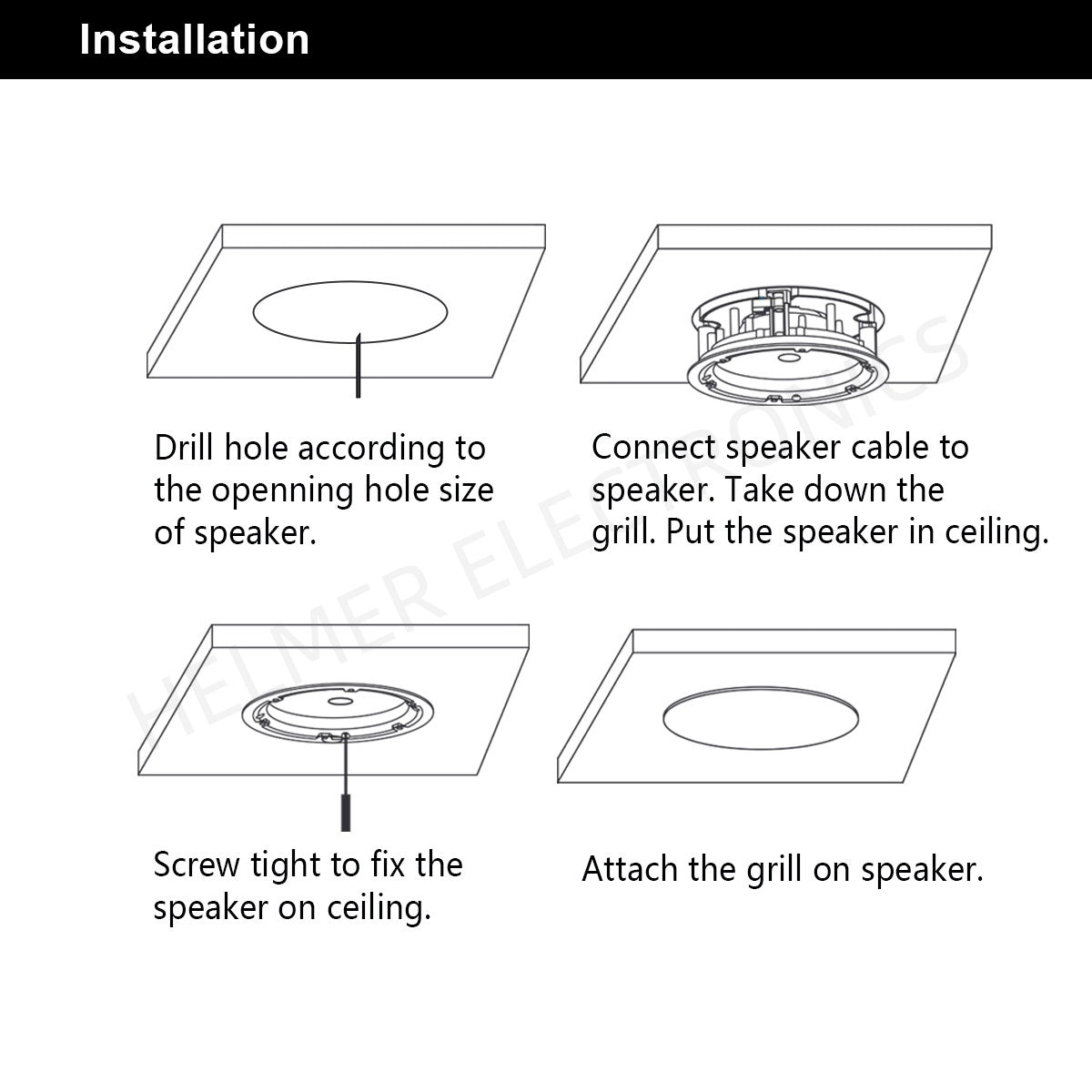

•Easy installation
Technical Specifications

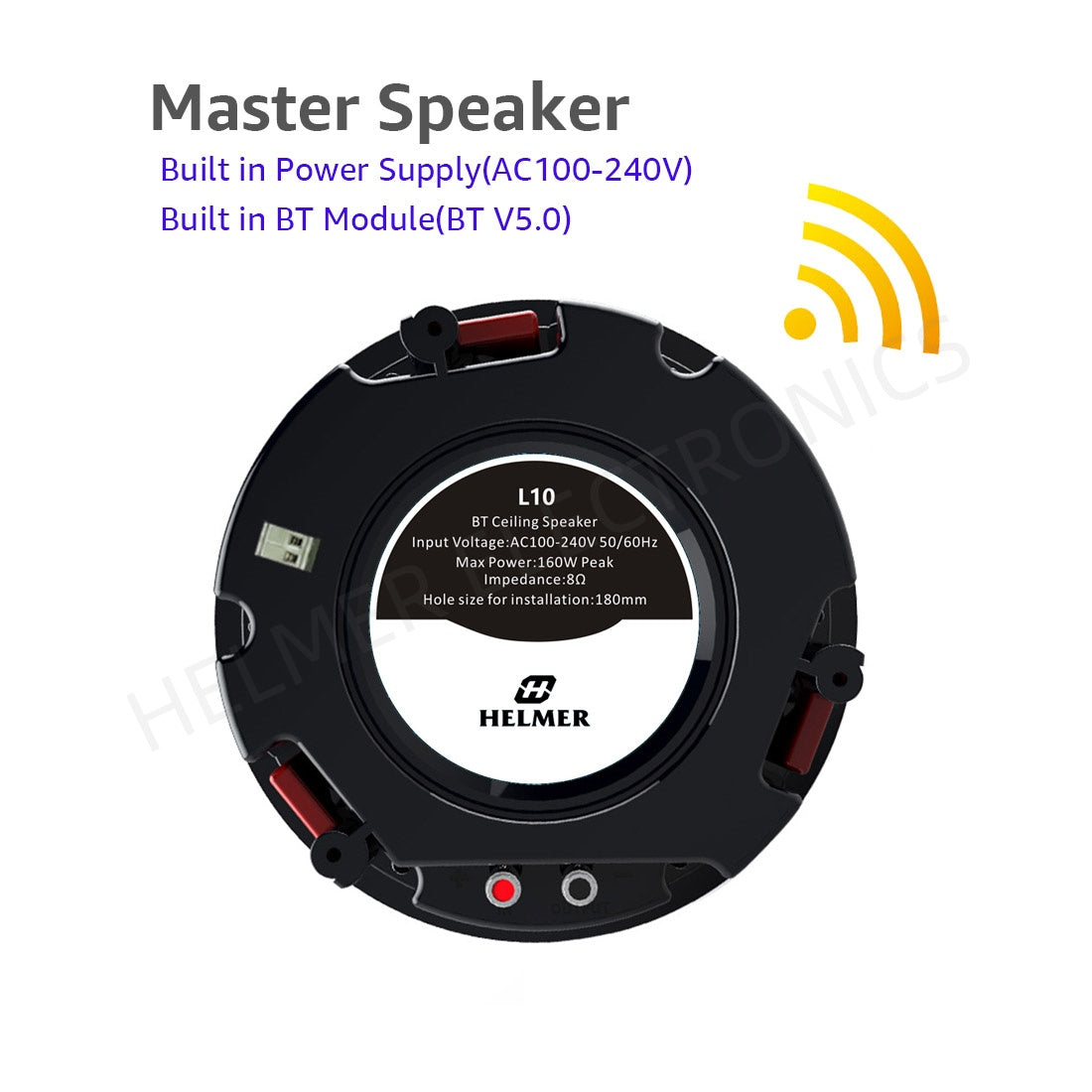

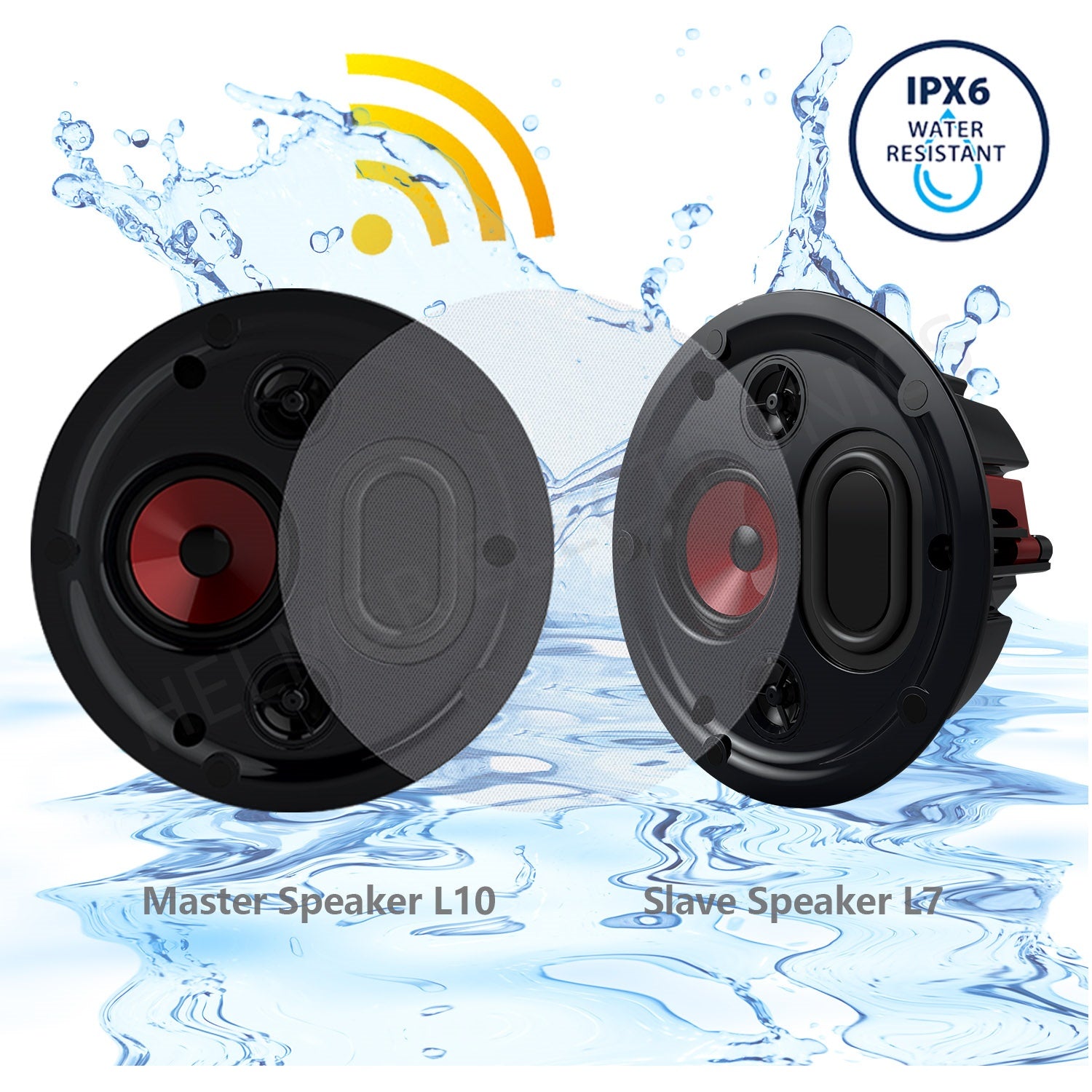

□Master speaker (with built-in BT & amplifier)
Input Voltage: AC100-240V 50/60Hz
Amplifier Output RMS Power: 2 x 15W
BT Version 5.0
Impedance: 8Ω

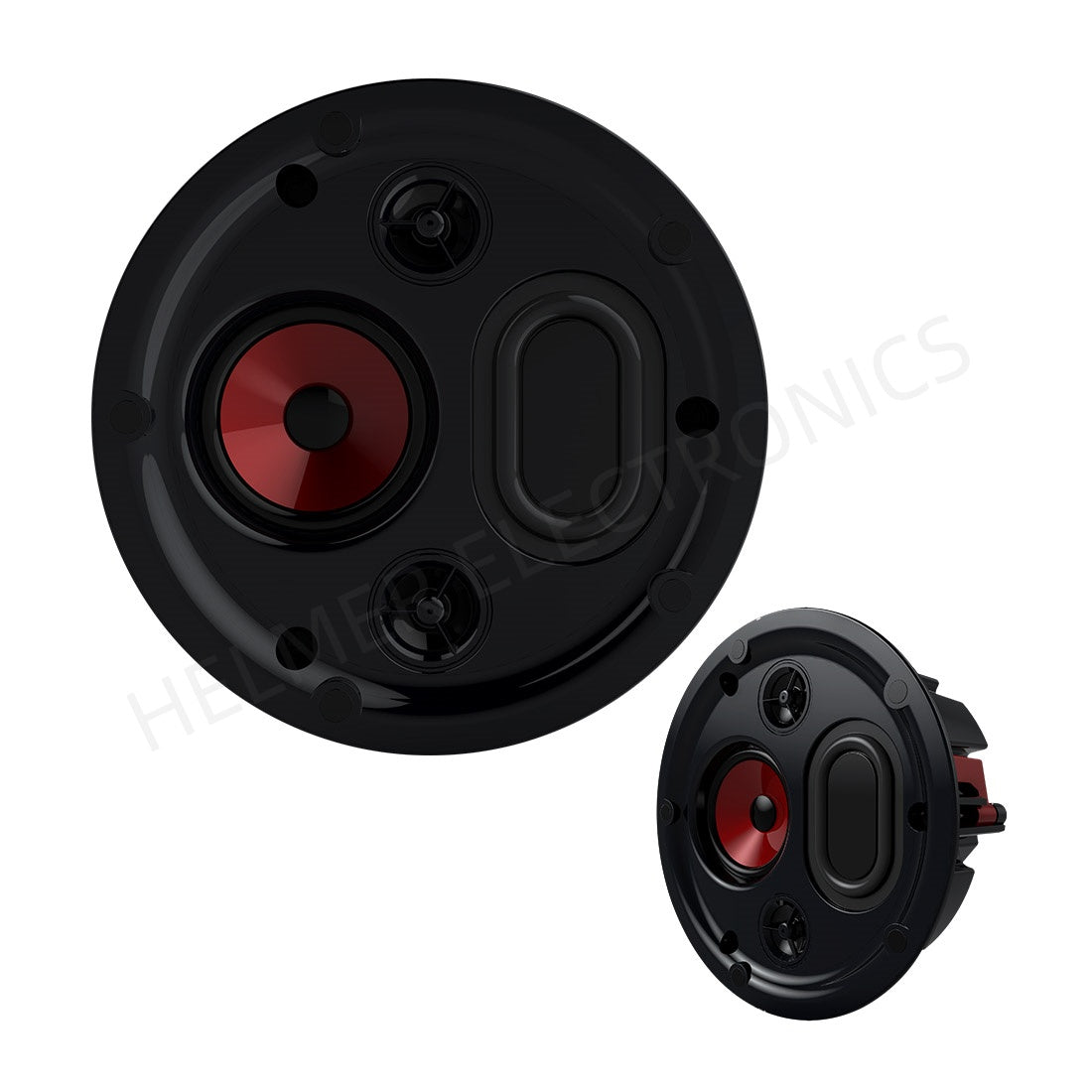

Speaker Unit: 1 x 1” PEI tweeter + 1 x 3”woofer + 1 x Passive Radiator (60x90)
Speaker Rated Power: 18W
Frequency Response: 45Hz-20KHz
Sensitivity: 87 ± 3dB
BT Transmission Distance: ≤10m

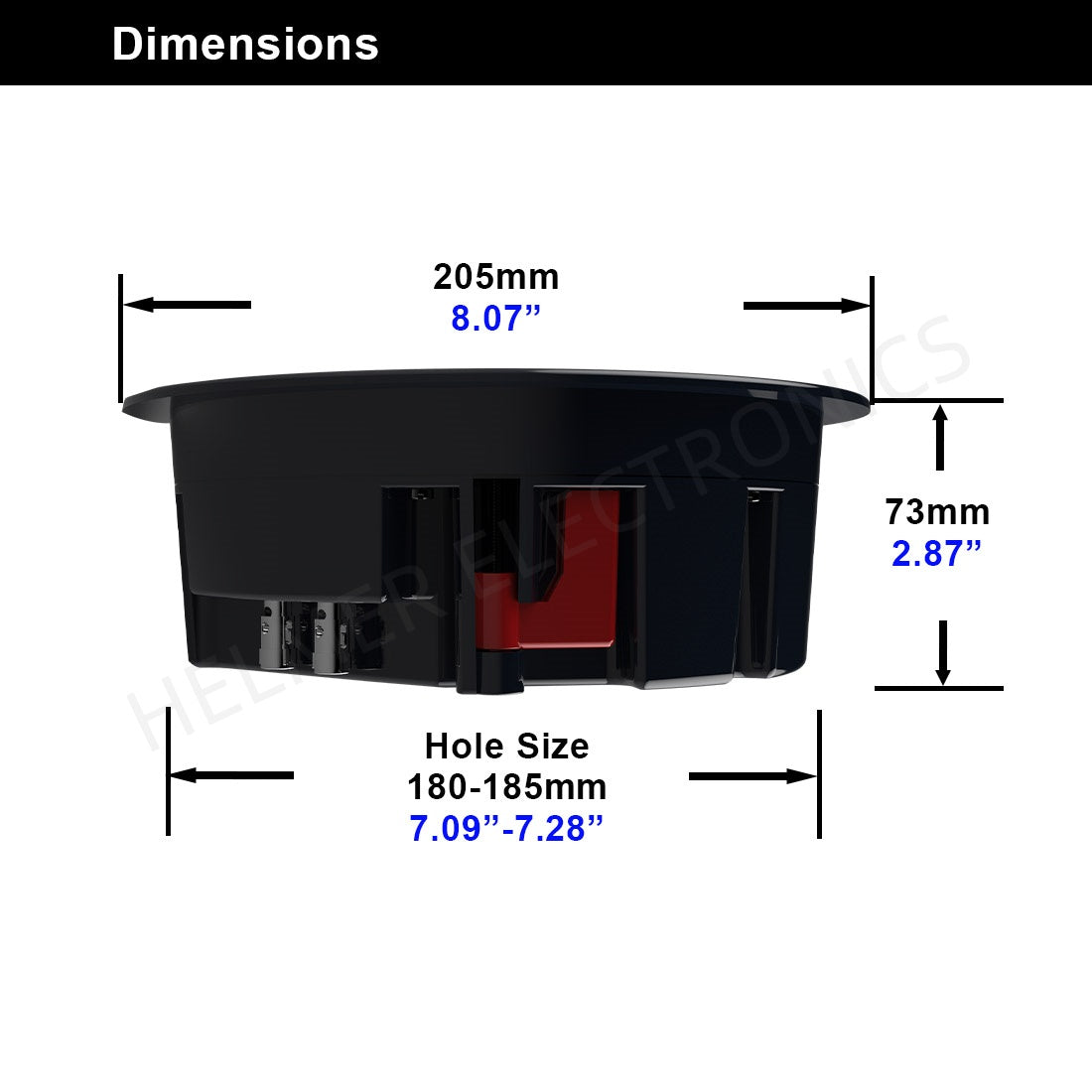

Product size: 205(diameter) x 73(depth) mm

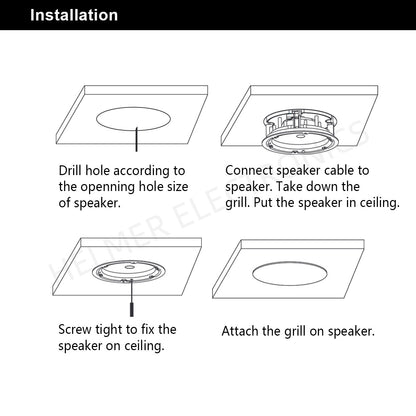

Hole size for installation: 180-185mm

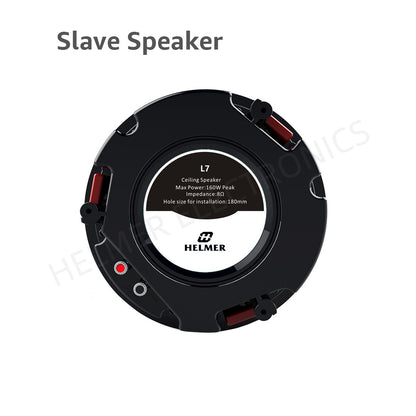

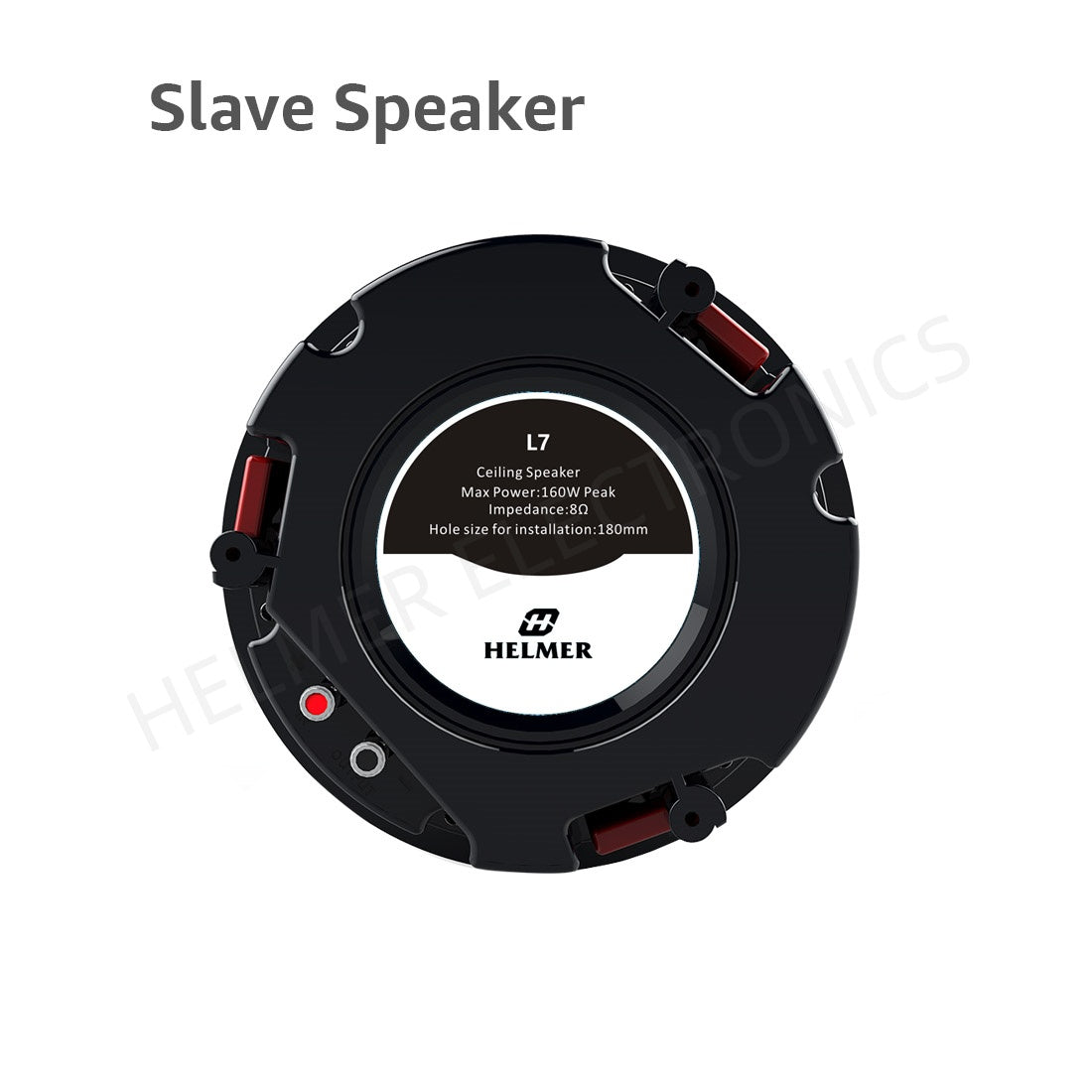

□Slave Speaker (passive speaker)
Rated Power: 18W
Rated Impedance: 8Ω
Frequency Response: 45Hz~20KHz
Sensitivity: 87±3DB
Speaker Unit: 1x1” PEI tweeter + 1 x 3” woofer + + 1 x Passive Radiator (60x90)
Product size: 205(diameter) x 73(depth) mm
Hole size for installation: 180-185mm
Package Content

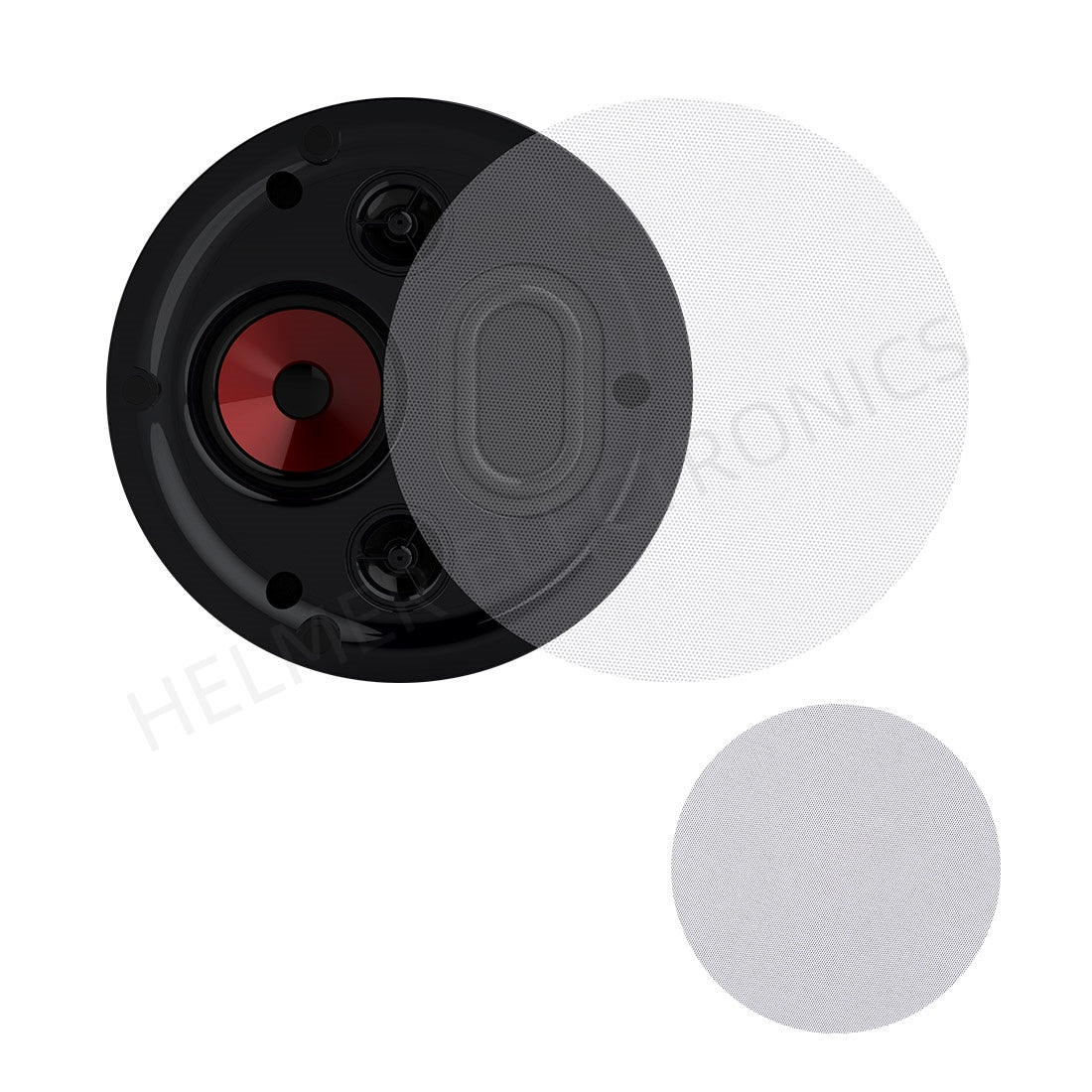

1 x Master Speaker with grill and cardboard template
1 x Slave Speaker with grill and cardboard template
