Product description

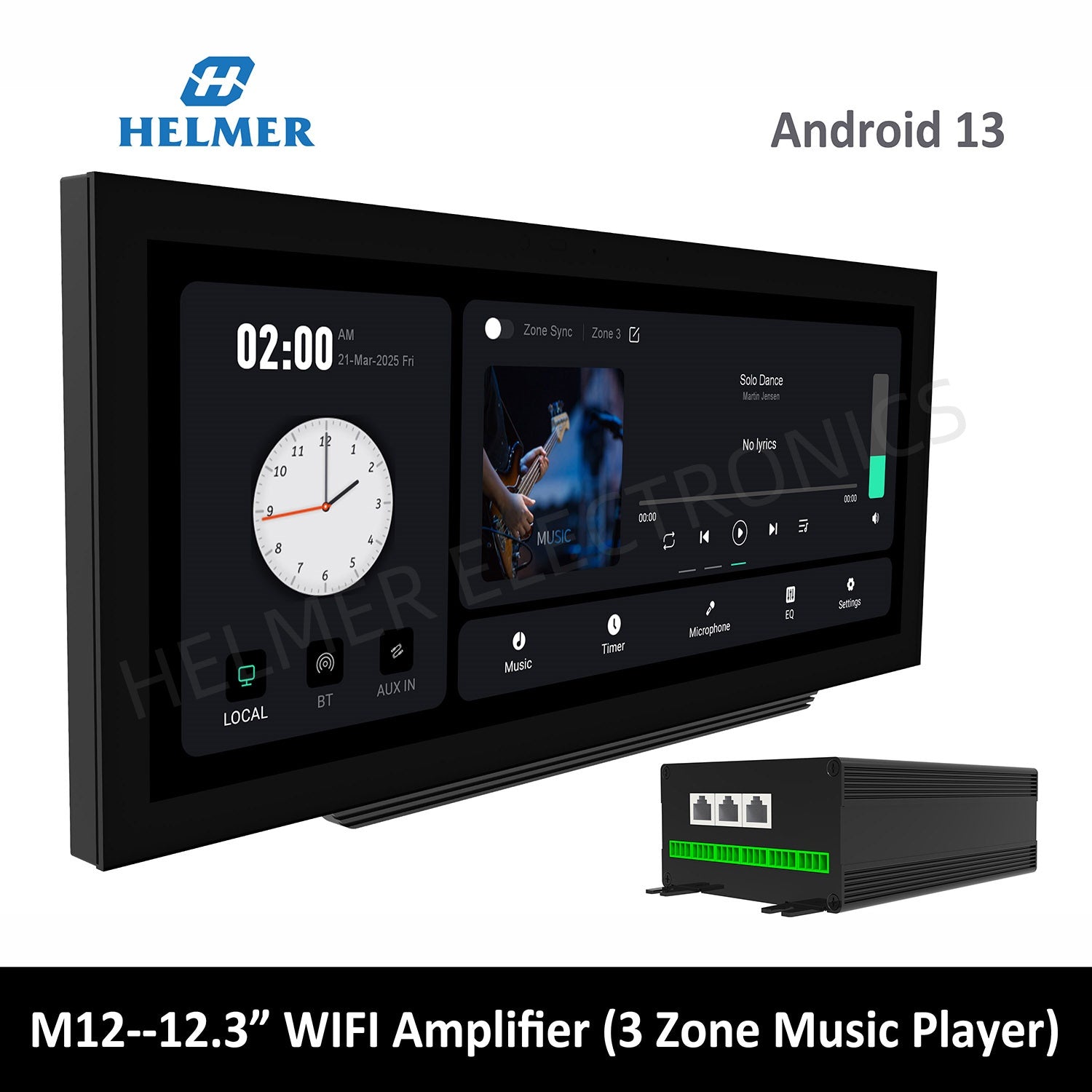

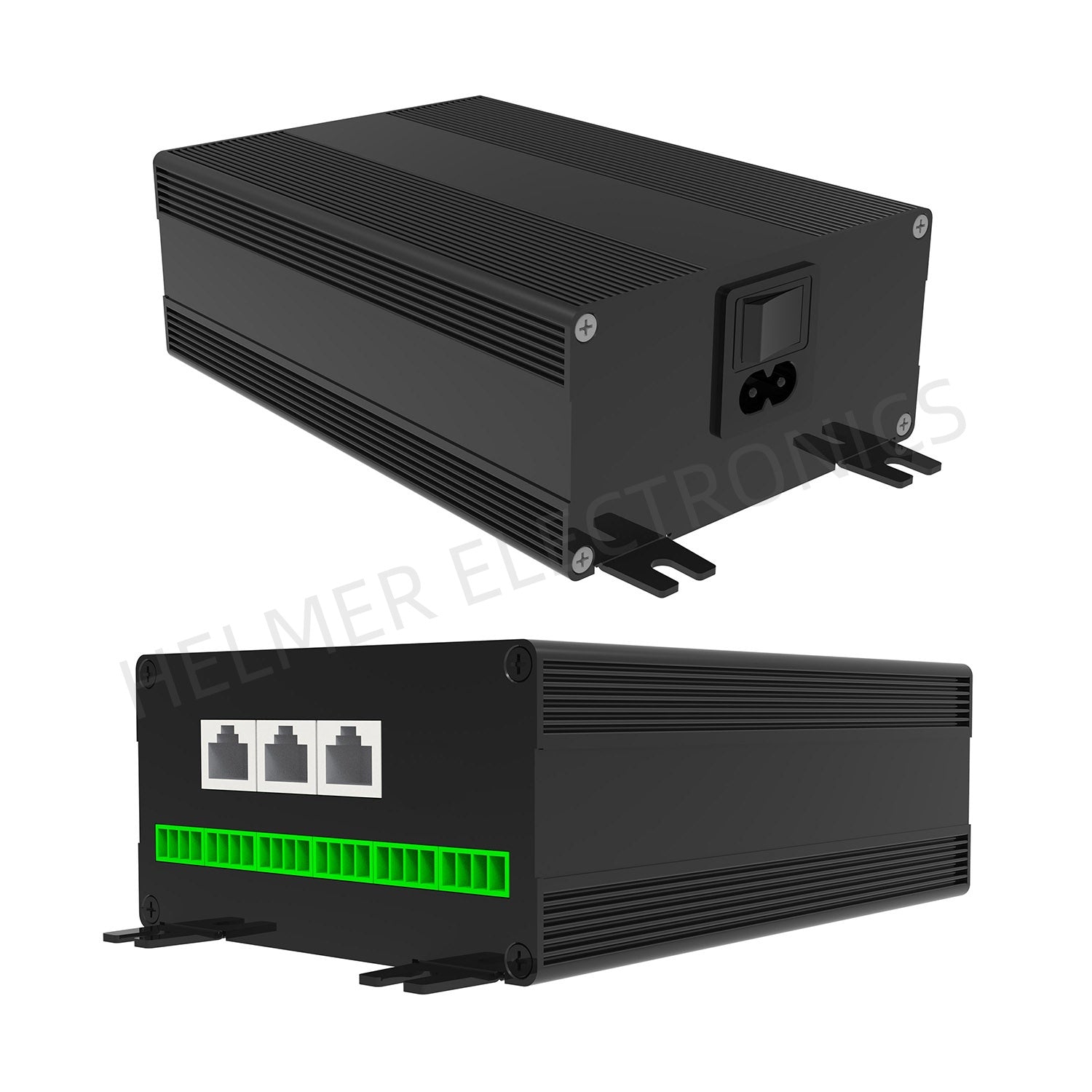

Model No.: M12(wall tablet)+L2(amplifier box)

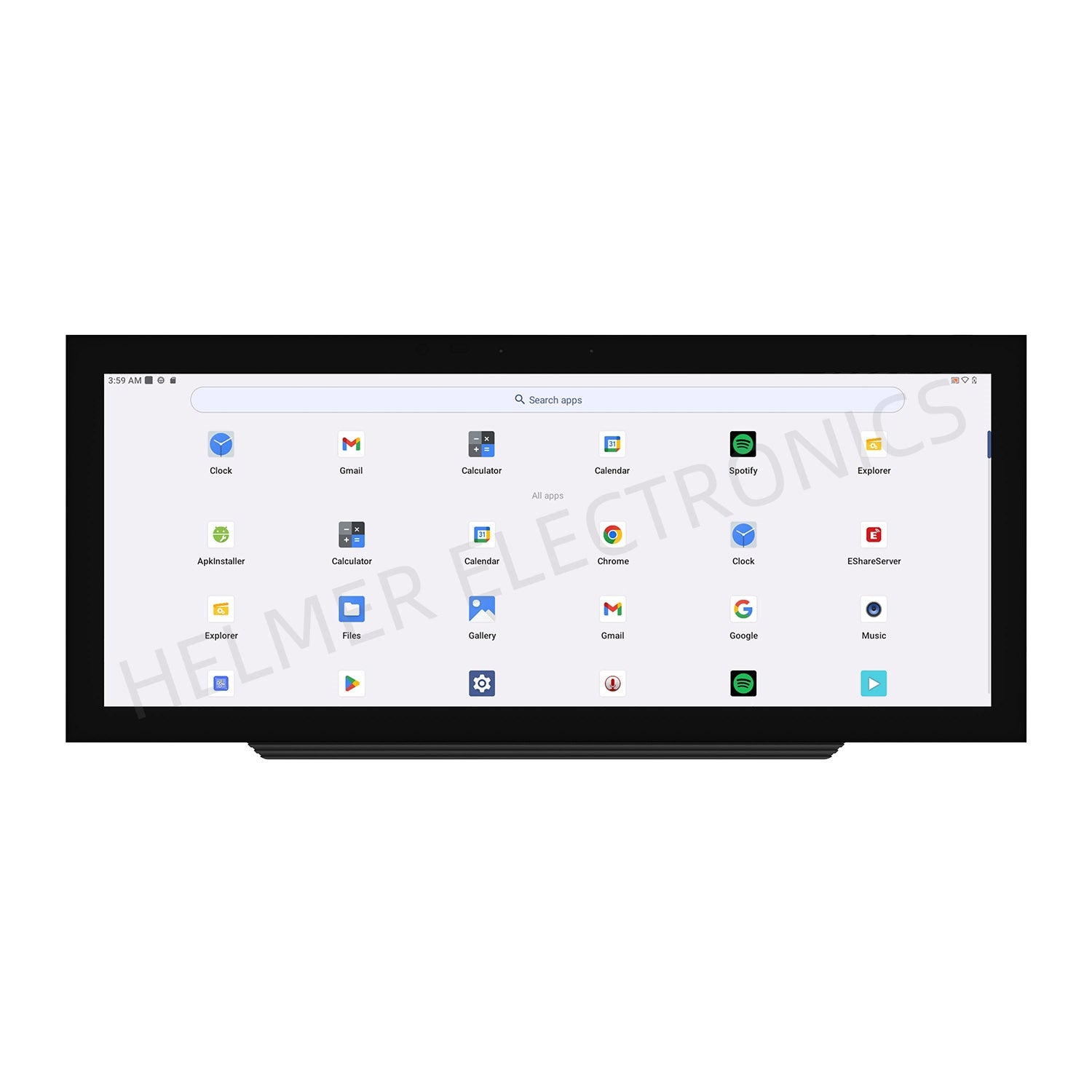

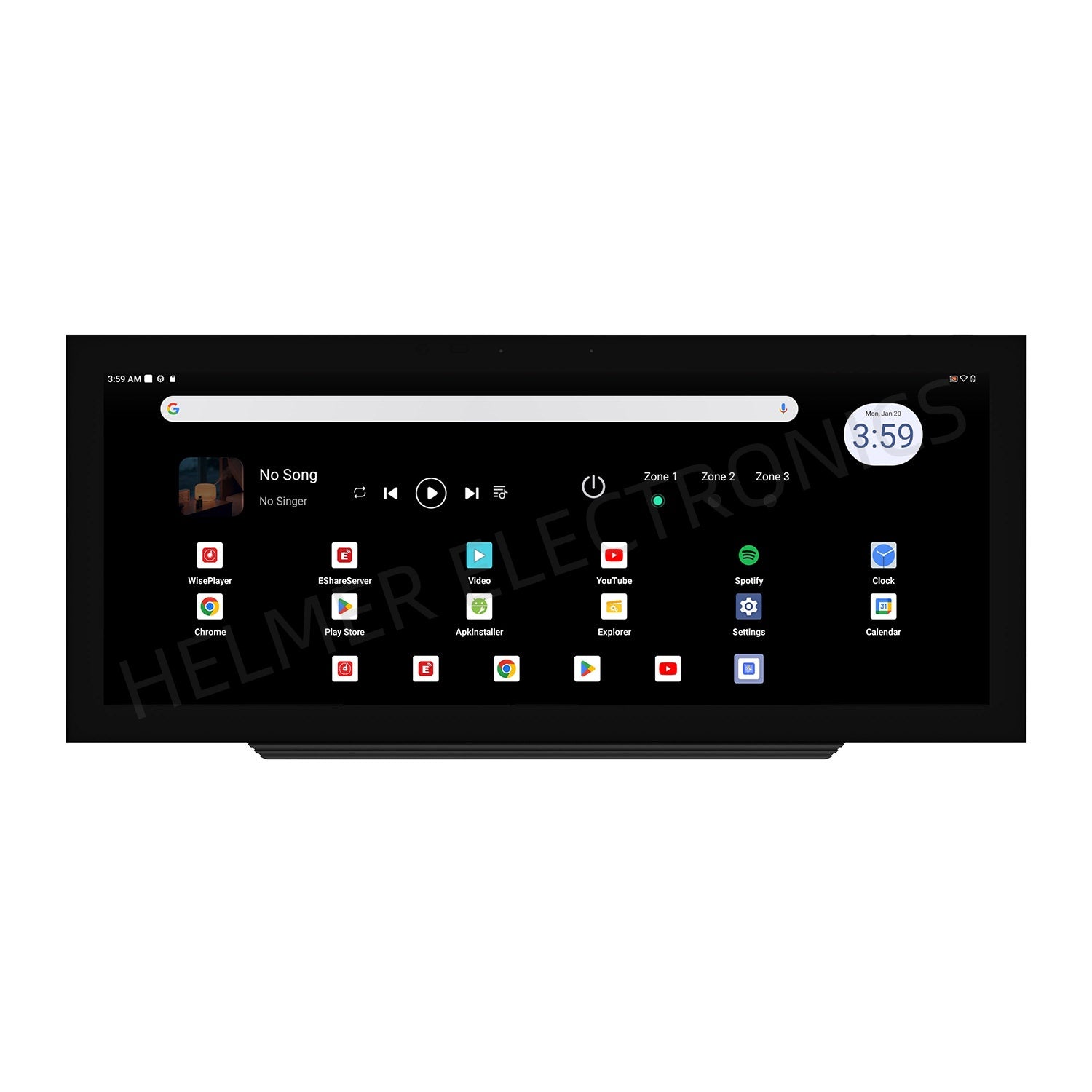

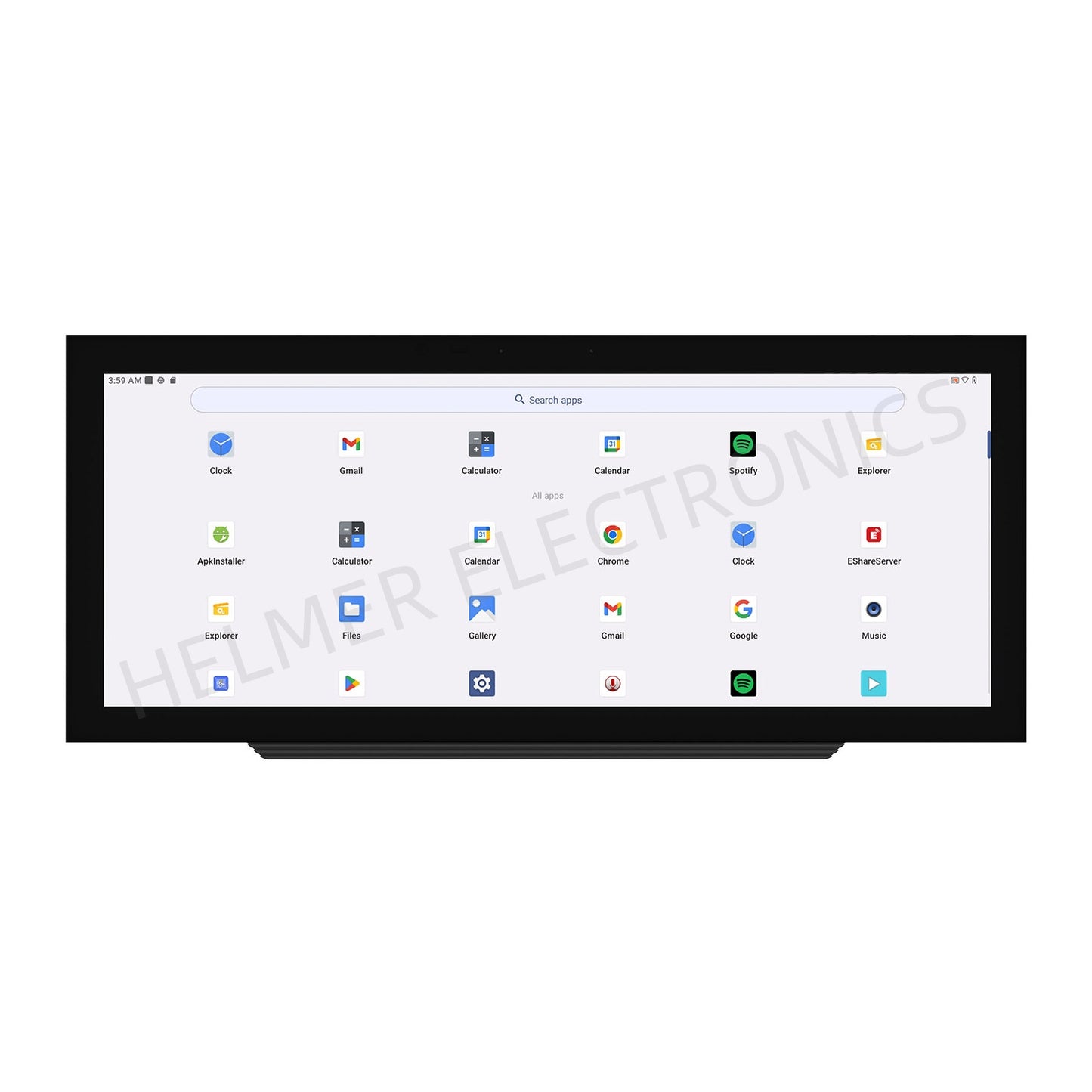

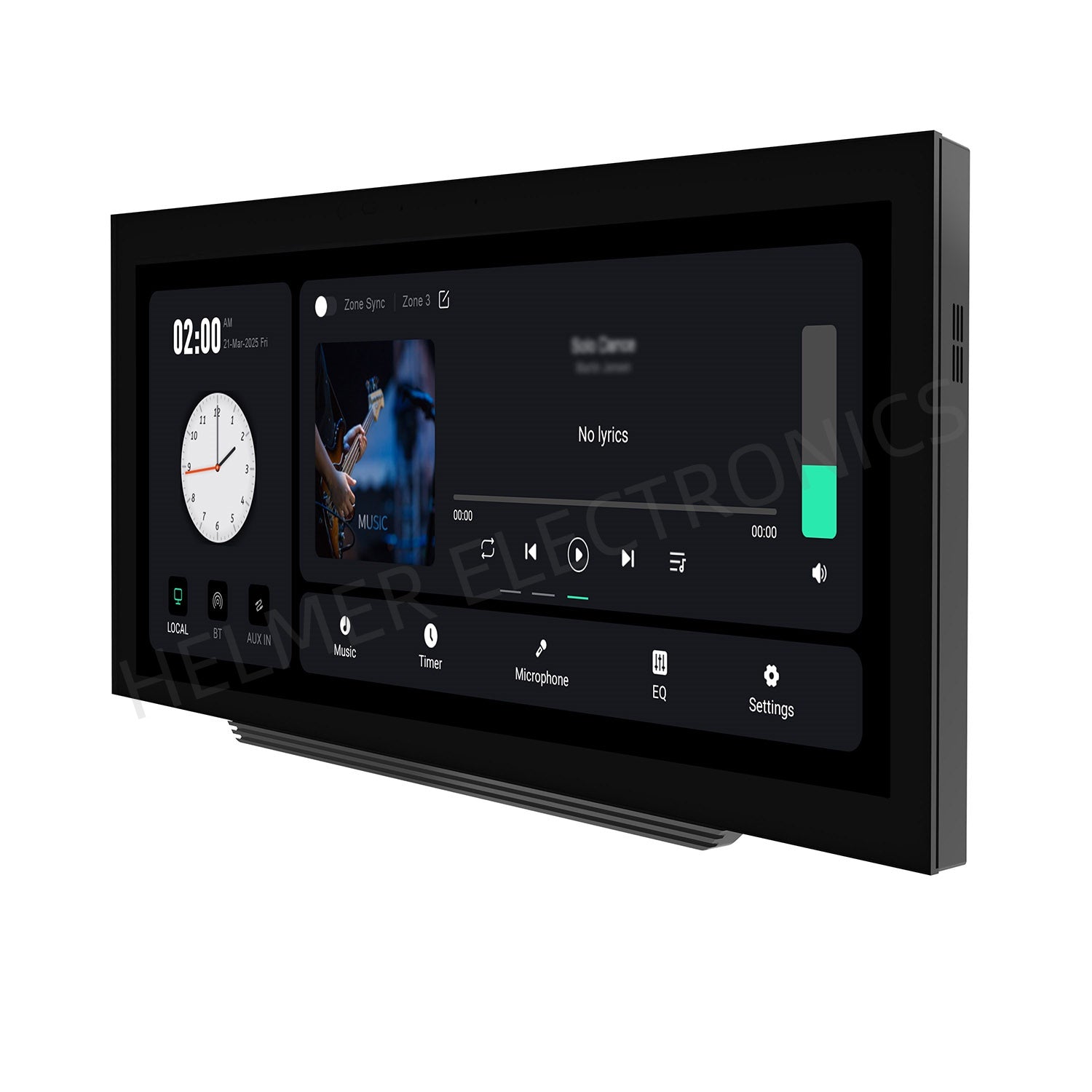

-It’s 12.3” touch screen tablet(M12) with android 13 system that you can install preferred apps like youtube, Spotify and other smart home control apps to use it as wall control tablet.

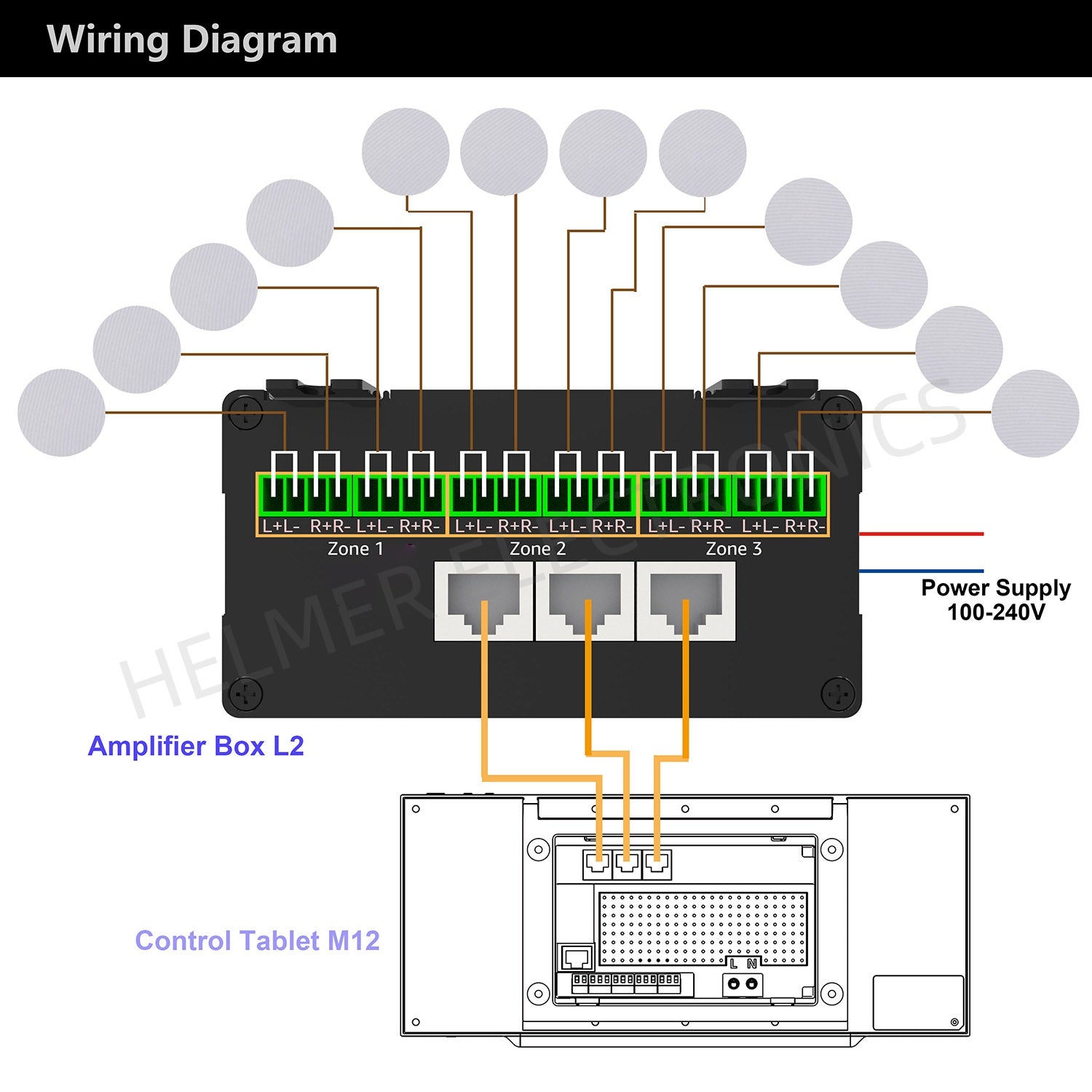

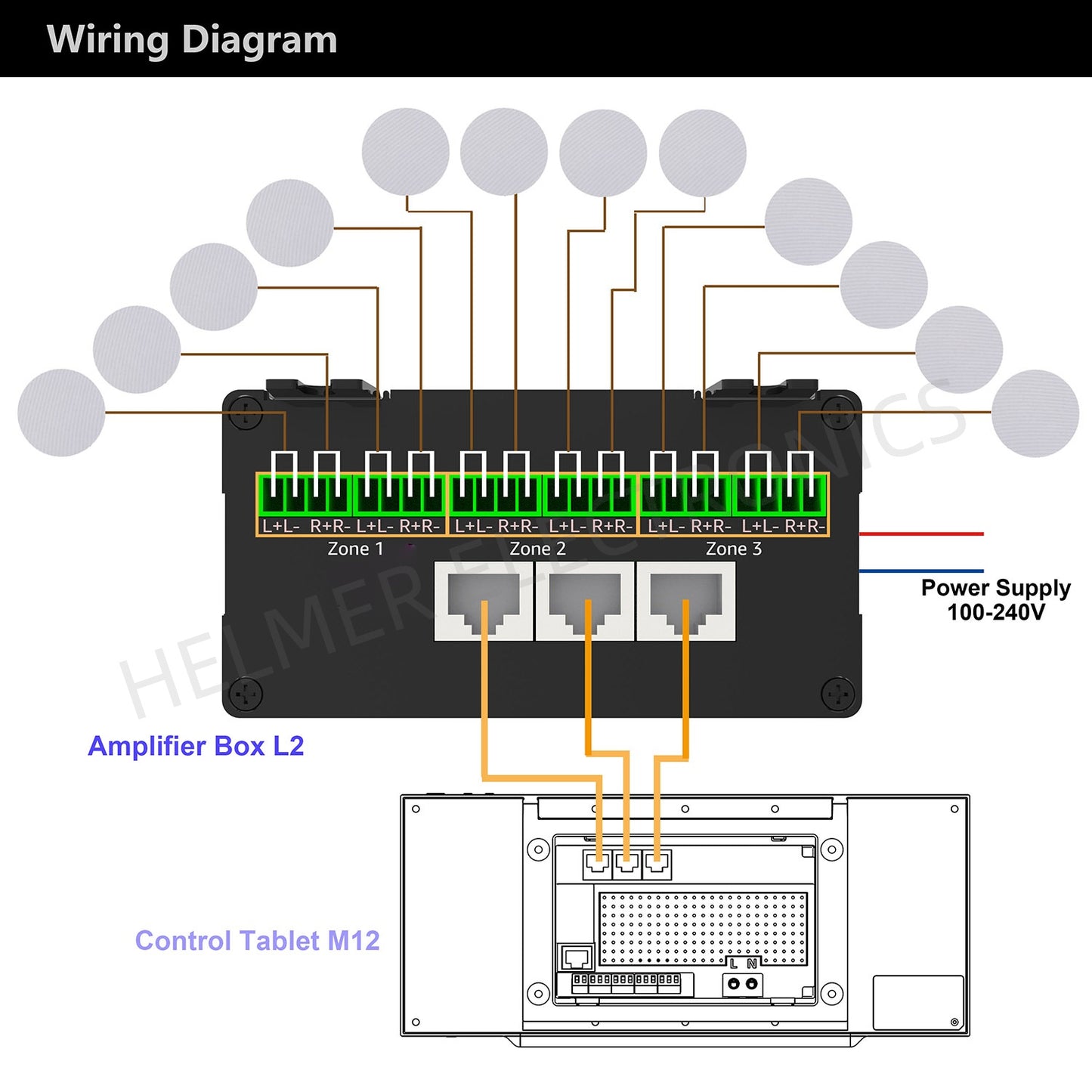

- With connecting to the 3 zones amplifier (L2), it can connect with up to 12 speakers. For each zone, you can play different audio source or you can synchronize them to play same music.

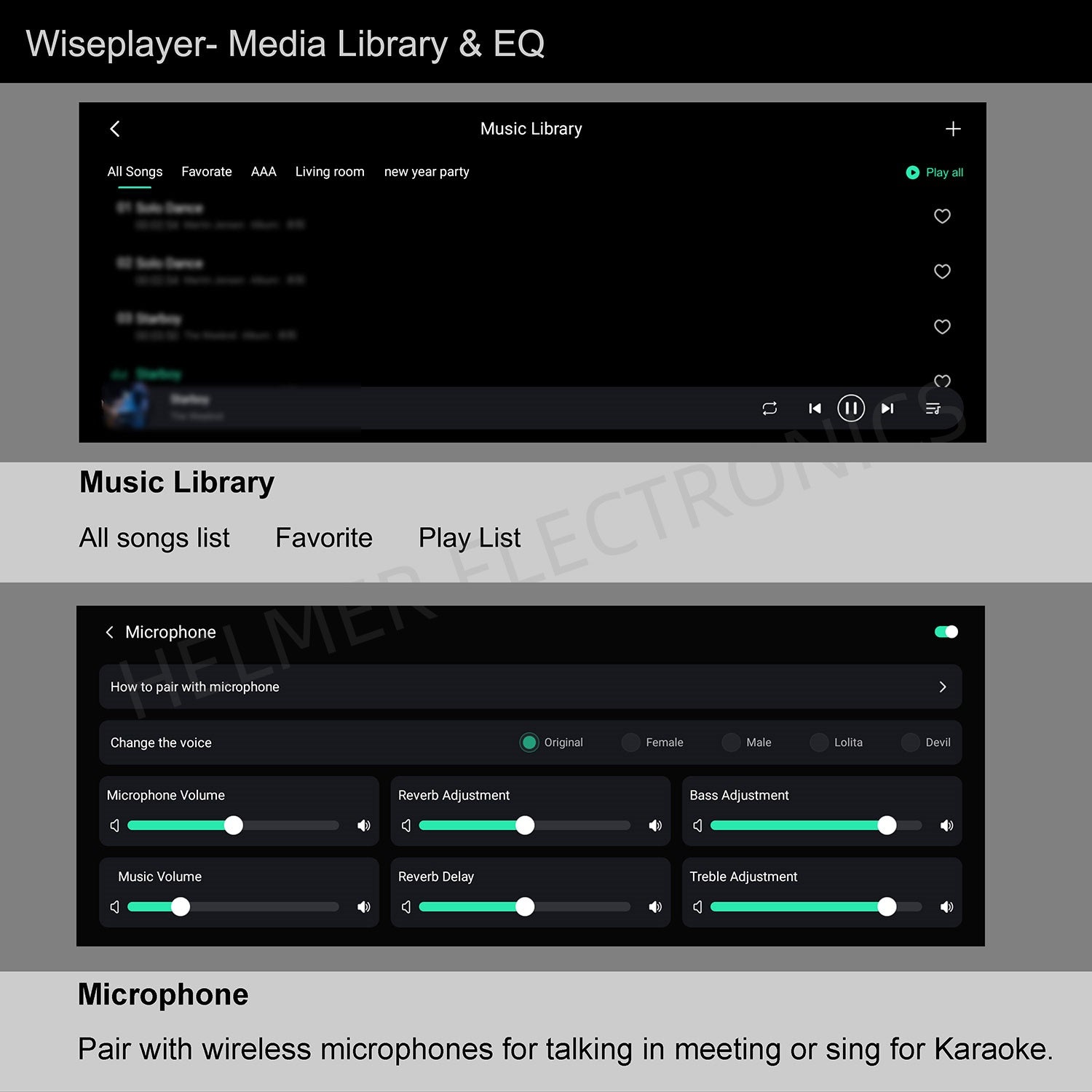

- By connecting with microphone, you can use it as Karaoke, sing with the music playing with same time. Or talk with microphone for meeting.
- With HDMI output, you can have video playing on amplifier but watch on TV and have amazing sound through ceiling speakers.
- With built in ambient light that dances and flashes in sync with your favorite music, it transforms your space into a lively and vibrant atmosphere.

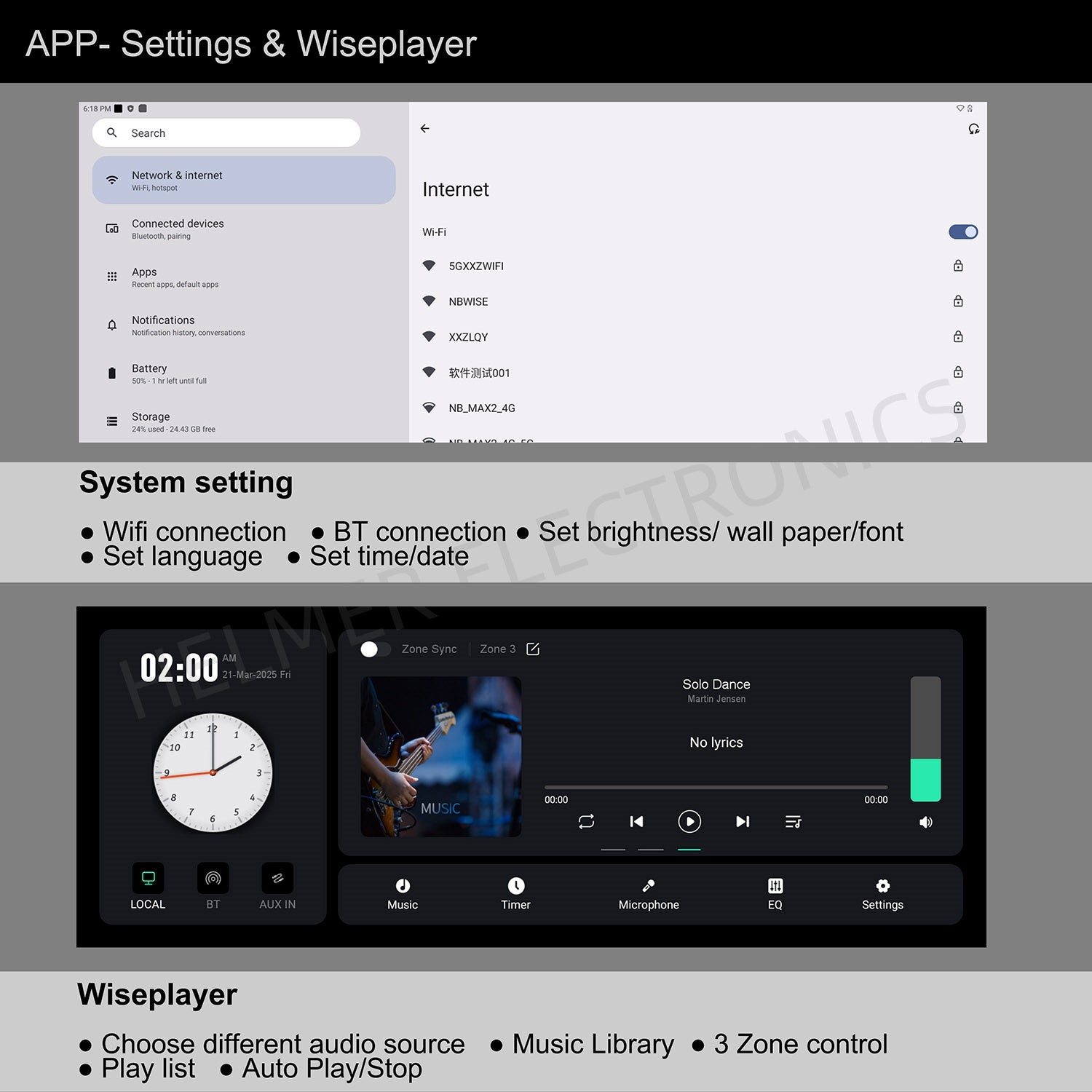

LANGUAGE SUPPORT: System multi language you can set in android system settings. Built in audio control app WISEPLAYER support English only.

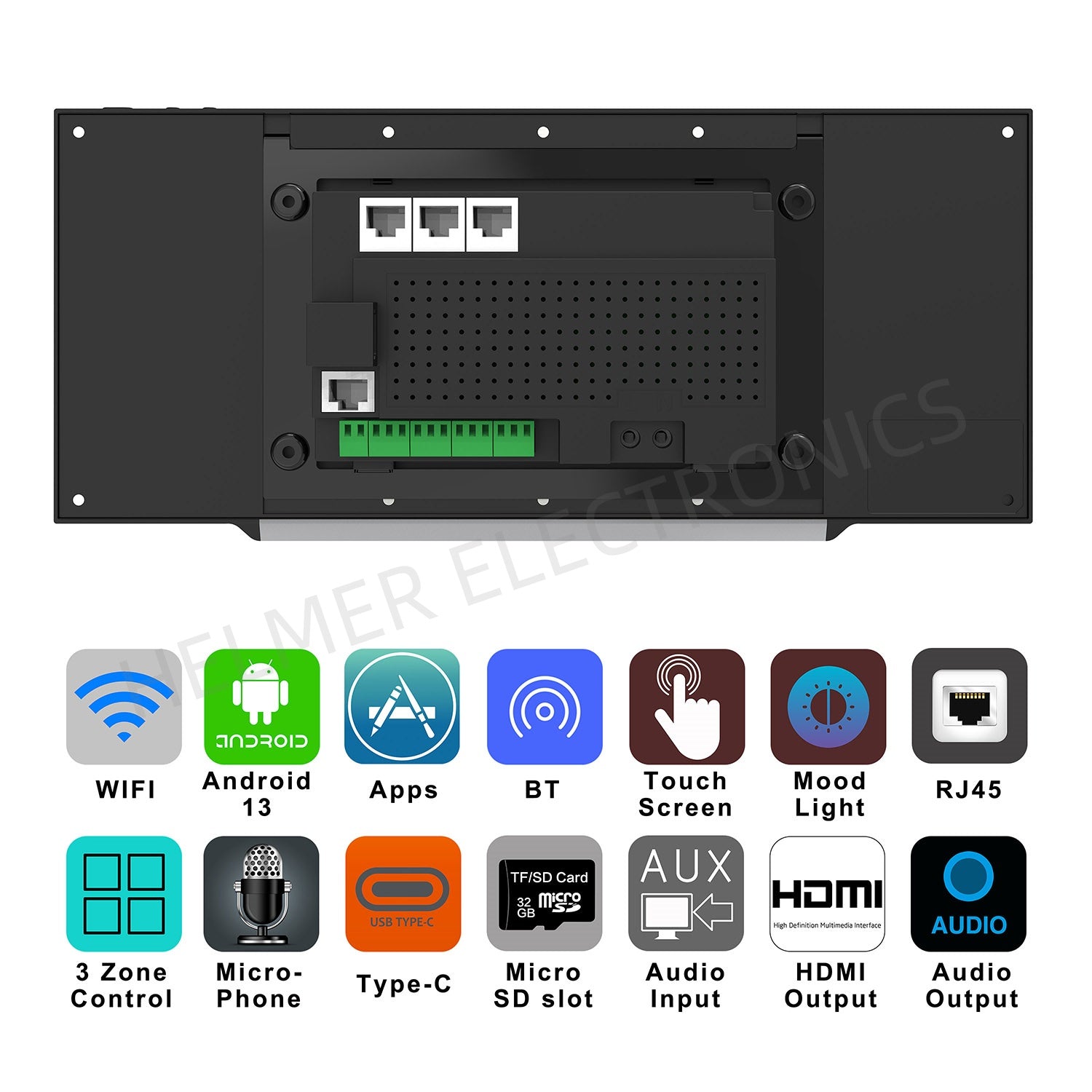

Product Features
- Stereo Amplifier Module (6 x 50W) connect up to 12 speakers
- 3 Zone music player, can play different music for 3 zones or synchronize to play same music.

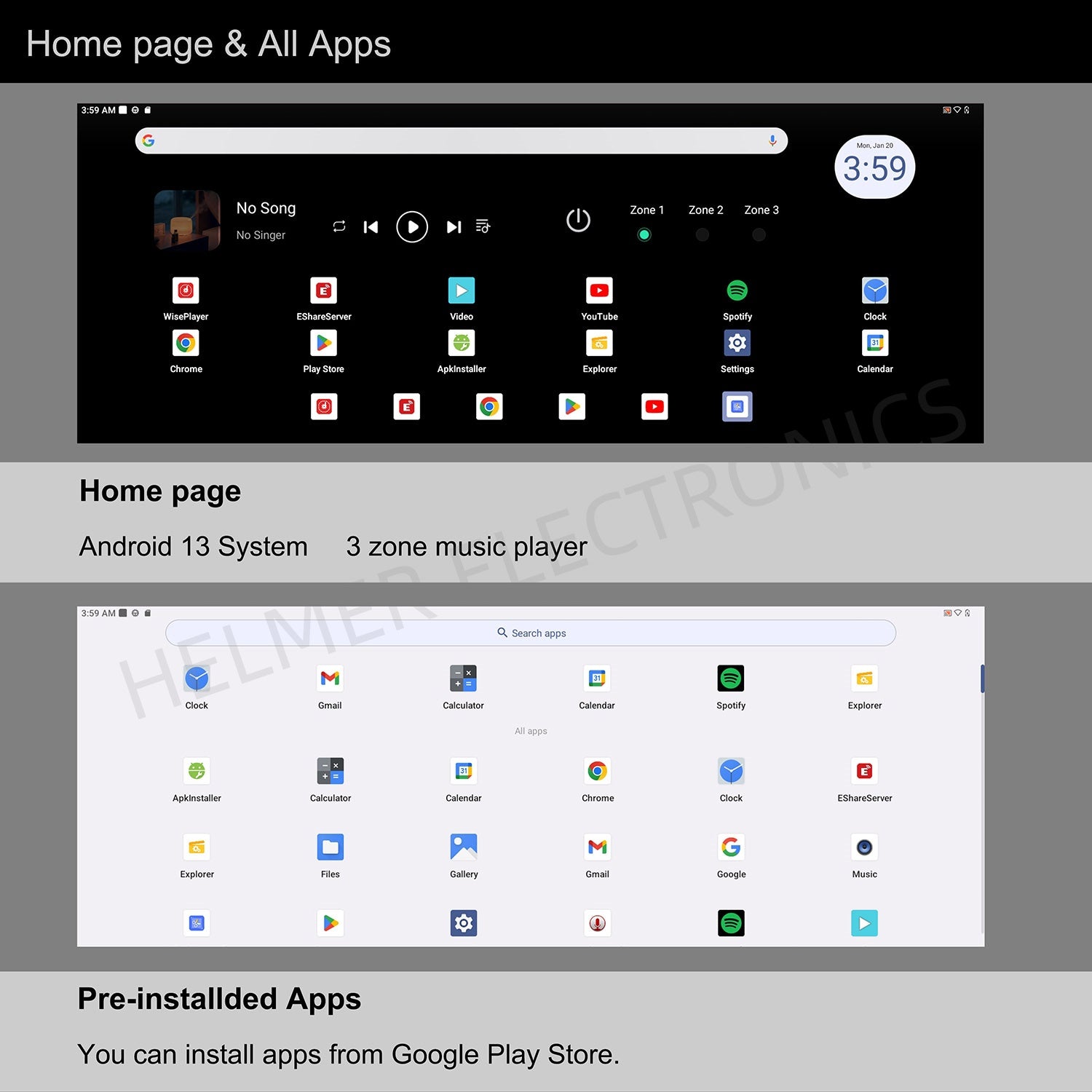

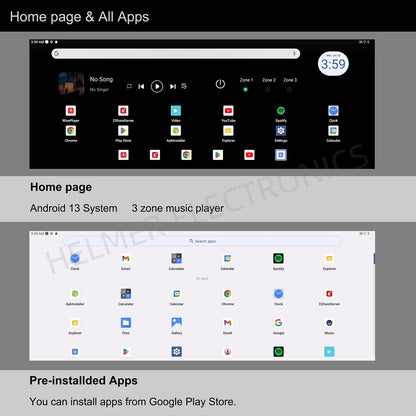

- Android System 13
- Built-in WI-FI module
- RJ45 socket for internet connection
- Bluetooth-compatible for wireless audio input of smartphones, pad etc
- Bluetooth-compatible for wireless speaker
- 1 x HDMI Output(support 4K)
- 2 x built in mini-microphone
- 1 x Wired Audio Input (on rear PCB)

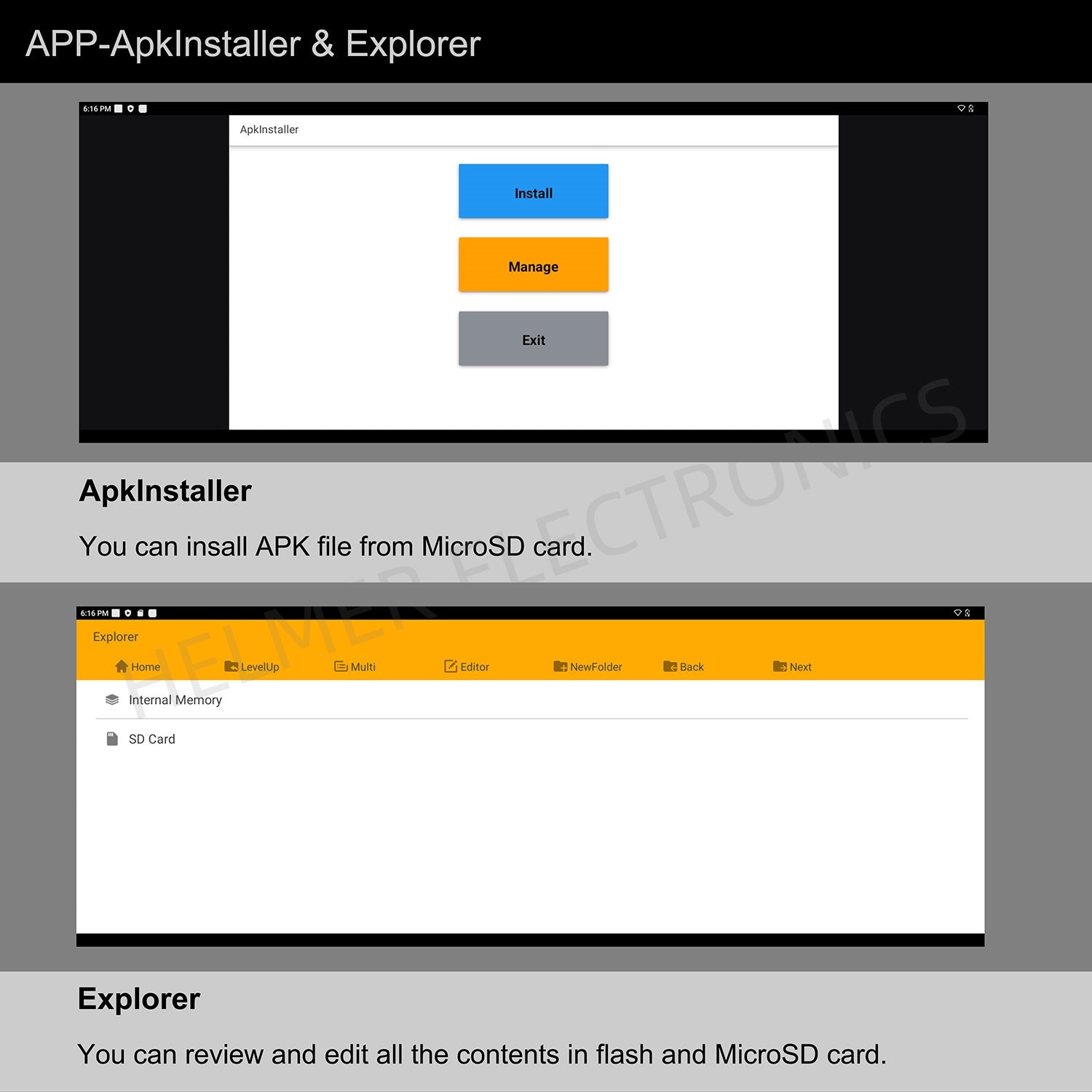

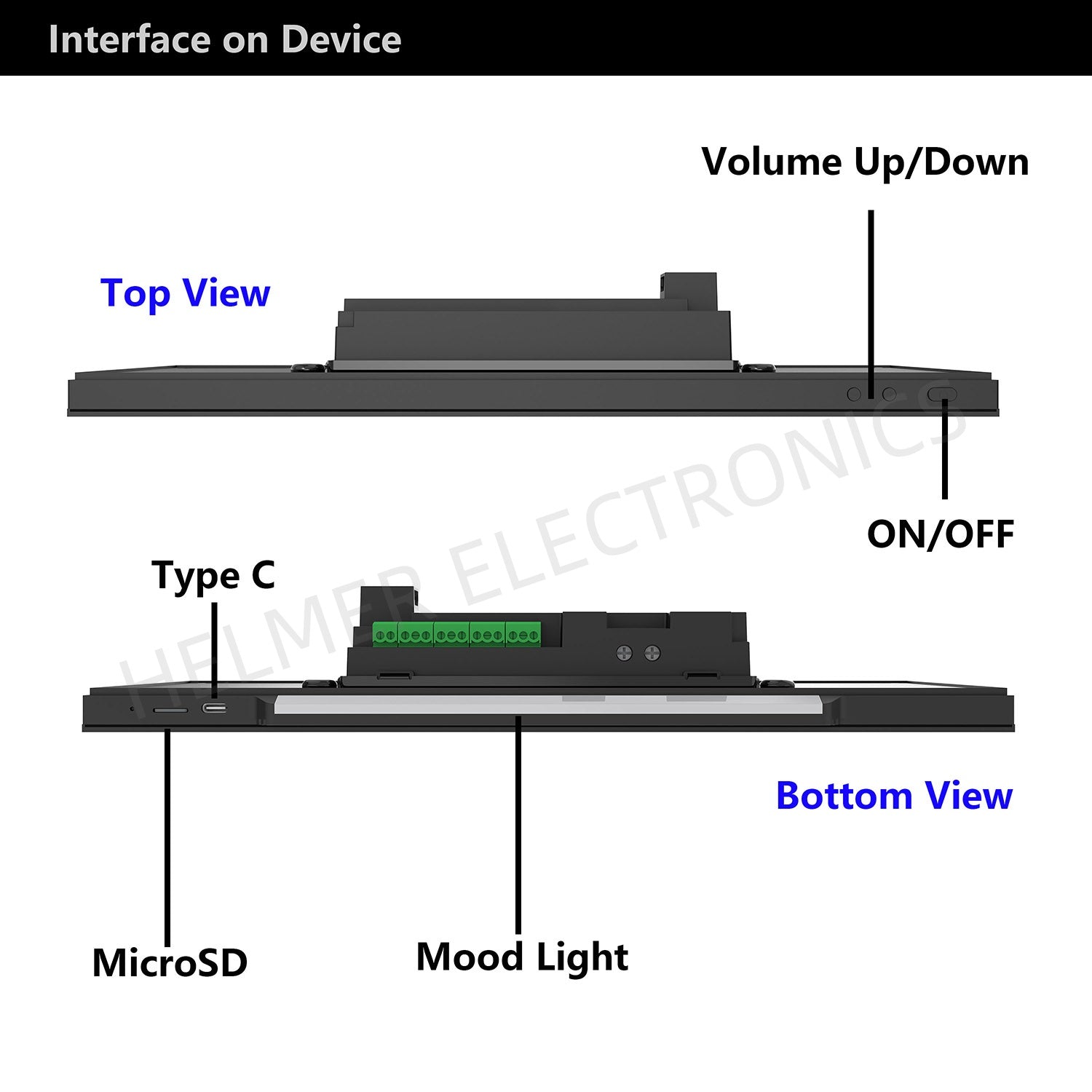

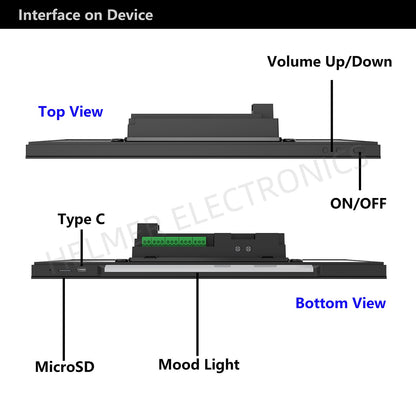

- USB &MicroSD card player (at bottom of unit)
- 1x Wired Audio Output (on rear PCB)
- Photo album/Music Player/Video Player/
- Time Display
- Set time to play/stop music

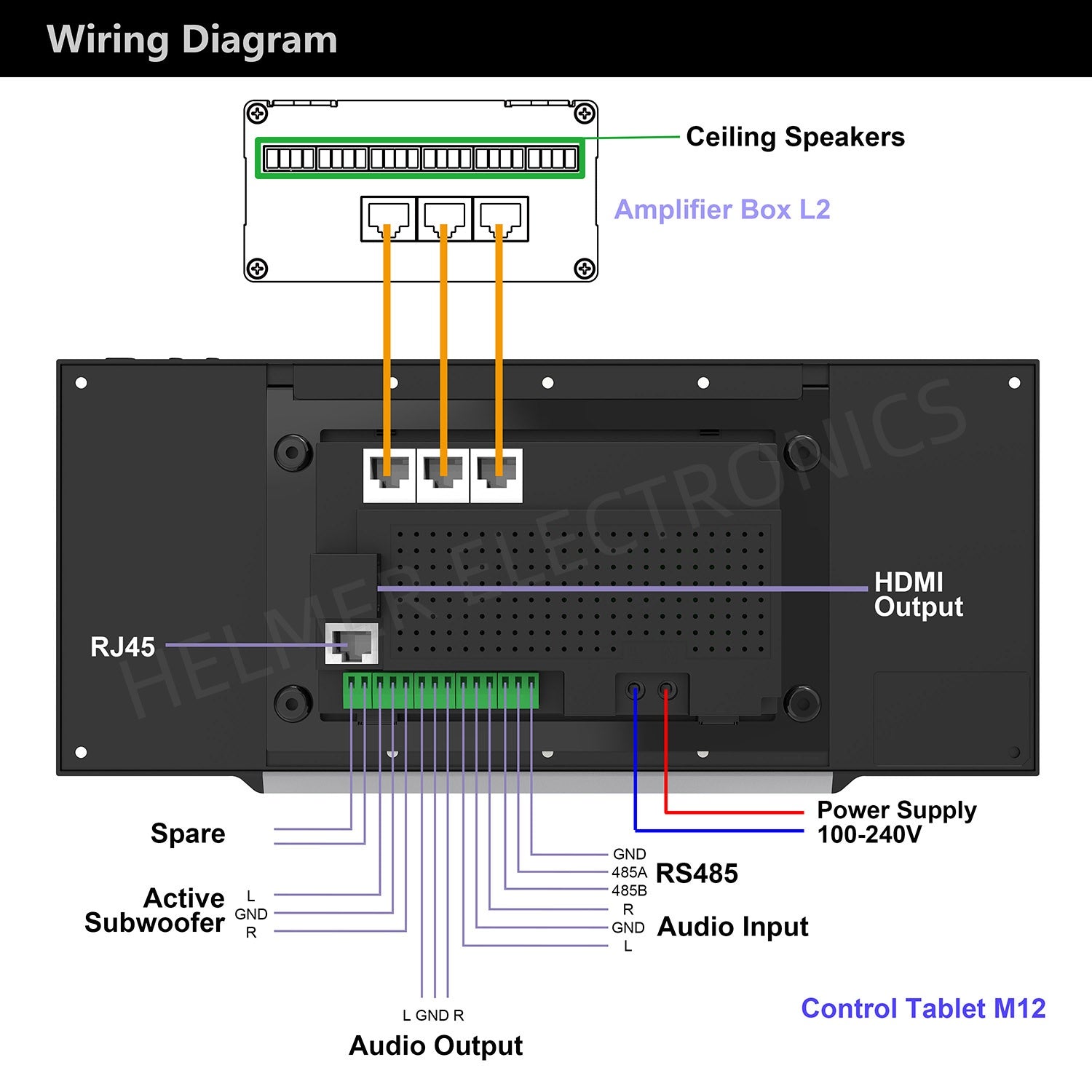

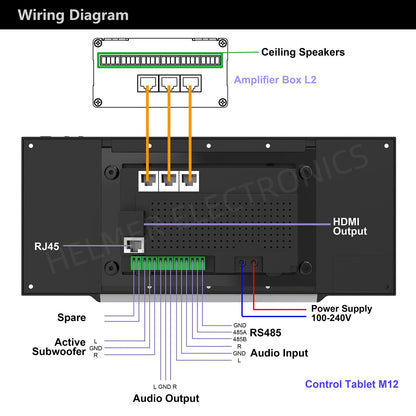

- Screw terminations on the rear of the unit for loudspeakers, power and wired line input
-
Includes in-line power supply
Technical Specifications
- 12.3" IPS Touch Screen (1920*720)
- Power Supply: AC100-240V, 50-60Hz
- Power Output: 6 x 50W @ 4Ω
- Output Impedance: 4-8Ω
- CPU: RK3568 Cortex A55 quad core, 2.0 GHz
- RAM: 4G, ROM: 32G
- Extended Memory card up to 128G (FAT32 format)
- WIFI Transmit Distance: ≤30m

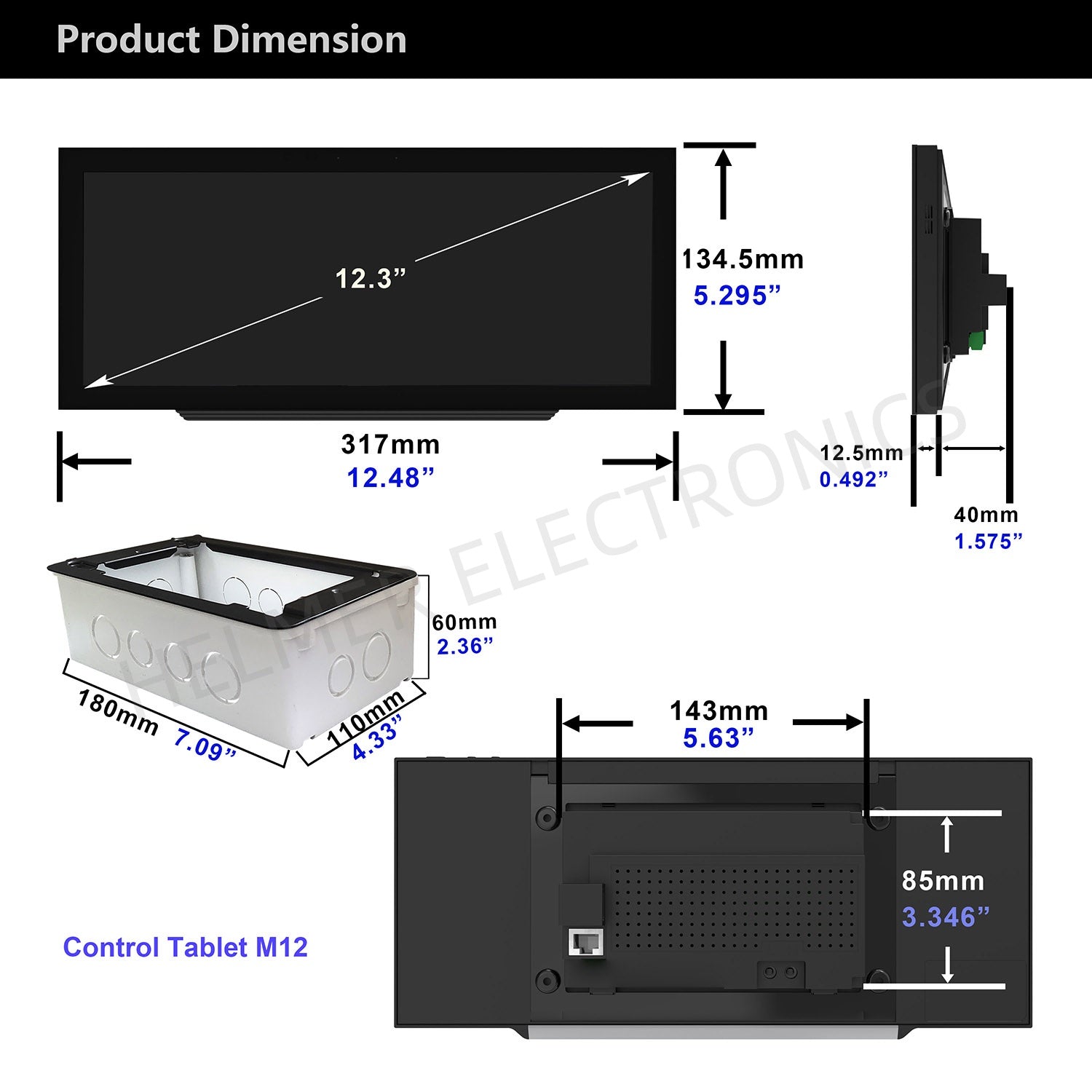

- Product Size(M12): 317 x 134.5 x 52.5mm (12.48” x 5.295” x2.067)

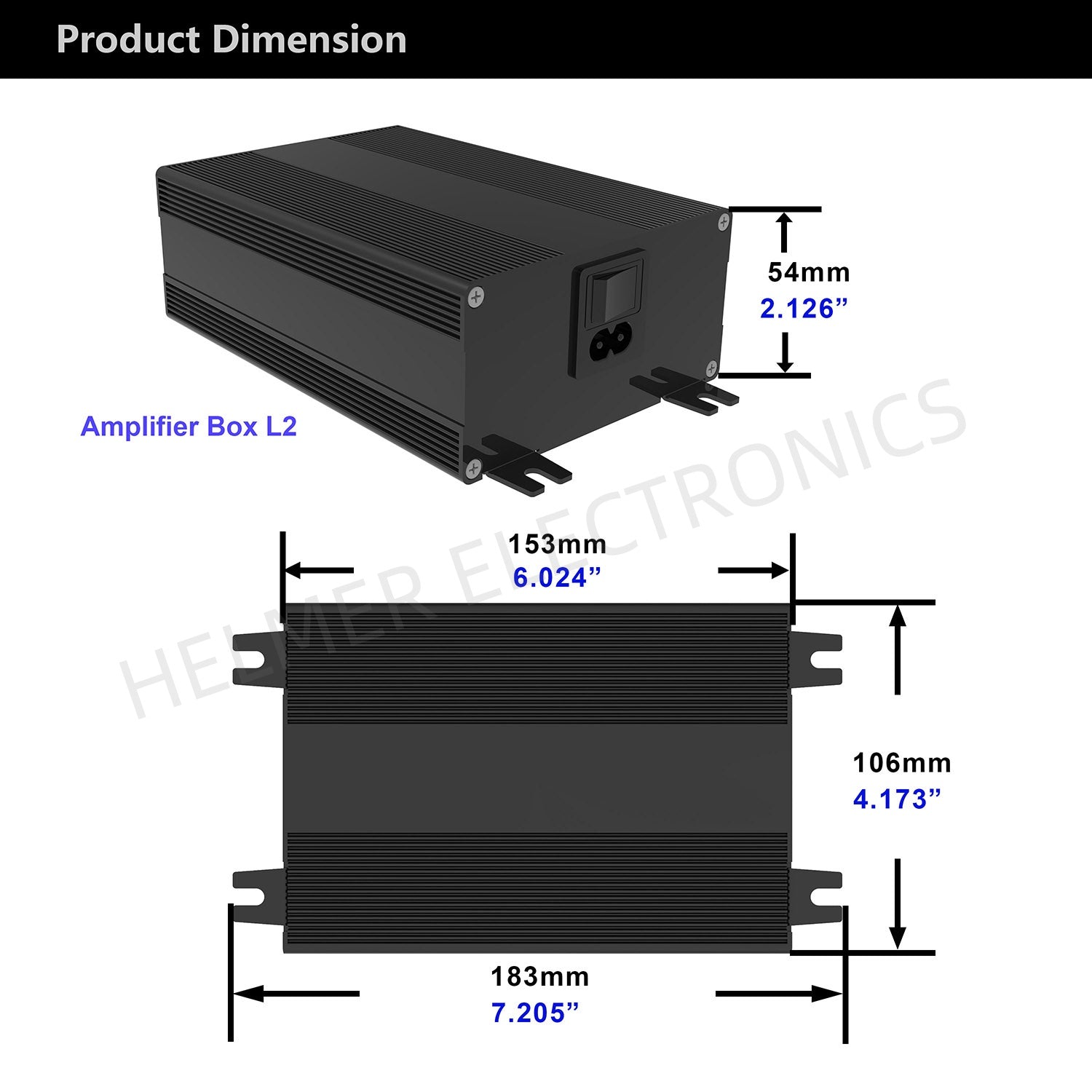

- Product Size(L2): 183 x 106 x 54mm (7.205” x 4.173” x 2.126”)

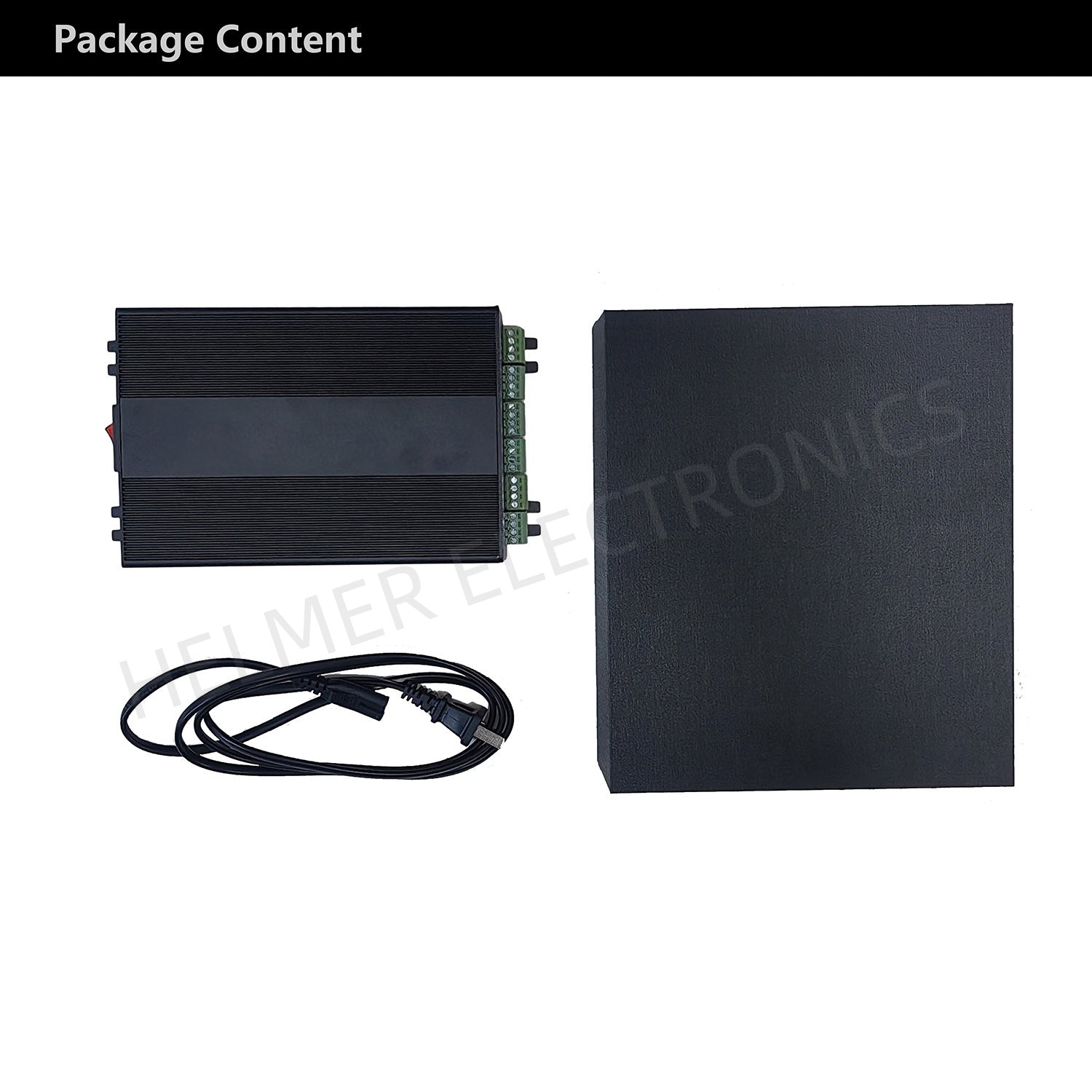

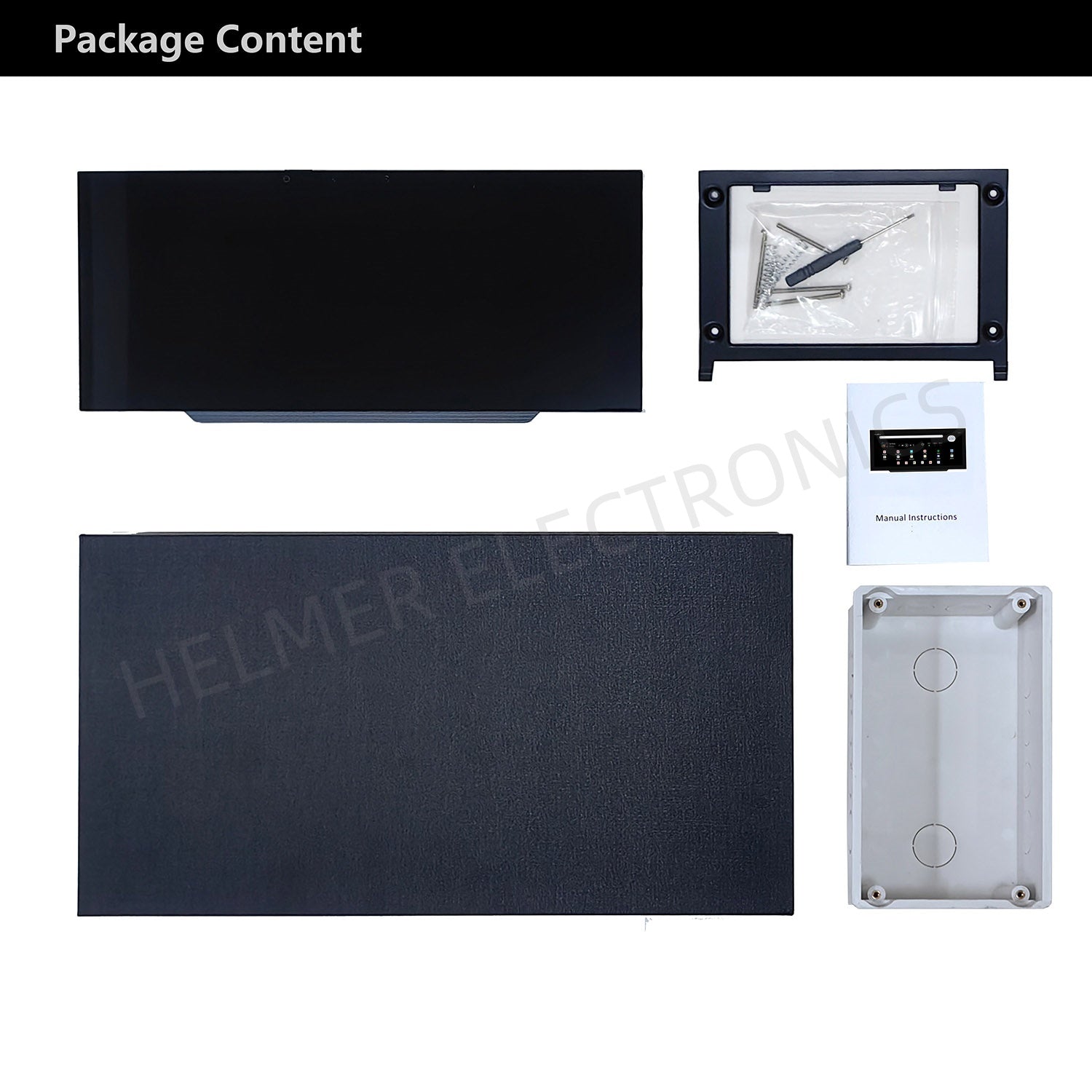

Package Contents
- 1 x M12 control tablet
- 1 x L2 amplifier
- 1 x mounting frame
- 4 x screws for mounting
- 1 x back box for in wall
- 1 x screw driver
